  • Collect sequential Raman and AFM measurements
  • Supports Dimension Icon, Dimension FastScan and Dimension Edge
  • No need to move samples between systems
  • Non-invasive coupling enables each instrument to be used independently without compromising performance
  • Supports Raman imaging on the AFM
  • Compatible with a comprehensive range of AFM modes including PeakForce TUNA™ for electrical characterization and PeakForce QNM® for quantitative nanomechanical mapping


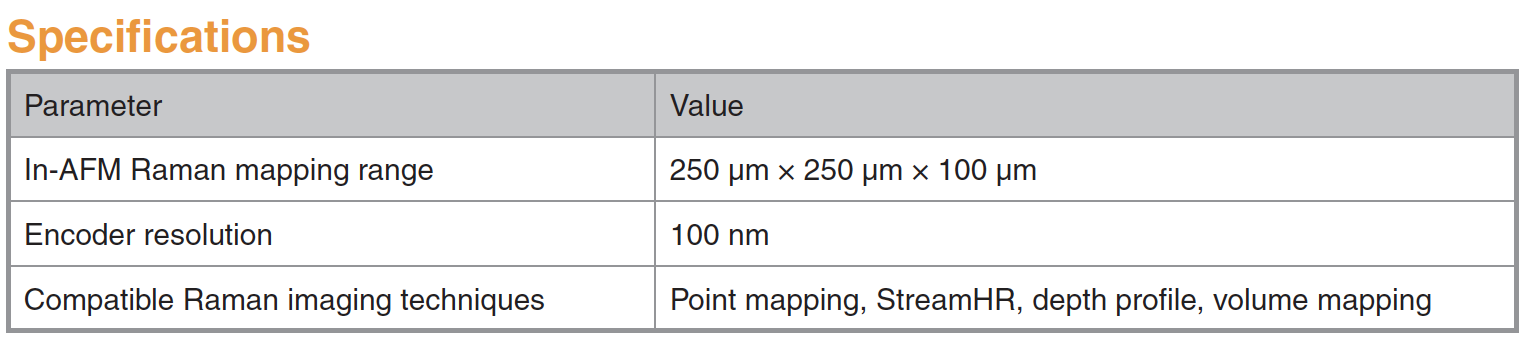

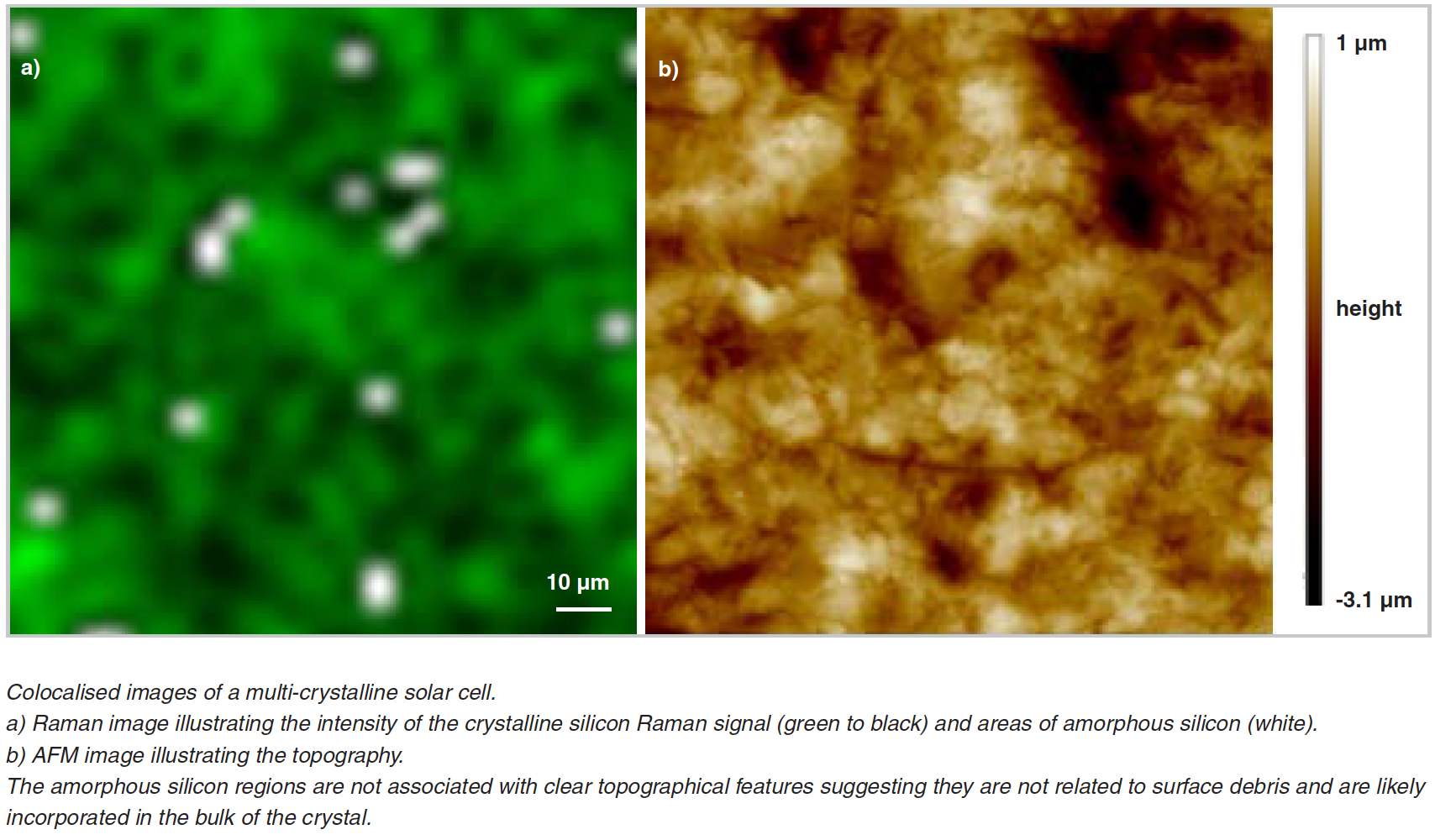

You can combine the power of inVia with scanning probe microscopes (SPMs and AFMs) to investigate the composition, structure and properties of materials at nanometre scales.

The integration of the inVia confocal Raman microscope with the Dimension series AFMs combines industry leading instruments to provide a solution that gives the best possible performance:

Brings together the complementary techniques of Raman spectroscopy and atomic force microscopy

Provides vital information on the chemical composition of a sample in conjunction with topographic, nano-mechanical and electronic properties


Choose the best system

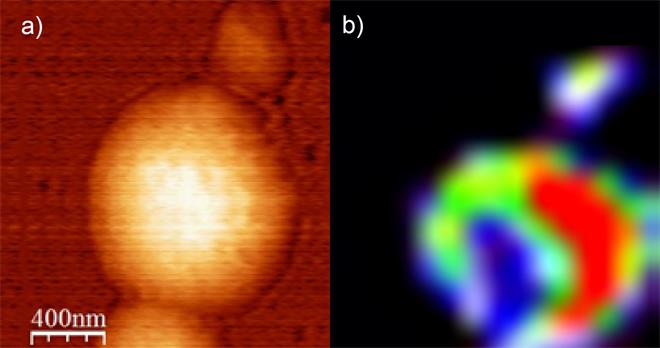

AFM topography image (A) and TERS image (B) of carbon nanotubes using SPF/AFM Raman

The inVia is incredibly flexible; Renishaw can directly couple it to a wide range of AFMs and SPMs from vendors such as:

  • Bruker Nano Surfaces
  • Nanonics
  • NT-MDT
  • JPK
  • Park
  • Nanosurf

Choose the best SPM/AFM for your needs.



TERS: tip-enhanced Raman scattering

Selected inVia-AFM systems can perform tip enhanced Raman scattering (TERS). This exciting technique uses a sharp plasmonic tip to obtain chemical information at the nanometre scale.

TERS mapping complements StreamLine™ and StreamHR™, giving you the flexibility to study your samples at whichever resolution you like.

Maximum efficiency

Renishaw’s specially designed flexible coupling arm can be used to optically integrate inVia to SPM/AFMs. It uses mirrors to direct the light, providing a higher efficiency than fibre optic coupling. You can get your spectra faster, and with higher signal-to-noise.

Alignment is easy. All combined systems offer an inbuilt video with white light illumination so you can clearly see both the probe tip and the Raman laser spot together—critical for TERS work.

Same location, same time

You can have confidence in your data. You can simultaneously acquire Raman and AFM data from the same point on the sample without having to move it. This ensures that your data are consistent, even if your sample is changing with time.

One combined system

Analysis is co-localised; you don’t have to move your sample between systems and then laboriously hunt to find the same point of interest.

Two users can operate the inVia and SPM/AFM independently and simultaneously, without any compromise in the performance of either. You have a Raman system, an SPM/AFM system and a combined Raman-SPM/AFM system.

Selecting the best system

Renishaw’s SPM experts are happy to discuss your specific requirements and recommend the best way to integrate inVia to your choice of SPM/AFM system. Please contact us, and discover how this technology can extend your understanding of the nanoscale.
