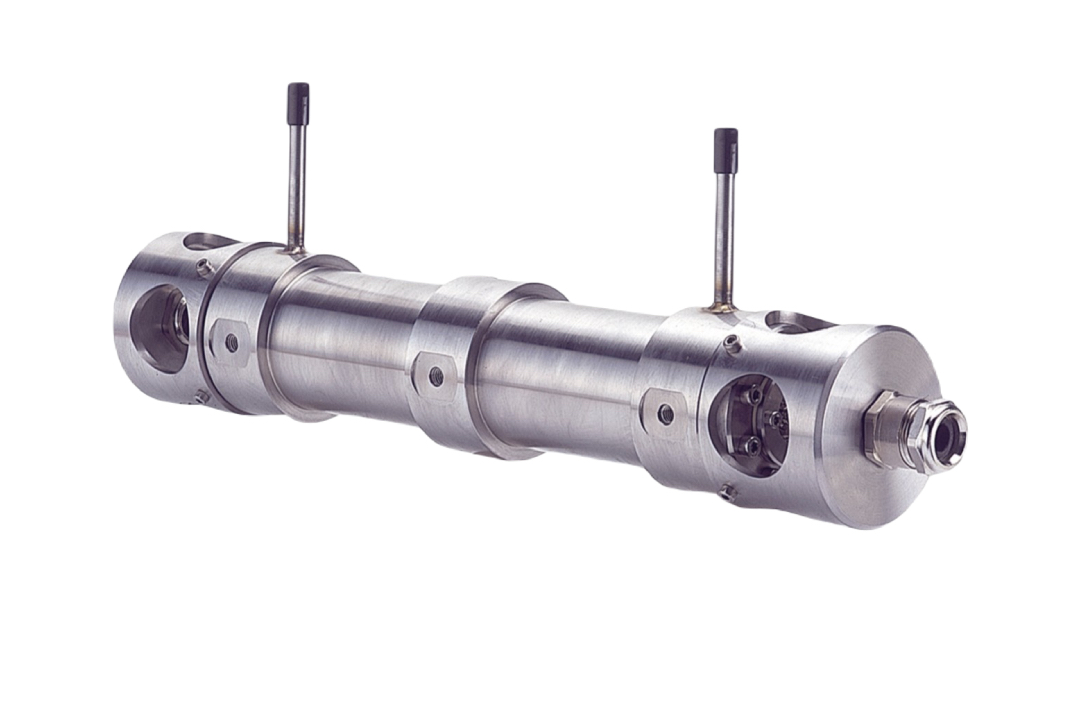

Typhoon | NIR Vapour Flow Cell

Typhoon NIR Vapour Flow Cell is designed for the online measurement of the spectra of process gases and vapours using fiber optics. The Typhoon gas cell is installed on fast by-pass loops directly on the plant, which allows for real-time remote monitoring and control. Superior optical design, state-of-the-art sealing technology and rugged construction are combined with precision manufacturing to ensure many years of reliable, high performance.

SKU: Typhoon | NIR Process Flow Cell Categories: , , ,
Request a Quote



Introducing the Typhoon | NIR Vapour Flow Cell

Typhoon NIR Process Flow Cell is designed for the online measurement of the spectra of process gases and vapours using fiber optics. The Typhoon gas cell is installed on fast by-pass loops directly on the plant, which allows for real-time remote monitoring and control. Superior optical design, state-of-the-art sealing technology and rugged construction are combined with precision manufacturing to ensure many years of reliable, high performance.

The cell is easily trace-heated and insulated for use at elevated temperatures up to as high as 280°C and pressures up to 1500psi. Cleaning ports can be added to facilitate in-situ cleaning of the windows. Additional ports can also be added to facilitate flexibility in the choice of flow arrangement.

The cell is available with standard pathlengths of 20cm, 30cm and 50cm but Specac can manufacture longer pathlengths if required.

Cells can be serviced at regular intervals for added peace of mind and cost-saving efficiencies.

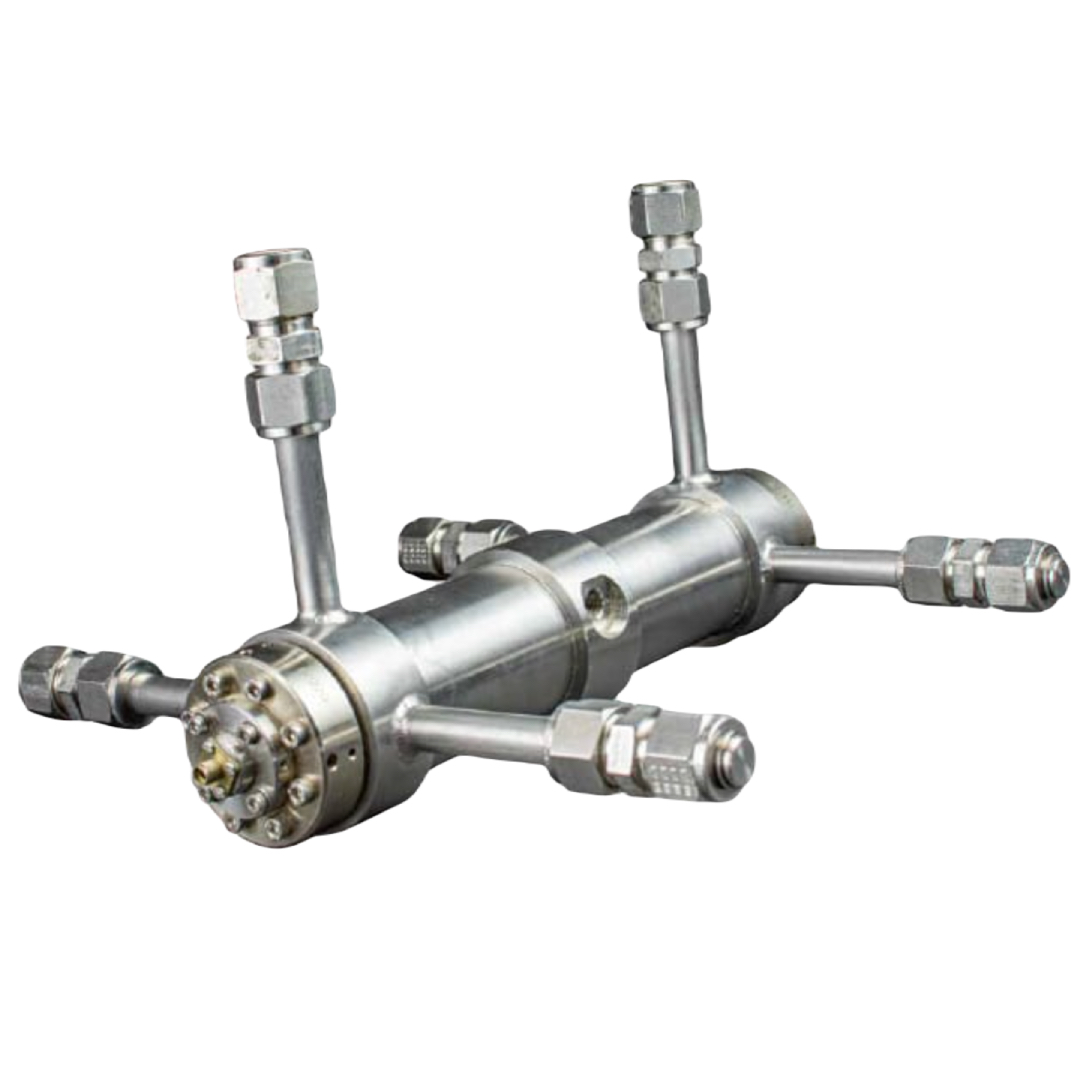

Typhoon | NIR Vapour Flow Cell



Typhoon | NIR Vapour Flow Cell

Key Features

Typhoon – NIR Vapour Phase Process Flow Cell comes with some great features as follows:

  1. Pipe-Mounted fittings: High quality ¼” pipe-mounted fittings.
  2. Versatility in design and configuration: The Typhoon cell can be configured with different body materials, pathlengths and seal options explicitly tailored to your requirements.
  3. UV/VIS and NIR modes of operation: By choosing between UV Quartz and Sapphire windows, the cell is flexible enough to be used in either UV/VIS or NIR mode of operation.
  4. Additional features available when required: With the option to add features such as cleaning ports the cell can be easily cleaned in-situ thus reducing downtime.
  5. Factory aligned optics: The cell is factory aligned during manufacturing to ensure optimum stability and sensitivity.





Key Benefits

Typhoon – NIR Vapour Phase Process Flow Cell:

  • Allows remote process monitoring and control.
  • Improves process efficiency leading to cost savings.
  • Reproducible and safe sampling.
  • Quality of spectra obtained is of the highest quality.
  • The gas/vapour passing through the Typhoon cell is analysed by light passing through Sapphire or Quartz windows. The light is brought to and from the remote process cell environment via connectivity to fiber optics. Depending on the types of fibers and spectral range of analysis, the fiber connections to a spectrometer may be as distant as a kilometer away from the actual sampling and installation point of the flow cell.
  • Various sealing options are suitable for extreme conditions.
  • Fast and easy installation.
  • High quality, robust design.
  • Cost savings due to process optimisation.
  • Reproducible sampling.
  • Allows process control and monitoring.
  • Allows sampling of hazardous process streams in complete safety.




Typhoon | NIR Vapour Flow Cell


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

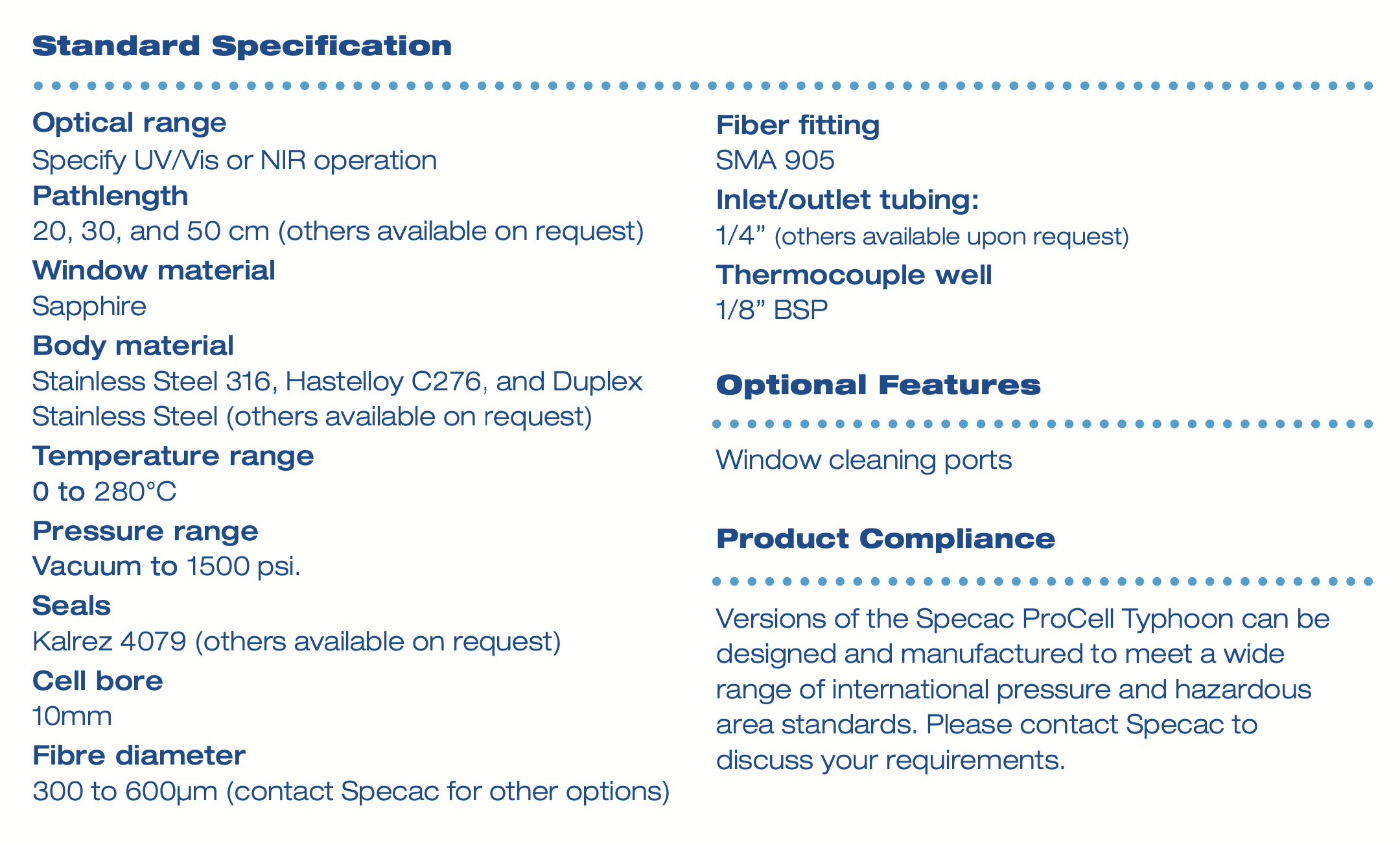

Specifications

Specifications: Typhoon - NIR Process Flow Cell
