  • Renishaw’s inVia Raman microscope can incorporate fluorescence lifetime imaging microscopy (FLIM) to study material structure and composition.
  • FLIM integrated with the inVia Raman microscope enables the creation of spatial images that represent the fluorescence lifetime.
  • FLIM images can be correlated pixel by pixel with corresponding Raman images on the same coordinate system, allowing for direct correlation.
  • FLIM imaging is faster than Raman imaging, making it useful for identifying regions of interest for subsequent Raman measurements.
  • FLIM has applications in cell biology research, environmental sensing, monitoring molecular interactions, and identifying specific fluorophores.
SKU: Renishaw - Fluorescence Lifetime Imaging Microscopy (FLIM) Categories: , , , , ,



Description

Performing FLIM using the inViaconfocal Raman microscope

Fluorescent materials have a characteristic lifetime in which fluorescence is emitted after light interacts with the sample. Imaging based on the measurement of this lifetime, called florescence lifetime imaging microscopy (FLIM), can be incorporated into Renishaw’s inVia Raman microscope to study the structure and composition of a material.

FLIM can be combined with the inVia Raman microscope to obtain a spatial image of the fluorescence lifetime. FLIM images can be generated alongside corresponding Raman images on the same coordinate system. This enables easy and direct pixel to pixel correlation. FLIM images can be obtained at least 10x faster than Raman images; this makes it an ideal technique to identify regions of interest for subsequent Raman measurement. FLIM is particularly applicable to research in cell biology and can be used for environmental sensing, monitoring molecular interactions, and fluorophore identification.



What is FLIM?

After light interacts with a fluorophore, the fluorescence lifetime is measured. The fluorescence lifetime is the characteristic time a fluorophore remains in an excited electronic state before returning to the ground state by emitting a photon. Imaging based on the measurement of this lifetime is called fluorescence lifetime imaging microscopy (FLIM).





The lifetime of a fluorescence decay is sensitive to the molecular environment and resulting changes in molecular conformation. The FLIM technique can be used to study a range of properties:

  • pH/ion/oxygen concentration
  • molecular binding
  • proximity of energy acceptors

FLIM has the following advantages over intensity-based measurements: FLIM is independent of fluorophore concentration; and FLIM is an internally self-referenced measurement, so it does not require calibration to account for instrument configuration.

FLIM is particularly applicable to research in cell biology and can be used for environmental sensing, monitoring molecular interactions, cancer diagnosis, live cell imaging and fluorophore identification.



Why correlate FLIM with Raman?

Correlative FLIM and Raman microscopy are complementary methods for label-free imaging of biological cells and tissue sections. FLIM images provide insight into molecular interactions and can be obtained at least 10x faster than Raman images. This makes it an ideal technique to identify regions of interest for subsequent chemical and structural characterisation by Raman imaging.

Our solution

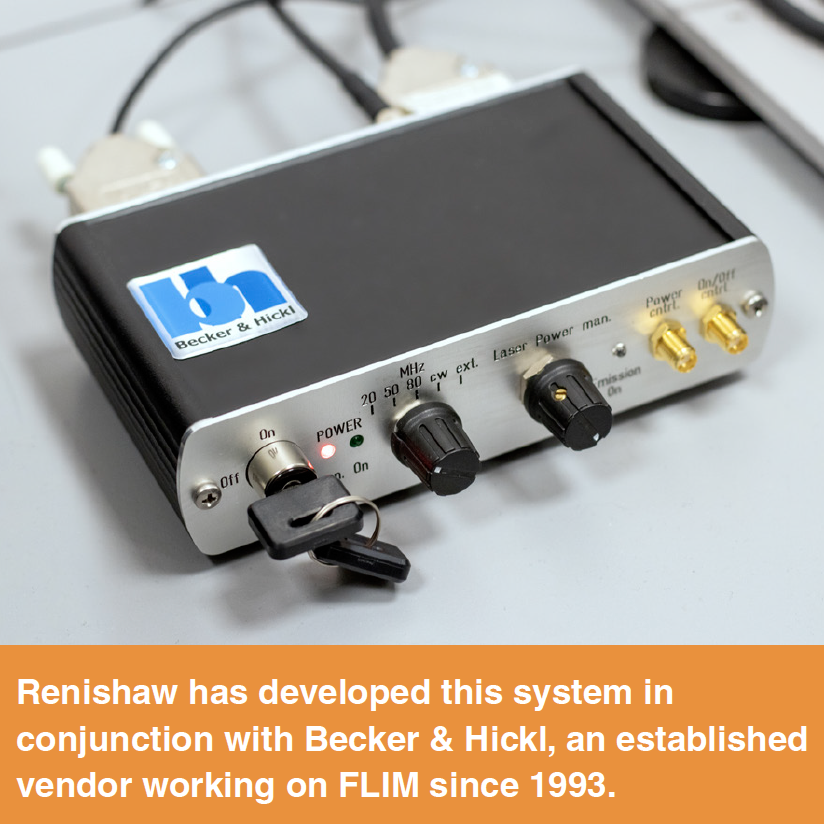

Renishaw has partnered with Becker & Hickl to produce a completely integrated time-correlated single photon counting (TCSPC) FLIM Raman microscope. TCSPC FLIM measures the time between incident light on the sample and the emitted light’s arrival at the detector. A 405 nm pulsed laser (<40 ps pulse width) is used to stimulate photon emission/fluorescence. (Other laser wavelengths are available on request.) The emitted fluorescence light is detected using a single-photon avalanche diode (SPAD) detector (timing resolution of <40 ps).

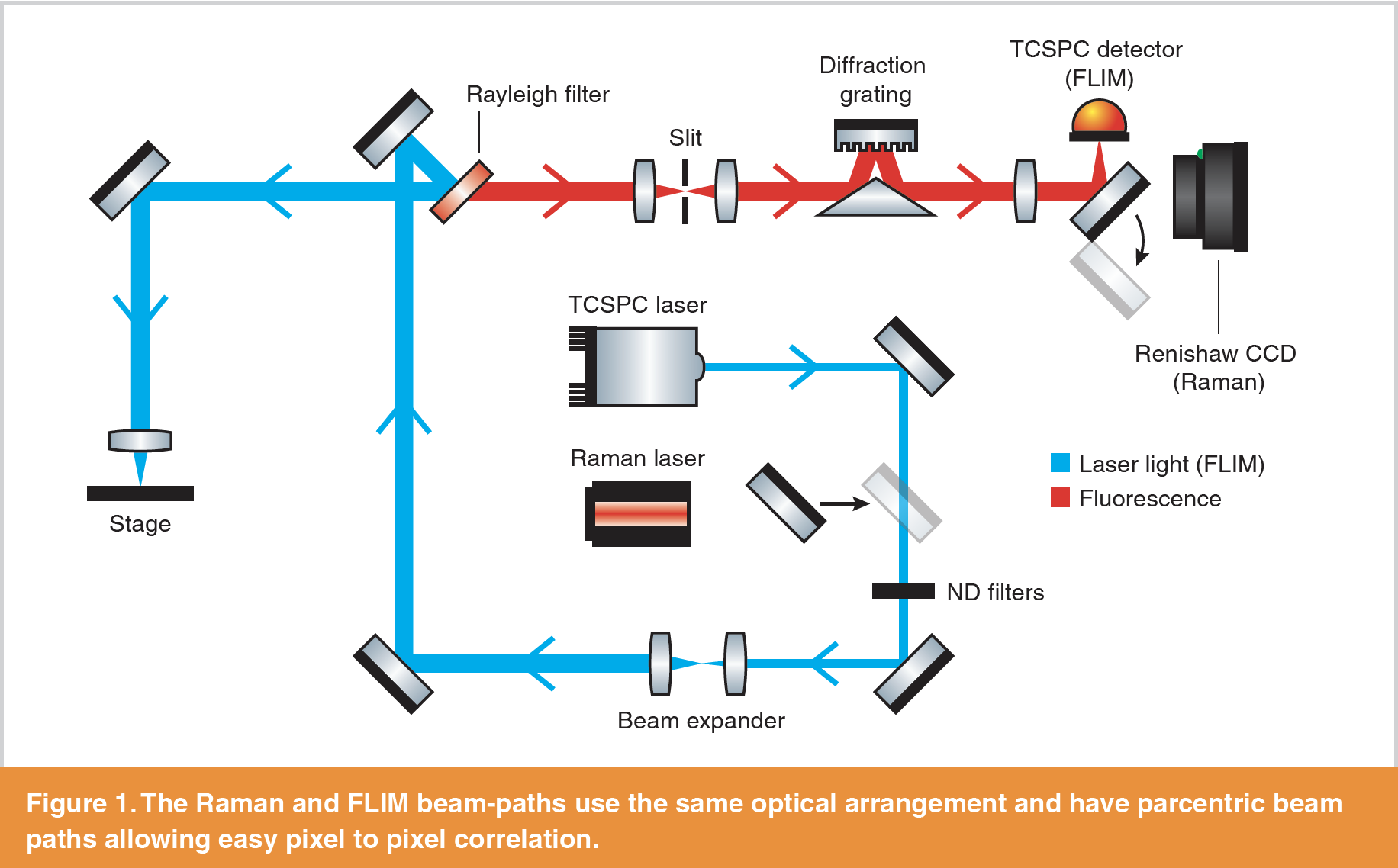

The FLIM image is then created by conducting TCSPC at multiple points on the sample. Our FLIM Raman system combines Raman mapping and FLIM on the same Renishaw MS30 stage. This enables easy pixey-by-pixel correlation of data using the same measurement co-ordinates.

For FLIM data analysis, comprehensive TCSPC FLIM software from Becker & Hickl is included with multi exponential, incomplete and shifted component analysis models. The software also includes proprietary phasor analysis to distinguish lifetime populations. Fluorescence lifetime and Raman images can be directly overlaid with no requirement for additional image correlation.



Integrating FLIM to the inVia Raman microscope
