Introducing the HPT-300 & HPT-500 | Plasma Surface Treatment

The HPT-300 & HPT-500 are microprocessor controlled benchtop plasma treatment systems which are ideally suited to surface activation, cleaning and modification of a wide range of materials including polymers, metals, glass and ceramics.

Available in single or dual gas inlet versions and with onboard gas mixing manifold, the HPT-300/500 systems are able to handle a wide range of gases for optimised treatments, including air, oxygen, hydrogen, argon, nitrogen and many others.

Key Features

• Advanced Microprocessor Control: The HPT-300 & HPT-500 systems boast state-of-the-art microprocessor control, ensuring precise and consistent plasma treatment.
• Gas Versatility: Equipped with single or dual gas inlets and an onboard gas mixing manifold, these systems can handle a broad range of gases, including air, oxygen, hydrogen, argon, nitrogen, and more, tailoring treatments to your exact needs.
• Vapour Delivery: An optional vapour delivery inlet extends functionality to liquid precursors, expanding your material treatment options.
• Corrosion-Resistant Option: Opt for the corrosion-resistant version to address specific material treatments with confidence.
• Versatile Material Compatibility: Our systems can expertly handle a diverse array of materials, including polymers like PEEK, metals, ceramics, and even glass and optical devices.
• Intuitive TFT Touchscreen: Each system features a vibrant 5.7-inch color touchscreen interface, making operation user-friendly. Set variables like gas flow rate, pressure, power level, and plasma processing time effortlessly, then store them for one-touch execution.
• Status Display & Audible Alerts: Stay informed at every step of the process with a handy status display and end-of-process audible alarm.
• Spacious Process Chambers: The HPT-300 features a 200mm x 200mm plasma process chamber, while the HPT-500 boasts a 240 x 240mm chamber, allowing treatment of larger parts or multiple smaller parts per batch. Both are constructed with vacuum-compatible materials for precision.
• High Stability HPS Plasma Generator: Our proprietary plasma generator offers continuous variability across the 0-300W power range, ensuring precise control when processing delicate materials.
• Modular Gas Inlet: The base model features a single gas inlet, with the option to add a second gas or vapor delivery inlet in the future, providing adaptability to evolving requirements without costly reconfiguration.
• Reliable & Repeatable: Precision digital mass flow controllers and an integrated pressure gauge ensure unparalleled reliability and repeatability by eliminating common errors in gas flow and gas type settings, enhancing the user experience.

Key Benefits

• Compact Benchtop Units: Save space with these benchtop systems that deliver big results.
• User-Friendly: The TFT touchscreen interface is intuitive, making operation a breeze.
• Recipe Storage: Store treatment parameters for quick and repeatable processes.
• Fast Treatment Times: Complete tasks efficiently without compromising quality.
• Precision: Achieve exacting results with fine control over treatment variables.
• Repeatable: Count on consistent, reproducible outcomes for your applications.
• No Hazardous Emissions: Our systems are designed with safety in mind, ensuring no hazardous emissions during operation.

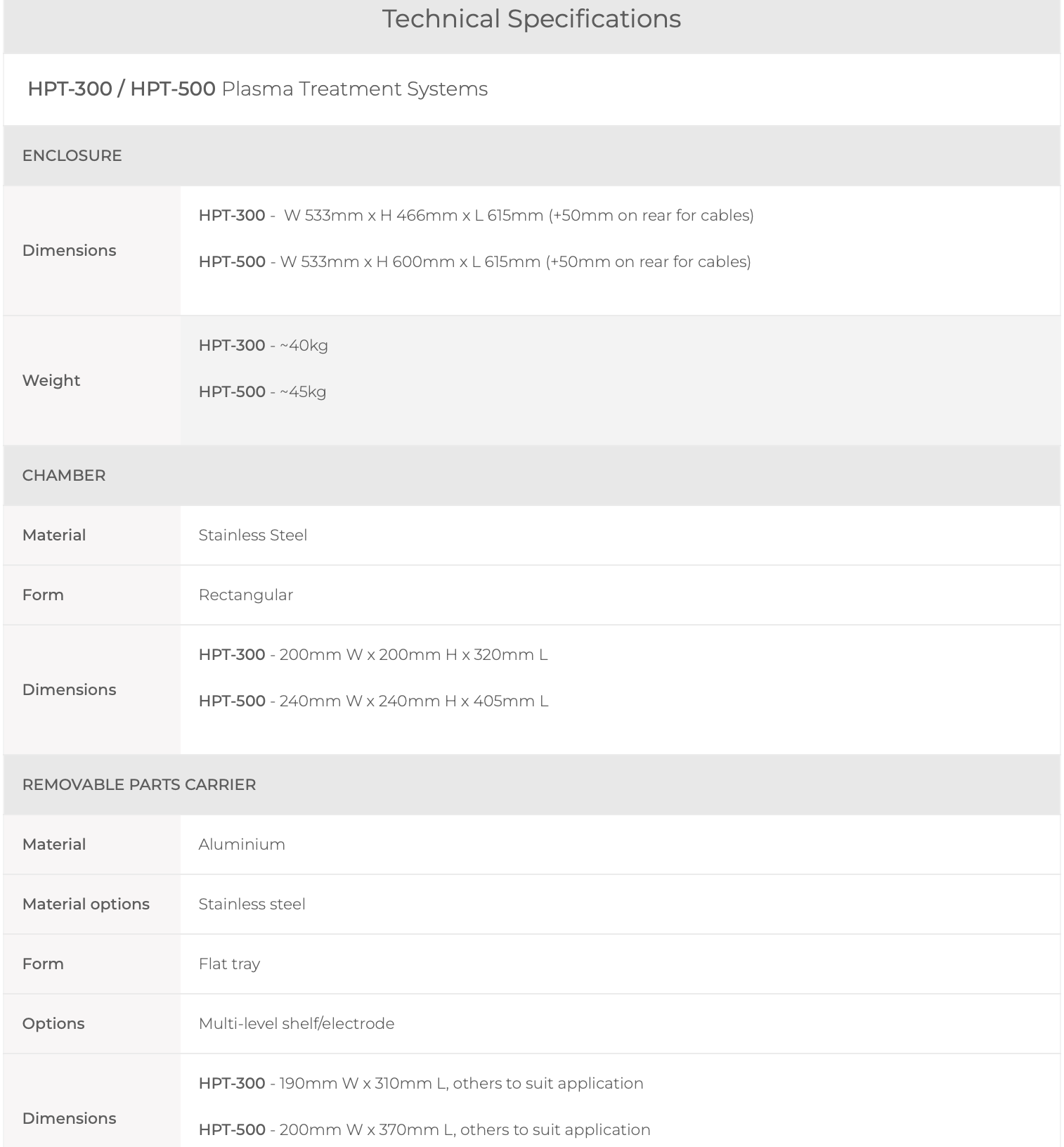

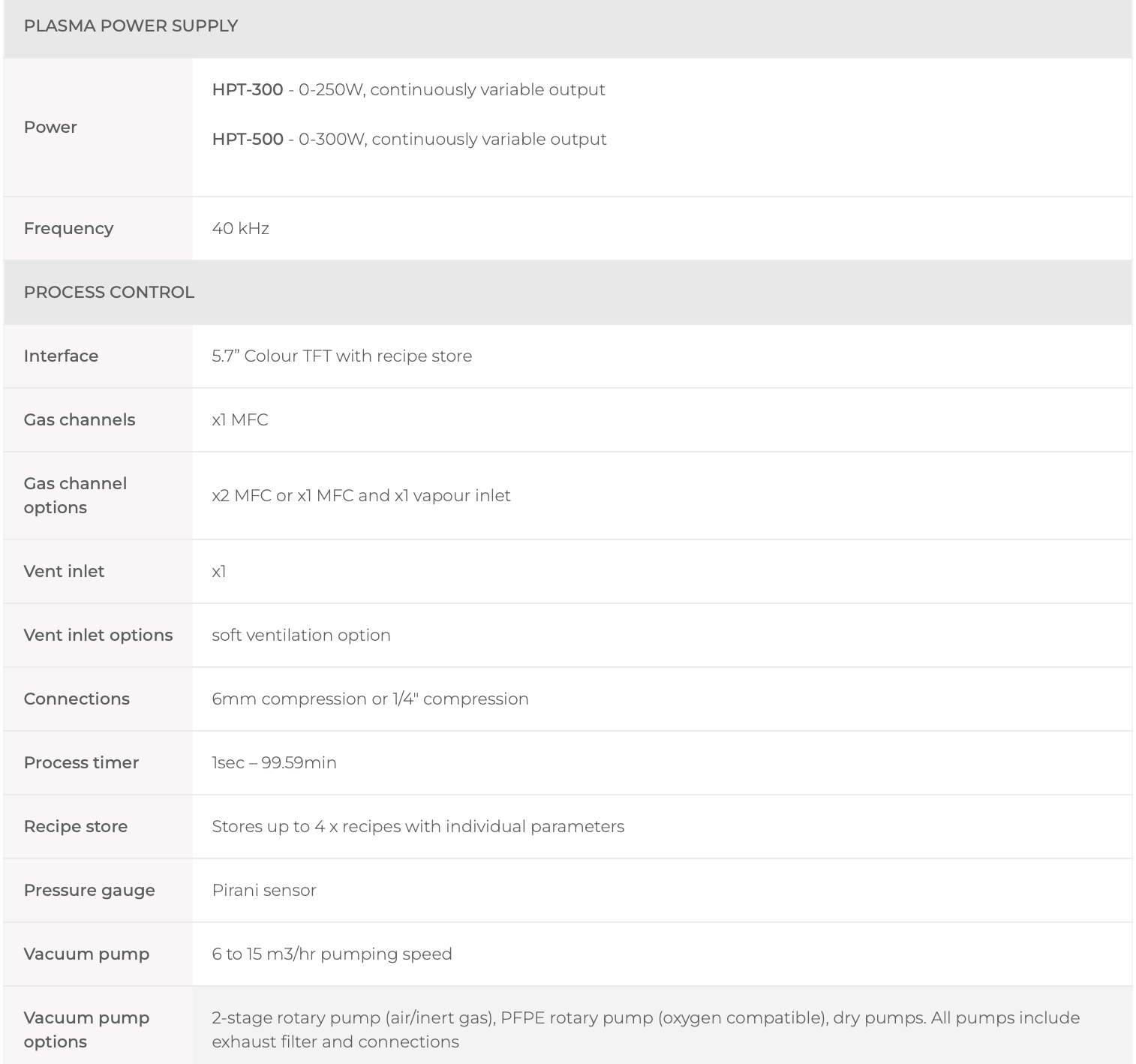

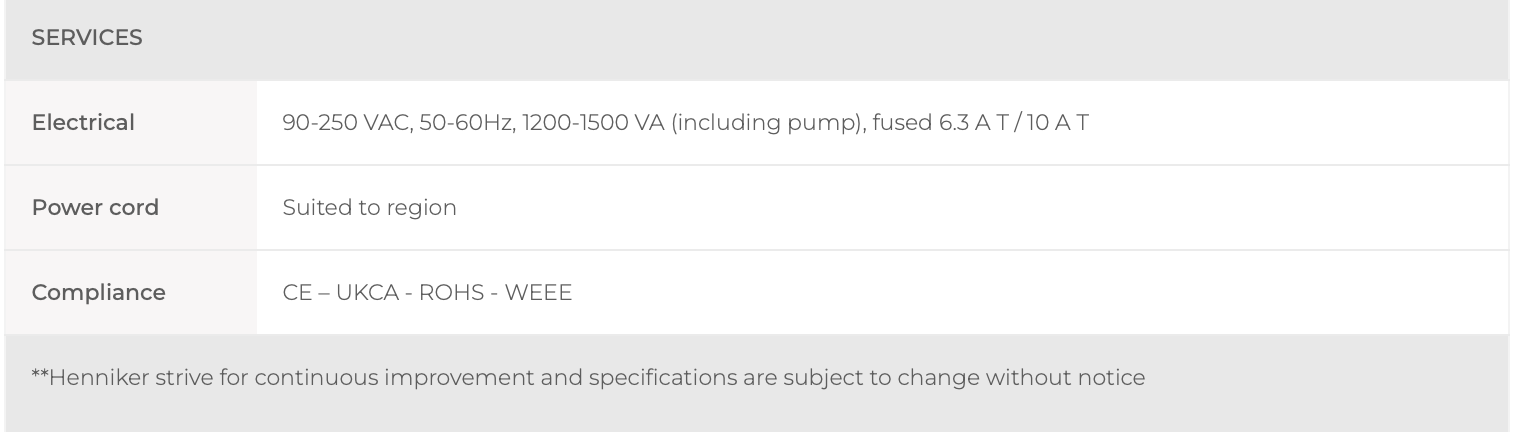

Specifications
