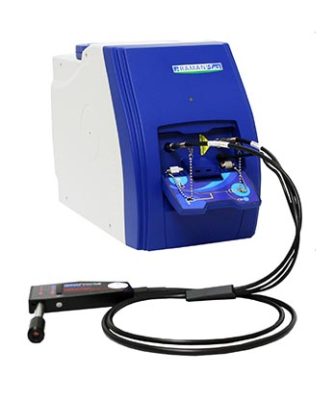

B&W Tek i-Raman® Plus Highly Sensitive, High Resolution Fiber Optic Raman System

  • High quantum efficiency CCD array detector
  • Provides an intuitive user interface, intelligent algorithms, and efficient matrix calculation power
  • Patented CleanLaze® Technology for Laser Stabilization
  • Rayleigh line cut-off at 150 cm-1 (65 cm-1 Option Available)
  • Fiber Optic Coupling for Convenient Sampling
  • 532nm and 785nm Excitation Configurations Available



Request a Quote



Description


The i-Raman® Plus is part of the award winning line of i-Raman portable Raman spectrometers powered by innovative smart spectrometer technology. The system’s lightweight design, low power consumption, and flexible sampling accessories provide research grade Raman identification and quantitative analysis in the lab and field.

Specifications

Lasers
532nm Excitation >40mw at laser port (50mW max)
785nm Excitation >320 mW at laser port (420 mW Max)
Laser Power Control 0 to 100%
Spectrometer Range Resolution*
BWS465-532S 150 – 4200cm-1 ~ 4.5 cm-1 @ 614 nm
BWS465-532H 150 – 3400cm-1 ~ 3.5 cm-1 @ 614 nm
BWS465-785S 150 – 3350cm-1 ~ 4.5cm-1 @ 912nm
BWS465-785H 150 – 2800cm-1 ~ 3.5cm-1 @ 912nm
Detector
Detector Type High quantum efficiency CCD Array
Pixel Number 2048 Effective Detector Elements
Effective Pixel Size 14μm x ~ 0.9 mm
CCD Cooling Temperature -2°C
Dynamic Range 50,000:1 (Typical)
Digitization Resolution 16-bit or 65,535:1
Integration Time 100ms – 30 mins
Electronics
Computer Interface USB 3.0 / 2.0
Trigger Yes (Compatible with B&W Tek Probes)
Power Options
DC Power Adaptor 12V DC @ 6.6 Amps
Battery Optional
Physical
Dimensions 6.7in x 13.1in x 9.5in (16.9cm x 33.3cm x 24.2cm)
Weight ~11.0lbs (~5.0kg)
Operating Temperature 0°C – 35°C
Storage Temperature -10°C – 60°C
Humidity 10% – 85%
*Typical Resolution Measured Using Pen Lamp Emission

SENSITIVE:
High quantum efficiency CCD array detector with deeper cooling and high dynamic range

COMPREHENSIVE:
Our comprehensive package of sampling accessories for measuring solid and liquid samples provide you the utmost utility right out of the box.

QUANTITATIVE:
Our state of the art BWIQ® Raman data analysis software package provides an intuitive user interface, intelligent algorithms, and efficient matrix calculation power, making it easy to use by both expert and novice users to develop quantitative and qualitative chemometric models.

Additional Features:
Patented CleanLaze® Technology for Laser Stabilization
Rayleigh line cut-off at 150 cm-1 (65 cm-1 Option Available)
Fiber Optic Coupling for Convenient Sampling
532nm and 785nm Excitation Configurations Available.

Download Data Sheet
