Thermo Scientific Process 16 Parallel Twin-Screw Extruders

  • Throughput range 0.4 kg/h to 20 kg/h (material dependent)
  • Segmented screw design and removable top half barrel
  • A screw length adjustment kit enables small quantity compounding
  • A fully ported barrel allows maximum flexibility for feeding and degassing
  • Contact parts selectable from three steel grades
  • An easy-to-operate touch screen with integrated feeder control
  • Broad accessory portfolio, e.g.. dies, feeders, water bath, conveyor belt, strand or die face pelletizers, haul off, and spooler
  • The granulation kit enables customers to switch between melt extrusion and wet/melt granulation
  • Geometrically scalable screw and barrel design across portfolio



Request a Quote

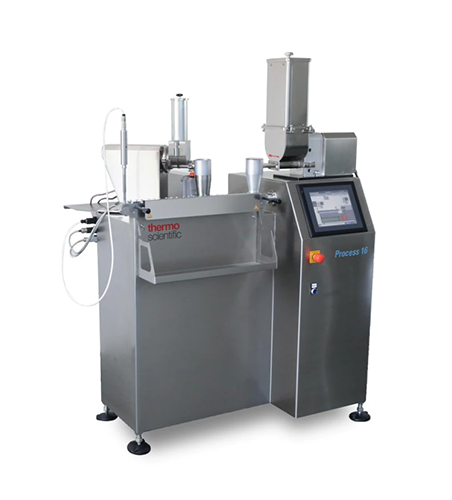

Introducing the Thermo Scientific Process 16 Parallel Twin-Screw Extruders

The Thermo Scientific™ Process 16 Twin-Screw Extruder is specifically designed to ensure easy handling and workflow efficiency to meet the needs in R&D, process development, and small batch production. Easy cleaning and access are enabled by the housing and split barrel design with a removable top cover ensuring customer-specific application flexibility. Ideal for a variety of compounding workflows with accessories such as filament spooler, sheet take-off systems, and pelletizers.

Thermo Scientific Process 16 Parallel Twin-Screw Extruders



Thermo Scientific Process 16 Parallel Twin-Screw Extruders

Key Features

The Process 16 Parallel Twin-Screw Extruder was created with a user-friendly touch-screen operation that features an integrated feeder control and easily removable product contact parts. The compact design minimizes the usage of lab space and ensures easy cleaning.

The Process 16 Parallel Twin-Screw Extruder features:

  • Throughput range 0.4 kg/h to 20 kg/h (material dependent)
  • Segmented screw design and removable top half barrel
  • A screw length adjustment kit enables small quantity compounding
  • A fully ported barrel allows maximum flexibility for feeding and degassing
  • Contact parts selectable from three steel grades
  • An easy-to-operate touch screen with integrated feeder control
  • Broad accessory portfolio, e.g.. dies, feeders, water bath, conveyor belt, strand or die face pelletizers, haul off, and spooler
  • The granulation kit enables customers to switch between melt extrusion and wet/melt granulation
  • Geometrically scalable screw and barrel design across portfolio





Key Benefits

Recommended for materials such as:

  • Polymers, Biopolymers
  • Additives
  • Adhesives
  • Food, e.g. high moisture meat analogues (HMMA); texturized vegetable proteins (TVP)
  • Cosmetics

Applications:

  • Compounding
  • Masterbatches
  • Nanocomposites
  • Filter test
  • Blown film
  • Sheets




Thermo Scientific Process 16 Parallel Twin-Screw Extruders


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications

Barrel diameter 16 mm
Barrel length 40 L/D
Barrel/screw material • 440C* – Process 16 Extruder
• X15TN – Process 16 Hygienic Extruder
Diameter ratio Do/Di 1.73
Screw speed 10 – 1000 rpm
Torque max. 36 Nm
Pressure max 100 bar
Temperature 350°C (450°C as option**)
Barrel zones 8 zones. 7 x 5 L/D electrical heated (optional water cooled)
Dimensions (L x W x H) 1230 x 690 x 1120 mm
Weight 180 kg
Power 3 x 400V 25A



Catalog number Unit Size Description
567-7700 Each Process 16 Parallel Twin-Screw Extruder
567-7710 Each Process 16 Hygienic Parallel Twin-Screw Extruder
