Introducing the Thermo Scientific HAAKE™ PolyLab™ QC Modular Torque Rheometer

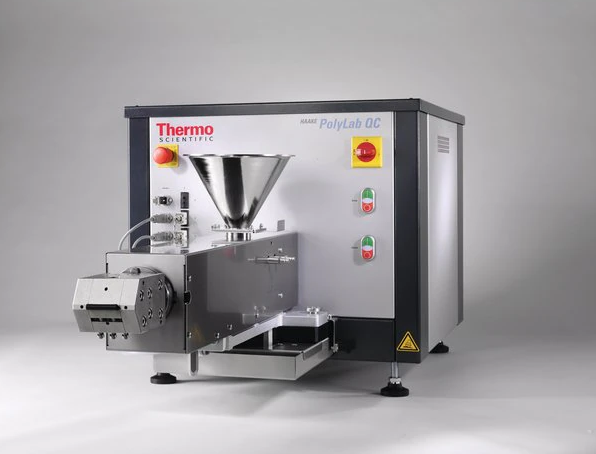

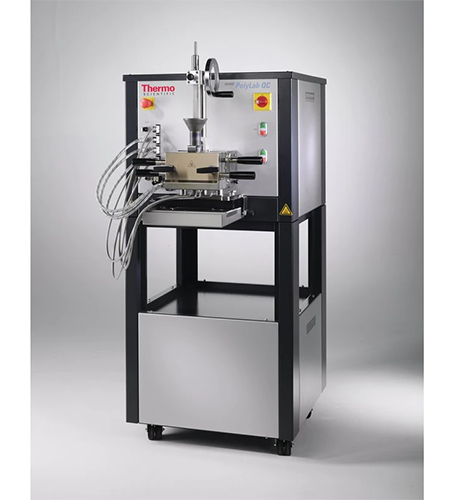

You can choose from a bench or floor model of the HAAKE PolyLab QC Modular Torque Rheometer. With an optional rack on the floor model, the instrument can be moved or even stored if needed. Based on the system’s backward compatibility, even existing measuring mixers and extruders can be connected to the HAAKE PolyLab QC Modular Torque Rheometer. These devices are automatically recognized by the plug and play Thermo Scientific™ HAAKE™ PolySoft™ Software. This same software also identifies individual limits of the measuring systems, such as torque, speed and temperature and sets alarm values to minimize errors.
Key Features
The HAAKE PolyLab QC Modular Torque Rheometer Features:
Backward Compatibility
Compatible with previous model mixers and extruders
Adapts to existing accessories for use
Imports previous data for compatibility
Interfaces/Communication
CAN open control communication with temperature, motor controller
CAN open data communication for pressure and remote signals
USB interface to host computer (LAN as option)
Key Benefits

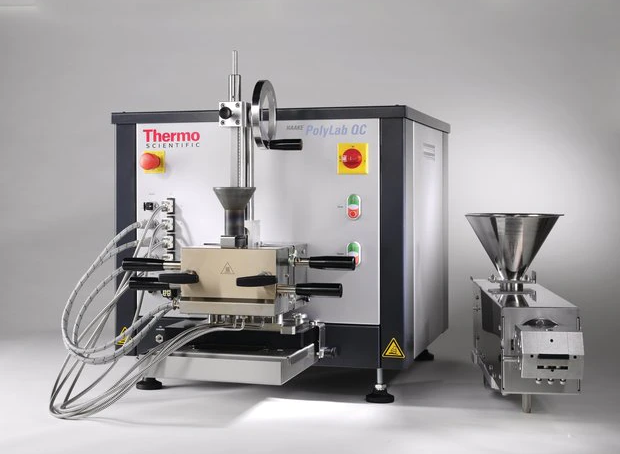

Confidently meet all your quality control demands with the Thermo Scientific™ HAAKE™ PolyLab™ QC Modular Torque Rheometer. The HAAKE PolyLab QC Modular Torque Rheometer can be connected to an interchangeable mixer, single-screw extruder or conical twin-screw extruder — combining proven technology and state-of-the-art hardware and software with an easy-to-use interface.
Trust the Experts at Spectra Research Corporation
Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.
Specifications
Catalog number
Unit Size
Description
Speed Range
Torque Range
10134964
Each
Mixers and Extruder System
0 – 200 rpm
0 – 300 Nm
Description
Mixers and Extruder System
Speed Range
0 – 200 rpm
Temperature Reading Channels
4
Torque Rheometer
Yes
Torque Range
0 – 300 Nm
Internal Communication
CAN open control communication with temperature, motor controller I CAN open data communication for pressure and remote signals I USB interface to host computer (LAN as option)
Testing individual and combined influences of additives (stabilizer, lubricant) and functional additives (anti-oxidation, UV-stabilizers, pigments and fillers)
The Energy 11 Twin-Screw Extruder can be set up for a wide range of applications encountered in current battery R&D. The fully ported, horizontally split barrel allows for flexible feeding of solid and liquid ingredients. Interchangeable die designs adapt to a range of materials from dry granules, polymeric solid-state electrolytes, and electrode films to wet slurries. Eight precisely controlled temperature zones along the barrel ensure flexibility in processing.
Continuous granulation offers a more efficient and cost-effective route for producing tablets and capsules, particularly when developing new formulations where scale-up is difficult due to the narrow optimal working points found in batch devices such as mixers, agitators and choppers.
