Optical Tensiometer Theta Flow
Sphere Fluidics Cyto-Mine.jpg
Biolin Scientific Optical Tensiometer Theta Flow

Biolin Scientific Optical Tensiometer Theta Flow

  • Static contact angle
    Sessile drop, captive bubble and meniscus methods
  • Dynamic contact angle
    Dynamic contact angle, advancing and receding contact angle, contact angle hysteresis and roll-off angle
  • Surface free energy
    Sessile drop, captive bubble and meniscus methods
  • Surface- and interfacial tension
    Pendant drop and reverse pendant drop methods
  • Roughness-corrected contact angle and 3D surface roughness
    Fringe projection phase shifting method
  • Interfacial dilatational rheology
    Pulsating drop method



SKU: Theta Flow Categories: , , , ,

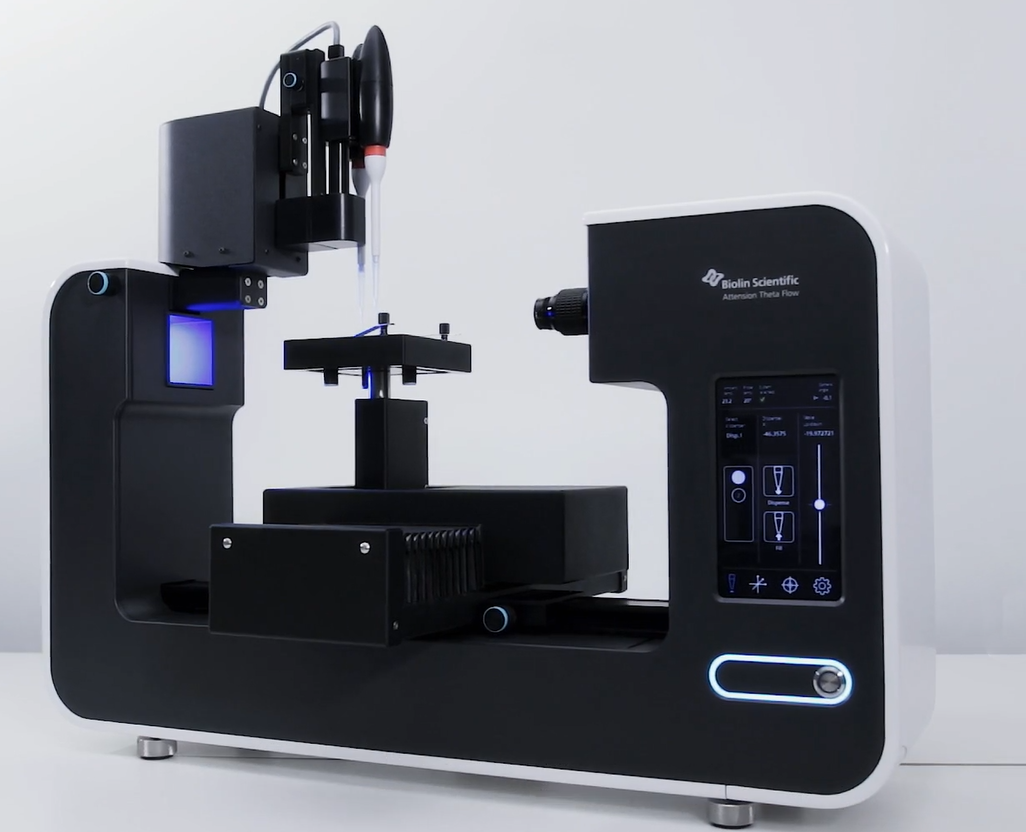

Introducing the Biolin Scientific Optical Tensiometer Theta Flow

Premium contact angle meter suitable for demanding surface research and quality control. Enjoy a user-friendly instrument with a high level of automation and accuracy for user-independent results.

A CLOSER LOOK

Check out the specifics of Theta Flow and compare it to our Theta Flex and Theta Lite to find out what you need. Theta Flow systems come in ready-made packages optimized for your automation level. Other packages can also be formed easily thanks to the modular design.

Biolin Scientific Optical Tensiometer Theta Flow



Biolin Scientific Optical Tensiometer Theta Flow

Key Features

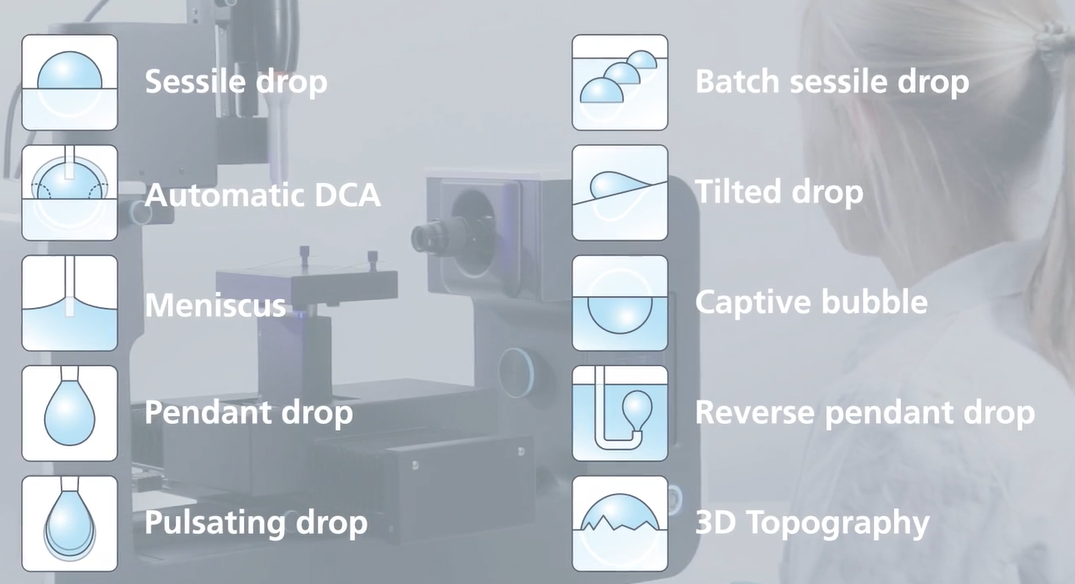

What you can measure

  • Static contact angle
    Sessile drop, captive bubble and meniscus methods
  • Dynamic contact angle
    Dynamic contact angle, advancing and receding contact angle, contact angle hysteresis and roll-off angle
  • Surface free energy
    Sessile drop, captive bubble and meniscus methods
  • Surface- and interfacial tension
    Pendant drop and reverse pendant drop methods
  • Roughness-corrected contact angle and 3D surface roughness
    Fringe projection phase shifting method
  • Interfacial dilatational rheology
    Pulsating drop method





Key Benefits

3 reasons to invest

Automation at an all-time high

Camera autofocus, ensuring the image to always stay clear, automatic surface mapping, where the sample can be moved into different measurement positions, and automatically generated results with the industry-leading OneAttension software. These are the features bringing automation to a new level for optical tensiometers, simplifying the measurements and increasing accuracy.

Accuracy and user-independence

With a camera resolution at 5 MP, image quality enhancement with DropletPlus technology, and sensors keeping track of the surrounding environment for good traceability, Theta Flow will provide highly accurate results. The reliable data, in turn, is a key component for user-independent measurements.

Easy to use with touch display

The touch display improves the user experience making measurement preparation super smooth to handle. Everything from filling the liquids to changing your sample can be done easily at the instrument in seconds.




Biolin Scientific Optical Tensiometer Theta Flow


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications



Theta Flow
Theta Flex
Theta Lite

Available Measurements
Static contact angle and captive bubble
Batch contact angle
Dynamic contact angle
Meniscus contact angle
Surface/Interfacial tension
3D surface roughness and roughness-corrected contact angle
 –
Interfacial rheology
 –
Surface free energy
 Zisman Plot, OWRK/Extended Fowkes, van Oss Acid-Base, Wu, Neumann’s Equation of State, Schultz 1 and 2

Software and hardware
Measuring range (°, mN/m)
 0…180, 0.01…2000 0…180, 0.01…2000 0…180, 0.01…2000
Accuracy (°, mN/m)
 ±0.1, ±0.01 ±0.1, ±0.01 ±0.1, ±0.01
Maximum sample size (mm)
 Unlimited×100×320 Unlimited×100×320 (with stage) Unlimited×45×200 (with stage)
Integrated sample holders
Maximum resolution (px)
 2592 x 2048 (5 MP) 1984 × 1264 (2.3 MP) 1280 × 1024 (1.3 MP)
Maximum measuring speed (fps)
 3422 3009 2068
Camera
 CMOS 1” USB 3.0 digital camera with zoom CMOS 2/3” USB 3.0 digital camera with zoom CMOS 1/2” USB 3.0 digital camera with fixed zoom
Image focusing
 Software-controlled autofocus, manual fine focus in optics Manual fine focus in optics Manual fine focus by optical rail
Image quality
 Enhanced with DropletPlus technology, Native Native Native
Camera protection
 Inside instrument covers Inside instrument covers Inside instrument covers
Camera view angle (°)
 -4 … 2.5, with digital scale -4.5 … 2.5, with mechanical scale -2 … 2
Light source and size
 LED based homogeneous background lighting, 62 x 62 mm LED based homogeneous background lighting, 62 x 62 mm LED based background lighting, Ø 20 mm
Field of view (Ø, mm)
 1.44…45.3 1.44…32.3 2.9…12
Measurement indicator LED
 –
Integrated touch display
 – –
Environment monitoring
 – –
Disposable tip dispensing
Software
 OneAttension, includes all measurement modes OneAttension, includes all measurement modes OneAttension, includes all measurement modes
Dimensions — Basic frame (L×W×H, mm)
 765 x 230 x 435 765 x 230 x 435 495 x 130 x 310
Weight — Basic frame (kg)
 29 26 5
Power supply (VAC)
 100…240 100…240 100…240
Frequency (Hz)
 50…60 50…60 50 … 60
Dispenser
Droplet placement
Sample stage
Camera
Possible upgrades
Special features
Theta Flow Auto 5
 Auto, 4 liquid Auto Auto XYZ 2592 x 2048 px, max 3422 FPS Full Autofocus Touch display Environment tracing Measurement indicator
Theta Flow Auto 4
 Auto, 2 liquid Auto Auto XYZ 2592 x 2048 px, max 3422 FPS Full Autofocus Touch display Environment tracing Measurement indicator
Theta Flow Auto 3
 Auto, 2 liquid Auto Auto X, Manual YZ 2592 x 2048 px, max 3422 FPS Full Autofocus Touch display Environment tracing Measurement indicator
Theta Flow Auto 2
 Auto, 1 liquid Auto Auto X, Manual YZ 2592 x 2048 px, max 3422 FPS Full Autofocus Touch display Environment tracing Measurement indicator
Theta Flow Auto 1
 Auto, 1 liquid Auto Manual XYZ 2592 x 2048 px, max 3422 FPS Full Autofocus Touch display Environment tracing Measurement indicator
Theta Flex Auto 4
 Auto, 2 liquids Auto Auto XYZ 1984 × 1264 px, max 3009 FPS Full Measurement indicator
Theta Flex Auto 2
 Auto, 2 liquids Auto Auto X, Manual YZ 1984 × 1264 px, max 3009 FPS Full Measurement indicator
Theta Flex Auto 1
 Auto, 1 liquid Auto Manual XYZ 1984 × 1264 px, max 3009 FPS Full Measurement indicator
Theta Flex Plus
 Auto, 1 liquid Manual Manual XYZ 1984 × 1264 px, max 3009 FPS Full Measurement indicator
Theta Flex Basic
 Manual Manual Manual XYZ 1984 × 1264 px, max 3009 FPS Full Measurement indicator
Theta Lite Auto 2
 Auto, 2 liquids Manual Manual XZ 1280 x 1024 px, max 2068 FPS Limited –
Theta Lite Auto 1
 Auto, 1 liquid Manual Manual XZ 1280 x 1024 px, max 2068 FPS Limited –
Theta Lite Basic
 Manual Manual Manual XZ 1280 x 1024 px, max 2068 FPS Limited –



Datasheet
