Sphere Fluidics Cyto-Mine

Cyto-Mine® – Antibody discovery and cell line development workflows streamlined like never before

  • Targeted Discovery – .Rapidly identify and isolate your rare cells of interest.
  • Monoclonality Assurance – Extensive proof of monoclonality for cell line development.
  • Significantly Reduce Timelines and Costs – Tens of millions of cells in pools or hundreds of thousands individually are screened in a single day.
  • Flexibility – Flexible assay design allows quantitative measurement of antibody secretion.
  • Sterility – The entire process is automated, sterile and Animal Origin Free. The Benchtop system is compatible for use in Class II biosafety cabinets.



Request a Quote

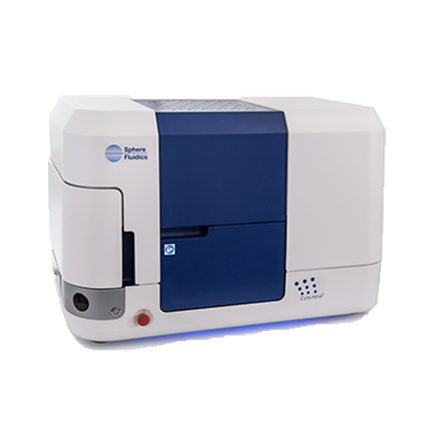

Introducing the Sphere Fluidics Cyto-Mine

The first integrated device to automatically perform selective screening, cell isolation and clone verification in a single compact system.

Cyto-Mine® is a high-throughput instrument which uses picodroplet technology and microfluidics to process up to 40 million heterogeneous mammalian cells (in pools) in less than a day. Cells are encapsulated in picodroplets containing growth media, which act as a bioreactor to compartmentalise cells and let them grow, eventually trapping secreted molecules such as antibodies. The unique workflow enables selective screening of single cells to find rare lead candidates. Although principally designed for antibody discovery and cell line development, the flexibility of the platform makes it suitable for a variety of application areas.

When single cells are compartmentalised in individual picodroplets, monoclonality is ensured and you can perform novel assays to determine protein secretion rates, titre and antigen-specificity. Capturing single cells in picodroplets also ensures gentle processing throughout the workflow.

Each run takes place on a disposable Cyto-Cartridge® which gives you confidence of sterility and minimises crossover risks. Automation of the system reduces human resource requirements and the simple ‘load-and-go’ format makes it easy to use by everyone in the lab. Cyto-Mine®, Cyto-Cartridge® and our specialist chemicals and bioreagents are all Animal Origin Free and GLP-compliant.

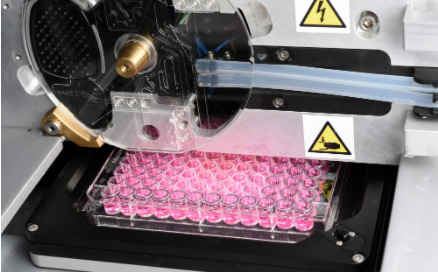

Sphere Fluidics Cyto-Mine



Sphere Fluidics Cyto-Mine

Key Features

The next generation single cell analysis system for antibody discovery and cell line development.

Current processes for finding novel antibody targets or developing stable cell lines are time consuming and inefficient. Whether you are screening whole B cell repertoires, hybridomas, CHO or other cells, approaches such as cell sorting, clone picking or limiting dilutions have their associated drawbacks – some do not allow cell secretion assays, some tend to be harsh on the individual cells impacting cell viability and outgrowth. Existing approaches are suboptimal, costly, require various individual steps, therefore potentially introducing human error and contamination.

Cyto-Mine® is the new generation solution which allows you to accelerate, automate and simplify your antibody discovery and cell line development workflows.

Targeted Discovery. Rapidly identify and isolate your rare cells of interest.

Monoclonality Assurance. Extensive proof of monoclonality for cell line development.

Significantly Reduce Timelines and Costs. Tens of millions of cells in pools or hundreds of thousands individually are screened in a single day.

Flexibility. Flexible assay design allows quantitative measurement of antibody secretion.

Sterility. The entire process is automated, sterile and Animal Origin Free. The Benchtop system is compatible for use in Class II biosafety cabinets.



Key Benefits

Flexible Assay Design for Antibody Screening

Cyto-Mine® technology enables rapid, miniaturised assays of target protein secreted from encapsulated cells. Assay format can be tailored to suit your needs. From IgG secretion assays for productivity screens to antigen-specific assays for B cell mining or hybridoma fusion screens or customised assays to assess functionality, post-translational modifications or reporter assays, there is a solution for you.

Evidence of Monoclonality

There is an ever-increasing need for proof of monoclonality in single cell analysis. Cyto-Mine® ensures single cell status in a number of ways. Initially, cells are encapsulated into picodroplets at high dilution so that probability of 2 or more cells per picodroplet is incredibly low (about 0.1%). Uniquely, visual proof of monoclonality is provided by ultra-high speed, multi-frame optical imaging immediately prior to dispensing.

Single Cell Assays

Cyto-Mine® picodroplet technology provides a powerful new way to screen vast quantities of cells for secreted proteins. The combination of the picodroplet approach and flexible assay set up means that the platform can be set up to suit your needs – whether you are working in antibody discovery, cell line development, synthetic biology, or other fields – the platform is very flexible and we would be happy to discuss your experimental needs further with you to see how we can help you reach your goals.




Sphere Fluidics Cyto-Mine


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications

SYSTEM SPECIFICATIONS
Weight 85 kg (187 lbs) – Boxed 110 kg (242 lbs)
Dimensions 860 mm x 566 mm x 463 mm (34 x 23 x 19 inches (w x h x d))
Voltage [frequency] 100 V (min) to 240 V (max) [@ 50 Hz / 60 Hz] 500W (max)
RUN SPECIFICATIONS
Sample input method Loaded into single-use disposable Cyto-Cartridge®
Sample input format Mammalian cells in cell culture medium
Workflows (operation modes) Monoclonality Assurance; Direct Assay; Cell Line Stability
Destination plate capacity Plate-by-plate or stacker option (available upon enquiry)
Dispensing speed 1 well per second
Run time 2-7 hours (protocol dependent)
Containment and sterility Requires biological safety cabinet
DETECTION
Detection system Laser-Induced Fluorescence (e.g. fluorophores, FRET)
Excitation wavelengths 488 nm
Detection wavelengths * 520nm & 620nm (peak detection wavelengths)
Camera High-speed CMOS
PC
Computer Embedded internally as part of Cyto-Mine®
PC operating system Microsoft Windows 7 Professional
Monitor Colour LCD (21”)
External connections 4 USB; 1 Ethernet
Cyto-Mine® data formats .XLS; .BMP; .PDF; .XML (database integration, upon enquiry)
SOFTWARE SPECIFICATIONS
System control software Cyto-Mine® Studio software suite
Monoclonality verification Image capture and processing
Data tracking On screen data point hyperlinking
Data fidelity Locked run data with time stamp editing
WORK ENVIRONMENT
Clearance 30 cm
Humidity 30 – 80%
Operating temperature 21oC ± 5 oC
Site preparation See the Cyto-Mine® System Site Requirements Guide
CONSUMABLES
Microfluidic biochips Cyto-Cartridge®
Specialist chemicals Cyto-Surf® Solutions (250ml bottles)
Microplate compatibility 96- and 384-well. All major SBS format plates.
