Partica LA-960V2: Laser Scattering Particle Size Distribution Analyzer

Partica LA-960V2: Laser Scattering Particle Size Distribution Analyzer

The following are some characteristics of the Partica LA-960V2: Particle Size Analyzer:

  1. Advanced Detector Design: The performance of the system as a whole is influenced by the quantity of detectors, angular range, and layout.
  2. Greater Instrument-to-Instrument Precision: The LA-960V2 is engineered to deliver the same performance independent of the LA-960V2’s date of manufacture, the operator’s skill level, or the user’s location. Without the trouble of correlation, get unparalleled instrument agreement.
  3. Automated Laser Alignment in Seconds: With computer-controlled laser alignment, measurements are always accurate. The revolutionary method used by HORIBA allows the alignment procedure to be completed in only a few seconds.
  4. Accuracy and Precision Guaranteed: The LA-960V2 is a highly developed particle size analyzer that can precisely measure NIST-traceable size standards to within 0.6% of specification. Complete adherence to ISO 13320 standards for material measurement on the D10, D50, and D90.


SKU: HORIBA - Partica LA-960V2: Laser Scattering Particle Size Distribution Analyzer Categories: , , , ,


HORIBA proudly introduces the newest breakthrough in particle size technology.

LA-960V2: Particle Size Analyzer is the latest evolution in the LA series advances scientific knowledge for tomorrow’s world through intuitive software, unique accessories, and high performance. The LA-960V2 continues HORIBA’s proud tradition of leading the industry with innovative design.

HORIBA’s groundbreaking optical design perfects the static light scattering particle sizing technique.


Features of Partica LA-960V2: Particle Size Analyzer:

  • Advanced Detector Design: The number of detectors, angular range, and layout each contribute to overall system performance.
  • Superior Instrument-to-Instrument Precision: The LA-960V2 is designed and built to provide the same experience regardless of manufacture date, operator skill, or geographic location. Achieve unmatched instrument agreement without the hassle of correlation.
  • Automatic Laser Alignment in Seconds: Always make perfect measurements with computer-controlled laser alignment. The alignment process is finished in only a few seconds with HORIBA’s innovative approach.
  • Guaranteed Accuracy and Precision: The LA-960V2 is a highly refined particle size analyzer capable of accurately measuring NIST-traceable size standards within 0.6% of specification. Fully compliant with ISO 13320 recommendations regarding the measurement of materials on the D10, D50, and D90.


State of the Art Sampling Systems:

  • Wet Measurement: Sample-to-sample analysis in less than 60 secondsThe HORIBA LA-960V2 wet circulation system is an easy, fast and very powerful dispersion system. The standard wet system offers a full package of a dispersant fill pump, liquid level sensor, circulation pump, 30 W in-line ultrasonic probe, and drain valve, which is all software-controlled for true one-button operation. This advanced design provides highly reproducible particle size results.

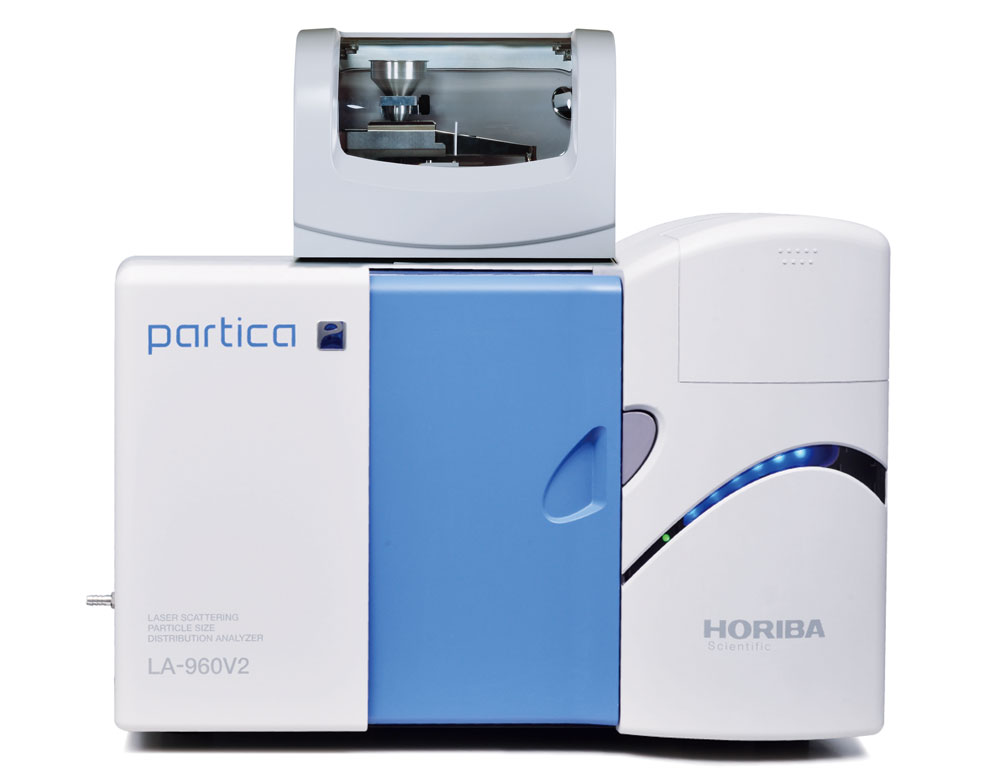

  • Dry Measurement: Automated, powerful dry-powder dispersion

    LA-960V2: Particle Size Distribution Analyzer
    The LA-960V2 PowderJet combines several unique and patented features to provide the most reproducible dry measurements. Use the Auto Measurement function to control vacuum, air pressure, powder flow, start/stop conditions, measurement duration, and data processing. Designed to handle every application including small sample amounts, friable powders, and highly agglomerated materials.

    • Smart Scans – Trigger function
      This function allows for very precious materials to be measured accurately. When the sample amount is limited or low flow ability, the Trigger functions perfectly to start and stop the measurement.
    • Self-Adjusting Powder Flow
      Historically, the biggest challenge in dry powder measurement involved establishing an even powder flow. The LA-960V2 PowderJet has solved that challenge with a self-adjusting feedback loop to maintain a constant laser transmittance. This is a crucial factor in creating reliable, reproducible dry powder size measurements.



Specifications of LA-960V2: Particle Size Analyzer:

Measurement Principle Mie scattering and Fraunhofer diffraction
Measurement range 10 nm – 5000 μm
Measurement Time Typical measurement takes 60 seconds from liquid filling, sampling and measurement to rinsing.
Measurement Method Circulation measurement or fraction cell measurement (Fraction cell is optional)
Sample Quantity Approximately 10 mg – 5 g (Depending on the particle size, distribution and density)
Dispersing Volume Approximately 180 mL for the standard pumping system, 5/10/15 mL for FractionCell accessory, Manual filling: 35 mL, Automatic filling: 40 mL for MiniFlow accessory. Approximately 1 L of LiterFlow option.
Available carrier fluid Aqua* (A type), Organic solvent (S type) (*Ethanol can be used as a dispersing additive)
Communication USB 2.0
Light Sources Red solid state 5 mW laser diode (650 nm), Blue solid state 3 mW LED (405 nm)
Dispersion System In-line ultrasonic probe: 30 W, 20 kHz, adjustable levels
Circulation pump: Fully automated fill and circulation pumps, 15 adjustable speeds, 4 selectable fill levels, 15 selectable circulation speeds (max: 10 L/min)
Operating Conditions 15〜35°C (59 to 95°F), relative humidity 85% or less (no condensation)
Power AC 100-240V 50/60Hz, 300VA
Dimensions 705 (W) × 565 (D) × 500 (H) mm
Mass 54 kg
Computer Requirements PC operation, Software compatible with Windows® 10 32-bit and 64-bit environments,
*contact HORIBA for additional operating system compatibilities
