B&W Tek i-Raman® Pro-ST Portable Raman Analyzer

for Rapid Analysis and Identification Through Opaque Barriers

  • Featuring a high quantum efficiency CCD array detector
  • The system provides versatility for see through measurements
  • Fully integrated system
  • Tablet computer running touch-friendly software
  • Used for Raman analysis across a wide range of applications for rapid analysis and identification covering diverse samples forms.



Request a Quote

Description

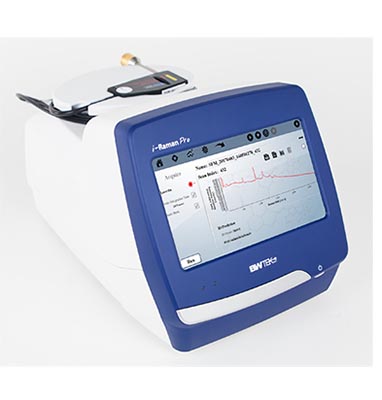

BW Tek Raman Pro ST Portable Raman Analyzer
The i-Raman® Pro ST unites a high throughput spectrometer, specialized sampling optics and advanced algorithms in a portable Raman system to deliver rapid material identification capabilities through a variety of barrier layers and packaging previously impenetrable with Raman. Using our patent–pending technology, the i-Raman Pro ST can collect Raman signal generated underneath diffusive top layers to identify material inside even visually opaque barriers such as white plastic bottles, paper envelopes, tablet coatings, and more. This removes the need to open containers and come in contact with the material, thus maintaining package and sample integrity. The system design features a large sampling depth and sampling area and minimized power density, facilitating the measurement of samples that can be challenging for conventional focused Raman spectroscopy.

SENSITIVE:

Featuring a high quantum efficiency CCD array detector with a high-throughput spectrograph and specialized sample probe, the system can collect Raman signal generated underneath diffusive top layers while largely avoiding their signature from overwhelming that of the sample. With a sampling area on the order of millimeters, heterogeneous material measurement is improved, giving more representative measurement of sample composition. The laser power is distributed over a larger area, resulting in lower power density and making it possible to measure materials that may be susceptible to photo damage when using conventional Raman.

VERSATILE:

The system provides versatility for see through measurements through barriers and for focused Raman measurement directly on a sample with easily attached adaptors. The system can be used for Raman analysis across a wide range of applications for rapid analysis and identification covering diverse samples forms. BW Tek Raman Pro ST Portable Raman Analyzer

TOUCH SCREEN INTERFACE:

The i-Raman Pro ST is a fully integrated system with a tablet computer running touch-friendly software, providing material identification and real-time predictions. With a battery option for easy portability, the system provides research grade Raman capabilities wherever needed.

Specifications

Laser
785nm Excitation 400 mW at probe
Laser Power Control 0 to 100% (adjustable at 1% increments)
Spectrometer
Range 150 – 2800 cm-1
Resolution* < 6.0 cm-1 @ 912nm
Detector
Detector Type High quantum efficiency CCD Array
Pixel Number 2048 Effective Detector Elements
CCD Temperature -25oC
Digitization Resolution 16-bit
Integration Time 7ms – 30 mins
Electronics
Computer Interface USB 2.0
Trigger Yes (Compatible with B&W Tek Probes)
Power Options
DC Power Adaptor 12V DC @ 6.6 Amps
Battery Optional
Physical
Dimensions 15.7in x 10.2in x 9.8in (40cm x 26cm x 25cm)
Weight ~19.5lbs (~8.8kg)
Operating Temperature 0°C – 35°C
Storage Temperature -10°C – 60°C
Humidity 10% – 85%
*Resolution measured using atomic emission lines. Raman resolution per ASTM E2529-06 (Standard Guide for Testing the Resolution of a Raman Spectrometer).



















Applications:

  • Through-Package Material Inspection
  • Customs and Logistics Package Inspection
  • Pharmaceutical Raw Material Identification
  • Narcotics Detection
  • Art and Archaeological Study
  • Bioscience and Medical Analysis
  • Forensic Analysis
  • Geological and Mineralogical Research
  • Material Science Research
BW Tek Raman Pro ST Portable Raman Analyzer
Download Data Sheet
