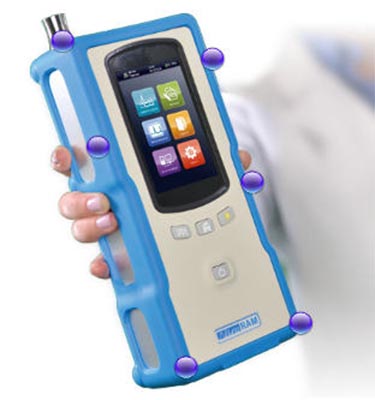

B&W Tek NanoRam® Handheld Raman Spectrometer

B&W Tek NanoRam® Handheld Raman Spectrometer

  • High-Brightness Touch Screen Display
  • Embedded 1 & 2 Dimensional Barcode Scanner
  • IP-64 Dust Tight and Splash Proof Rated Housing
  • Sampling Accessories for Almost Any Environment
  • Batch Scanning Option for Large Volume Operation
  • Intuitive Software for Technical & Non-technical Users
  • Wi-Fi & Ethernet Communication for Data Sync & Management



NanoRam Handheld Raman Spectrometer

The NanoRam is a state-of-the-art handheld Raman instrument for nondestructive identification and verification of materials such as APIs, excipients, intermediates, & finished products. Compact and agile, the NanoRam can be used by non-technical users to rapidly identify samples in the lab, warehouse, loading dock or field, helping to eliminate quarantine areas and expedite materials through the manufacturing lifecycle. Utilizing Raman technology, non-contact analysis can be performed through transparent containers, all while maintaining the volume and integrity of the sample.

The NanoRam handheld Raman spectrometer facilitates fast and convenient transitions between sampling accessories for raw material identification through a variety of packaging. The NanoRam comes standard with the point and shoot, vial holder, and bottle adaptor accessories. These accessories allow you to measure through plastic and glass containers, take in situ measurements of liquids and powders, and measure larger containers only accessible from the top. Additionally, right angle, tablet holder, and immersion shaft accessories are available to facilitate even more sampling situations. The NanoRam comes standard with our proprietary NanoRam OS embedded software, which allows for identification and verification, library and method development, and data storage/ transfer as well as NanoRam ID PC software for data and methods management, allowing customers to export data and generate reports.

Raman spectroscopy is an approved method by the U.S. and European Pharmacopoeia, as well as the Pharmacopoeia of the People’s Republic of China. It is also a well-recognized method for compliance with the PIC/S GMP guide regarding 100% identity assurance for starting materials. The NanoRam is fully compliant with all governing regulations, including 21 CFR Part 11 and Part 1040.10, and can play an integral role in cGMP compliant facilities. B&W Tek offers a wide variety of services, including assistance with method and/or new library development as well as support with IQ/OQ/PQ implementation.

Intuitive Software – a user-friendly interface for both technical & non-technical users to make their job easier
Versatility – measure a variety of samples in a variety of environments and packaging with just one unit
Data Reproducibility – superior hardware ensures that results are consistent and reliable
Performance – robust multivariate algorithms guarantee accuracy when testing and identifying materials.

2012 Laboratory Equipment Readers' Choice Winner Pharmaceutical Manufacturing Innovations 2012 Honoree

B&W Tek Inc.


Excitation Wavelength 785nm
Laser Output Power 300mW Max Adjustable in 10% Increments
Spectral Range 176cm-1 to 2900cm-1
Spectral Resolution ~ 9cm-1@ 912nm
Detector Type TE-Cooled Linear CCD Array
Display High Brightness and High Resolution Touch Screen
Bar Code Reader Linear and 2D Standards
Software Nanoram® OS (Embedded), Nanoram® ID (PC)
Data Formats .txt, .csv, .spc
Connectivity Ethernet, WiFi
Battery Rechargeable Li-ion, >4 hrs Operation
AC Adapter Output: DC 12 V, 2A Minimum
Weight ~2.5 lbs (~1.2 kg)
Size 8.8in x 3.9in x 2.0in (22cm x 10cm x 5cm)
Operating Temperature -20 °C to +45 °C
Storage Temperature -30 °C to +60 °C
