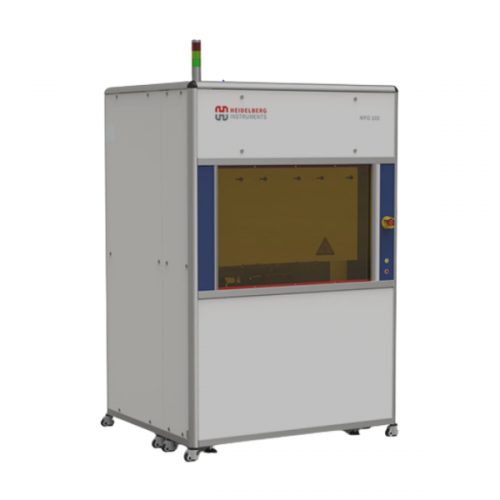

The MPO 100 is a Two-Photon Polymerization (TPP) multi-user tool for 3D Lithography and Micro-Printing of microstructures with applications in Optics, Photonics, Mechanics, and Biomedical Engineering. The modular 3D printing platform MPO 100 offers high precision on demand for 3D Lithography as well as high print volume for 3D Microprinting and enables the production of complex functional microstructures with high throughput in a single process step.

SKU: MPO-100 | 3D Lithography and Micro-Printing Categories: , , , ,



Introducing the MPO-100 | 3D Lithography and Micro-Printing

The scanning system of the MPO 100 consists of high-performance, frictionless air-bearing stages that are synchronized with the high-speed galvoscanner. This enables a simultaneous movement of the sample and a deflection of the laser spot, thereby expanding the scan field (Field-of-View, FoV) of the microscope objective to the entire print area of 100 mm x 100 mm and thus providing the capability of stitching-free fabrication (infinite FoV). The ultrafast scanner facilitates high scan speeds based on the relation 10 m/s divided by the objective‘s magnification. Due to the high dynamic of the scanner, optimum scan speeds of over 1000 mm/s can be achieved.



MPO-100 | 3D Lithography and Micro-Printing



MPO-100 | 3D Lithography and Micro-Printing

Key Features

MPO-100, 3D Lithography and Micr0-Printing:

  • Printing height of over 1 cm
  • Surface quality: Roughness down to 10 nm
  • Resolution down to 100 nm
  • Scan speeds over 1000 mm/s
  • Flowbox with temperature control down to ± 0.1 °C
  • Print area of 100 mm x 100 mm
  • Stitching-free fabrication capability
  • Synchronized scanning system
  • Application-specific Write Modes
  • Additive processing of organic and hybrid polymers (ORMOCER®s)
  • Optional software modules for customer-specific print jobs
  • Subtractive processing of metal layers (Au, Ag, Cr, …)





Key Benefits

MPO-100 Provide some Unmatched Benefits:

  • MPO-100, 3D Lithography and Micro-Printing has a powerful femtosecond laser system operating at a wavelength of 522 nm enabling efficient and high-speed processing of many commercially available polymer systems
  • Application-specific Write Modes enable fast and easy switching between 3D Lithography and 3D Microprinting
  • The achievable minimum feature size of down to 100 nm and the accessible scan speed of over 1000 mm/s provide full user benefit for tailored 3D nano-, micro- and macro-fabrication processes

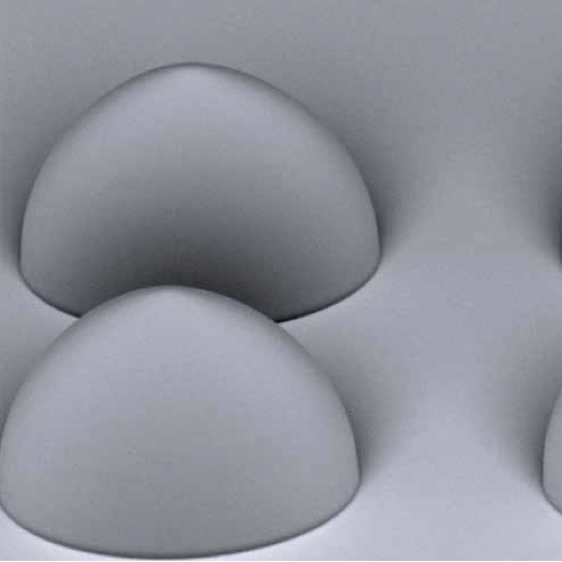

  • High-quality micro-optical elements with varying shapes (e.g. freeform) and sizes can be fabricated either on planar substrates or directly on active/passive devices

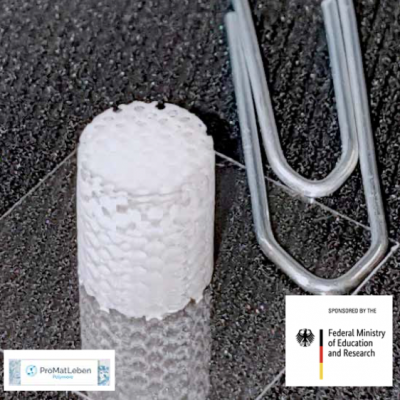

  • 3D structures for diverse applications such as optics, mechanics, and life science can be fabricated at high speed




MPO-100 | 3D Lithography and Micro-Printing


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

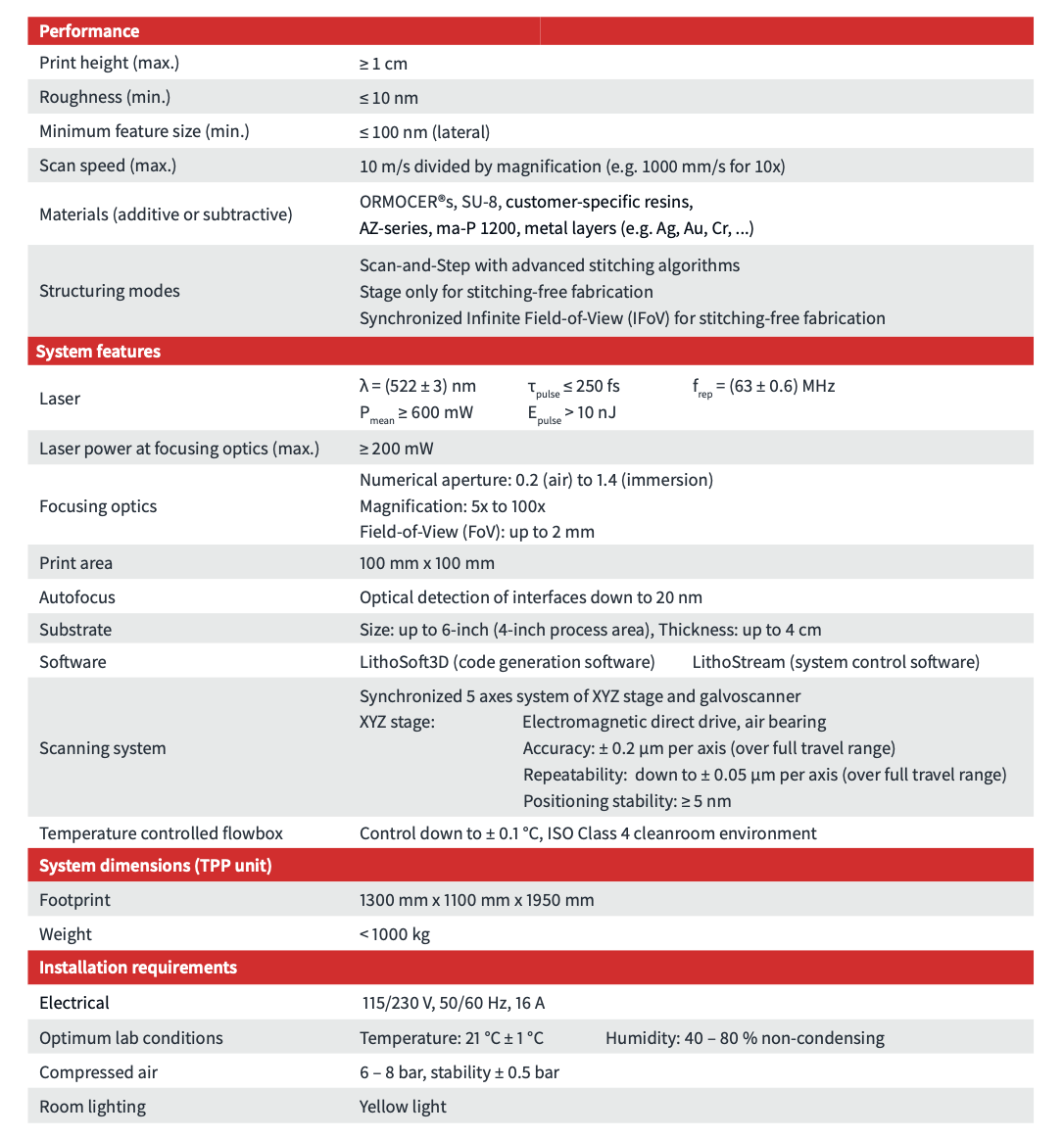

Specifications

Specs MPO-100
