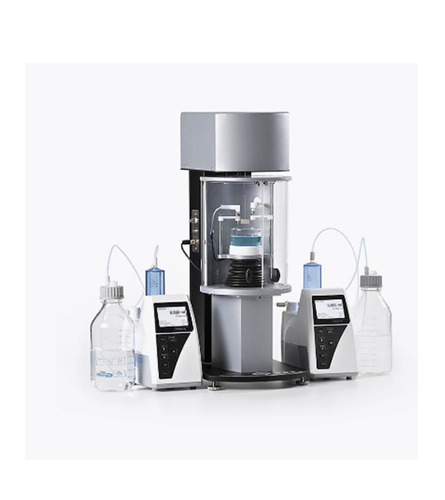

Biolin Scientific Force Tensiometer Sigma CMC

Biolin Scientific Force Tensiometer Sigma CMC

Fully automated critical micelle concentration (CMC) determination with high accuracy.

  • Critical Micelle Concentration
    Du Noüy ring and Wilhelmy plate methods
  • Surface tension
    Du Noüy ring and Wilhelmy plate methods
  • Interfacial tension
    Du Noüy ring and Wilhelmy plate methods
  • Dynamic contact angle
    Wilhelmy methods
  • Surface free energy
    Based on contact angle measurements
  • Powder wettability
    Washburn method
  • Density
    Density probe
  • Sedimentation
    Sedimentation probe
  • Adhesion force
    Liquid droplet pull-off method






Introducing the Biolin Scientific Force Tensiometer Sigma CMC

Widen you view

In this 1-minute video, you will get a quick view of Sigma CMC. For the best experience, watch it in fullscreen mode!



Biolin Scientific Force Tensiometer Sigma CMC



Biolin Scientific Force Tensiometer Sigma CMC

Key Features

What you can measure

  • Critical Micelle Concentration
    Du Noüy ring and Wilhelmy plate methods
  • Surface tension
    Du Noüy ring and Wilhelmy plate methods
  • Interfacial tension
    Du Noüy ring and Wilhelmy plate methods
  • Dynamic contact angle
    Wilhelmy methods
  • Surface free energy
    Based on contact angle measurements
  • Powder wettability
    Washburn method
  • Density
    Density probe
  • Sedimentation
    Sedimentation probe
  • Adhesion force
    Liquid droplet pull-off method





Key Benefits

3 reasons to invest

Full CMC automation for high precision

Everything from measuring surface tension and changing surfactant solution concentration to analyzing the shape of the CMC curve automatically ensures a user-independent and unattended operation. Integrated magnetic stirrer ensures surfactant solution homogeneity.

Sophisticated software

The OneAttension software provides full versatility and automation, easy measurement setup, and live results. But above all, it is really user-friendly and intuitive. Includes features like autosearch to reduce CMC measurement time by automatically increasing the number of data points only around the CMC point.

Optimized yet versatile

Sigma CMC is an adaptable and versatile system that not only measures CMC but also has the full support of other surface measurement modes from surface tension to powder wettability. This ensures the system is future-proof for any measurement needs that may come to you.






Biolin Scientific Force Tensiometer Sigma CMC


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications

A CLOSER LOOK

Sigma CMC is based on the versatile Sigma 701 that is known for its particularly high sensitivity. It can also be used with the Sigma 700 which is optimized for powder wettability and contact angle measurements. Check out the system specifications below.

Sigma 700
Sigma 701

Available Measurements

Surface tension

Interfacial tension

Critical Micelle Concentration

 Automatic  Automatic

Dynamic contact angle

Surface free energy

Powder wettability

Density

Sedimentation

Balance Specifications

Measuring range (mN/m)

1…2000 1…2000

Displayed resolution (mN/m)

0.001 0.001

Density range (g/cm3)

0…2.2 0…2.2

Density resolution (g/cm3)

0.0001 0.0001

Maximum load (g)

210 5

Weighing resolution (mg)

0.01 0.005

Force resolution (µN)

0.1 0.05

Contact angle range (°)

0…180 0…180

Contact angle resolution (°)

0.01 0.01

Calibration & Locking

Automatic Manual

Measuring Unit Specifications

Sample stage

Motorized Motorized

Sample stage speed (mm/min)

0.01…500 0.01…500

Stage positioning resolution (µm)

0.016 0.016

Dimensions (L×W×H, cm)

33.3×24.4×62 33.3×24.4×62

Weight (kg)

16.3 13

Power supply (VAC)

85…264 85…264

Power consumption (W)

13 13

Frequency (Hz)

47…440 47…440

Common Accessories

Temperature control range (° C)

-20…+200 -20…+200

Stirrer

Software

Provided software

OneAttension OneAttension

System Requirements

Recommended system requirements

  • 1 GHz processor
  • 1 GB RAM
  • 40 GB hard disk drive (20 GB free)
  • 1 USB-port
  • Accessories such as water bath and liquid dispenser may require a free USB port

Operating system requirements

  • Windows 7 & 8 &10 (32 or 64 bit)
  • Windows Vista (32 bit)
