Biolin Scientific Force Tensiometer Sigma 702ET

Transformer Oil Analyzer specifically designed for measurements of interfacial tension of transformer oil according to relevant standards.

  • Oil-water interfacial tension
    Measured with a Du Noüy ring in accordance to the ASTM D971 and IEC 62961 standards
  • Surface tension
    Du Noüy ring method
  • Interfacial tension
    Du Noüy ring method
  • Critical Micelle Concentration
    Manual measurements with Du Noüy ring
  • Density
    Density probe



Request a Quote

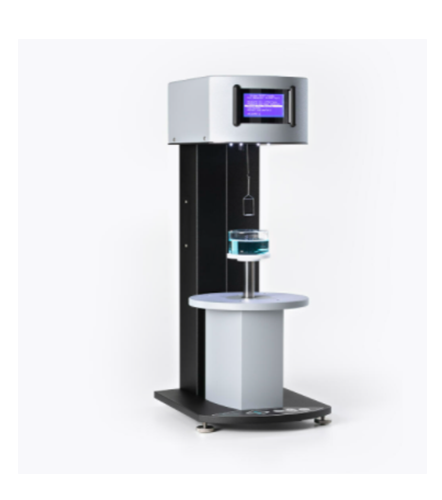

Introducing the Biolin Scientific Force Tensiometer Sigma 702ET

Sigma 702ET is specifically designed for the quality control of transformer oils. It follows IEC 62961 and ASTM D971 standards to measure the interfacial tension between a transformer oil and water as a quality control measure for the oil.

Accurate measurements of

  • Interfacial tension between transformer oil and water
  • (IEC 62961 and ASTM D971)
  • Surface tension
  • Interfacial tension
  • Critical micelle concentration (CMC) (manual)
  • Density

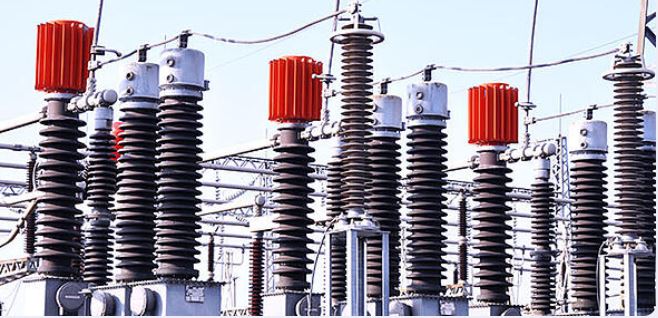

Quality Control of Transformer Oil

Testing interfacial tension of oil and water with the ring method.

The IEC 62961 and ASTM D971 standards are used to determine the possible contaminants of hydrocarbon fluids. The purity of hydrocarbon fluids is important in many industrial areas, such as in aviation, diesel fuels and transformer oils.

It is well known that oil-water interfacial tension correlates with the purity and functionality of oils that are used in transformers for cooling, insulation and protection against arcing. Electrical stress and contamination may modify the oil performance.

Sigma 702ET with a platinum Du Noüy ring is an excellent choice for controlling the oil quality according to IEC 62961 and ASTM D971-12 standards.



Biolin Scientific Force Tensiometer Sigma 702ET



Biolin Scientific Force Tensiometer Sigma 702ET

Key Features

What you can measure

  • Oil-water interfacial tension
    Measured with a Du Noüy ring in accordance to the ASTM D971 and IEC 62961 standards
  • Surface tension
    Du Noüy ring method
  • Interfacial tension
    Du Noüy ring method
  • Critical Micelle Concentration
    Manual measurements with Du Noüy ring
  • Density
    Density probe





Key Benefits

3 reasons to invest

Guiding nature

This instrument is designed to simplify the work for you. It guides you through the measurement process of interfacial tension of transformer oil and water according to relevant standards.

High-end accuracy

Precision in both microbalance and mechanics give you excellent accuracy for you measurements.

Results on the go

With the standalone functionality there is no need for an external computer. Your results are displayed on a large integrated screen and can easily be printed or exported to your PC.

Biolin Scientific Force Tensiometer Sigma 702ET


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications

A CLOSER LOOK

Dive into the specifics of Sigma 702ET and compare it to our other instruments to make a smart decision on what you need.



Sigma 700
Sigma 701
Sigma 702
Sigma 702 ET
Sigma 703 D

Available Measurements

Surface tension

Interfacial tension

Critical Micelle Concentration

 Automatic  Automatic  Manual  Manual  Manual

Dynamic contact angle

Surface free energy

Powder wettability

Density

Sedimentation

Balance Specifications

Measuring range (mN/m)

1…2000 1…2000 1…1000 1…1000 1…1000

Displayed resolution (mN/m)

0.001 0.001 0.01 0.01 0.01

Density range (g/cm3)

0…2.2 0…2.2 0…2.2 0…2.2 0…2.2

Density resolution (g/cm3)

0.0001 0.0001 0.0001 0.0001 0.0001

Maximum load (g)

210 5 5 5 5

Weighing resolution (mg)

0.01 0.005 0.01 0.01 0.01

Force resolution (µN)

0.1 0.05 0.1 0.1 0.1

Contact angle range (°)

0…180 0…180

Contact angle resolution (°)

0.01 0.01

Calibration & Locking

Automatic Manual Manual Manual Manual

Measuring Unit Specifications

Sample stage

Motorized Motorized Motorized Motorized Manual

Sample stage speed (mm/min)

0.01…500 0.01…500 0.01…500 0.01…500

Stage positioning resolution (µm)

0.016 0.016 0.26 0.26

Dimensions (L×W×H, cm)

33.3×24.4×62 33.3×24.4×62 33.3×24.4×62 33.3×24.4×62 27.5×15.5×39.

Weight (kg)

16.3 13 10.7 10.7 4.9

Power supply (VAC)

85…264 85…264 85…264 85…264 100…240

Power consumption (W)

13 13 13 13 7

Frequency (Hz)

47…440 47…440 47…440 47…440 50…60

Common Accessories

Temperature control range (° C)

-20…+200 -20…+200 -20…+200 -20…+200 -20…+200

Stirrer

Software

Provided software

OneAttension OneAttension Data receiver Data receiver Data receiver

System Requirements

Recommended system requirements

  • 1 GHz processor
  • 1 GB RAM
  • 40 GB hard disk drive (20 GB free)
  • 1 USB-port
  • Accessories such as water bath and liquid dispenser may require a free USB port

Operating system requirements

  • Windows 7 & 8 &10 (32 or 64 bit)
  • Windows Vista (32 bit)
