Force Tensiometer Sigma 702ET
Biolin Scientific Force Tensiometer Sigma 703D

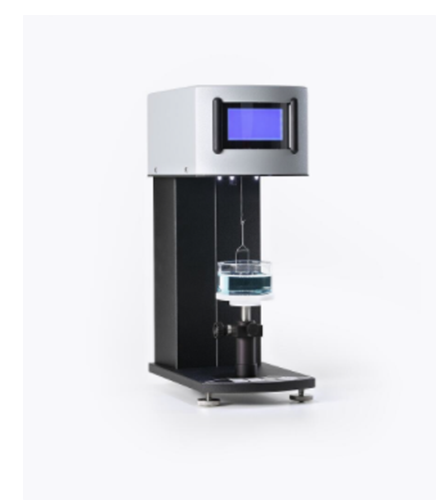

Force Tensiometer Sigma 703D

Biolin Scientific Force Tensiometer Sigma 703D

A manual standalone force tensiometer. Easy to use and perfect for simple measurements of surface tension and interfacial tension.

  • Surface tension
    Du Noüy ring and Wilhelmy plate methods
  • Interfacial tension
    Du Noüy ring method
  • Critical Micelle Concentration
    Manual measurements with Du Noüy ring and Wilhelmy plate methods
  • Density
    Density probe



SKU: Sigma 703D Categories: ,

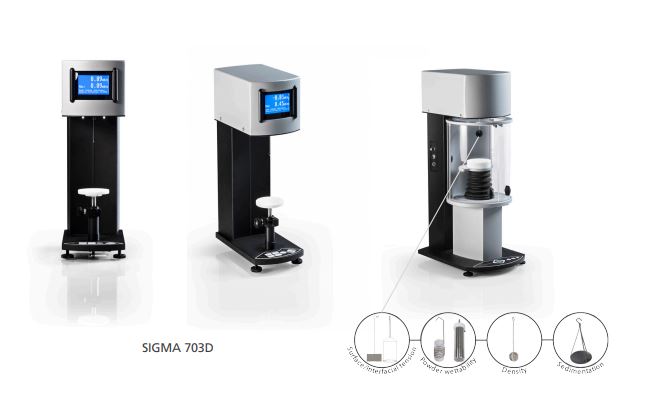

Introducing the Biolin Scientific Force Tensiometer Sigma 703D

Sigma 703D is an accurate manual standalone force tensiometer for quality control and research. Robust and convenient, it’s the optimal tool for simple surface tension and interfacial tension measurements.

Accurate measurements of

  • Surface tension
  • Interfacial tension
  • Critical micelle concentration (CMC) (manual)
  • Density



Biolin Scientific Force Tensiometer Sigma 703D



Biolin Scientific Force Tensiometer Sigma 703D

Key Features

What you can measure

  • Surface tension
    Du Noüy ring and Wilhelmy plate methods
  • Interfacial tension
    Du Noüy ring method
  • Critical Micelle Concentration
    Manual measurements with Du Noüy ring and Wilhelmy plate methods
  • Density
    Density probe





Key Benefits

3 reasons to invest

Quick to learn

This instrument has a simple and open design with an intuitive user interface. It is really quick to learn and keep on going.

Standalone operations

Equipped with a manual sample stage, Sigma 703D is intended for easy and fast standalone operations. It provides accurate results of surface tension and interfacial tension measurements, making it a perfect fit for quality control and research.

Results in real-time

Your results are displayed live on a large integrated screen. In other words, no need for an external computer. If you want to, you can easily print or export the results.

Biolin Scientific Force Tensiometer Sigma 703D


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications

A CLOSER LOOK

Dive into the specifics of Sigma 703D and compare it to our other instruments to make a smart decision on what you need.



Sigma 700
Sigma 701
Sigma 702
Sigma 702 ET
Sigma 703 D

Available Measurements

Surface tension

 √ √ √ √ √

Interfacial tension

 √ √ √ √ √

Critical Micelle Concentration

  Automatic  Automatic  Manual  Manual  Manual

Dynamic contact angle

 √ √ – – –

Surface free energy

 √ √ – – –

Powder wettability

 √ √ – – –

Density

 √ √ √ √ √

Sedimentation

 √ √ – – –

Balance Specifications

Measuring range (mN/m)

 1…2000 1…2000 1…1000 1…1000 1…1000

Displayed resolution (mN/m)

 0.001 0.001 0.01 0.01 0.01

Density range (g/cm3)

 0…2.2 0…2.2 0…2.2 0…2.2 0…2.2

Density resolution (g/cm3)

 0.0001 0.0001 0.0001 0.0001 0.0001

Maximum load (g)

 210 5 5 5 5

Weighing resolution (mg)

 0.01 0.005 0.01 0.01 0.01

Force resolution (µN)

 0.1 0.05 0.1 0.1 0.1

Contact angle range (°)

 0…180 0…180 – – –

Contact angle resolution (°)

 0.01 0.01 – – –

Calibration & Locking

 Automatic Manual Manual Manual Manual

Measuring Unit Specifications

Sample stage

 Motorized Motorized Motorized Motorized Manual

Sample stage speed (mm/min)

 0.01…500 0.01…500 0.01…500 0.01…500 –

Stage positioning resolution (µm)

 0.016 0.016 0.26 0.26 –

Dimensions (L×W×H, cm)

 33.3×24.4×62 33.3×24.4×62 33.3×24.4×62 33.3×24.4×62 27.5×15.5×39.

Weight (kg)

 16.3 13 10.7 10.7 4.9

Power supply (VAC)

 85…264 85…264 85…264 85…264 100…240

Power consumption (W)

 13 13 13 13 7

Frequency (Hz)

 47…440 47…440 47…440 47…440 50…60

Common Accessories

Temperature control range (° C)

 -20…+200 -20…+200 -20…+200 -20…+200 -20…+200

Stirrer

 √ √ – – –

Software

Provided software

 OneAttension OneAttension Data receiver Data receiver Data receiver

System Requirements

Recommended system requirements
  • 1 GHz processor
  • 1 GB RAM
  • 40 GB hard disk drive (20 GB free)
  • 1 USB-port
  • Accessories such as water bath and liquid dispenser may require a free USB port

Operating system requirements
  • Windows 7 & 8 &10 (32 or 64 bit)
  • Windows Vista (32 bit)



Datasheet


Related products

  • Force Tensiometer Sigma 702ET
    Force Tensiometer Sigma 702ET
    Quick View
    Biolin Scientific Biolin Scientific Force Tensiometer Sigma 702ET

    Transformer Oil Analyzer specifically designed for measurements of interfacial tension of transformer oil according to relevant standards.

    • Oil-water interfacial tension
      Measured with a Du Noüy ring in accordance to the ASTM D971 and IEC 62961 standards
    • Surface tension
      Du Noüy ring method
    • Interfacial tension
      Du Noüy ring method
    • Critical Micelle Concentration
      Manual measurements with Du Noüy ring
    • Density
      Density probe



  • Force Tensiometer Sigma 700 & 701

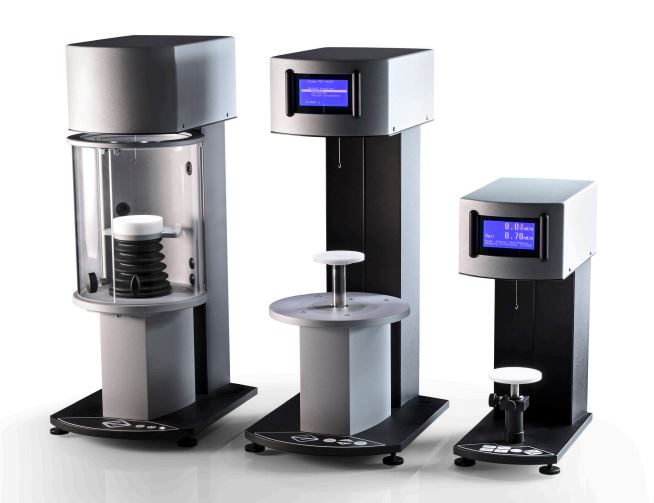

    Force Tensiometer Sigma 700 & 701
