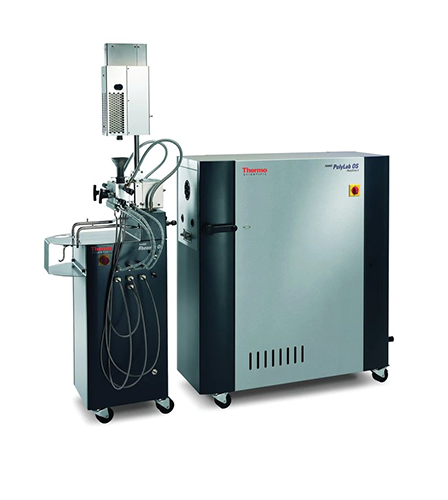

Thermo Scientific HAAKE™ Rheomex OS Single Screw Extruder for the HAAKE™ PolyLab™ OS system

  • Extrudability of newly developed materials
  • Manufacturing homogeneous melts
  • Manufacturing films, foils, strands and profiles for optical and mechanical testing as well as outdoor exposure tests
  • Measuring rheological behavior (viscosity, elasticity)
  • Testing individual and combined influences of additives (stabilizer, lubricant) and functional additives (anti-oxidation, UV-stabilizers, pigments and fillers)
  • Foam extrusion



SKU: 567-2000 / 567-2001 / 567-2004 / 567-2020 Categories: , , ,
Request a Quote

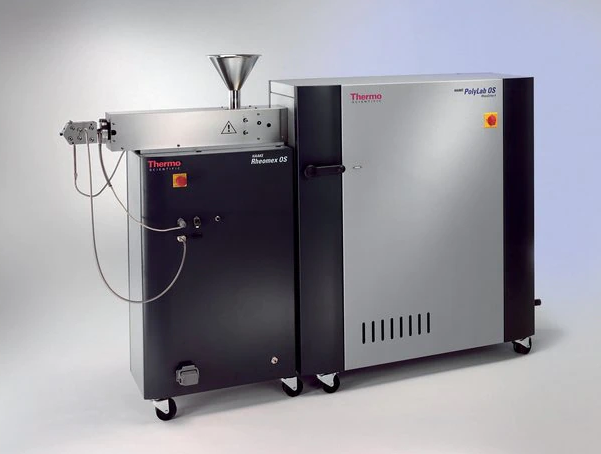

Introducing the Thermo Scientific HAAKE™ Rheomex OS Single Screw Extruder for the HAAKE™ PolyLab™ OS system

Thermo Scientific™ HAAKE Rheomex lab single screw extruders for the HAAKE PolyLab OS torque rheometer platform are focused on the analysis of rheological and processing characteristics of various materials. With only a small sample, amount customers can simulate production processes and generate films or profiles for further testing.

Single-screw extrusion

Proven single-screw laboratory extruders deliver reliable data captured during the extrusion process to verify process parameters (speed, energy, temperature) for unknown materials or to manufacture smaller quantities of a new polymer (as strands, sheets, pellets, blown films) during research and development. The extruders are equipped with measuring ports for melt pressure and melt temperature to study the process parameters along the extruder barrels. These barrels are available in different lengths (length/diameter ratio). A die can be connected to the end of the extruder barrel to form the polymer melt as strand or film. Special rheological dies (slit, rod, x-die) allow the determination of shear- and elongational viscosity at defined shear rates. A variety of screw geometries to customize the extrusion process with different compression ratios, venting and mixing sections is offered. Wear-reduced screws and barrels increase the lifetime of the system. Standard feeders for pellets and special feeding systems for powders, pastes, liquids or highly viscous rubber complete the set up.

Thermo Scientific HAAKE™ Rheomex OS Single Screw Extruder for the HAAKE™ PolyLab™ OS system



Thermo Scientific HAAKE™ Rheomex OS Single Screw Extruder for the HAAKE™ PolyLab™ OS system

Key Features

  • Extrudability of newly developed materials
  • Manufacturing homogeneous melts
  • Manufacturing films, foils, strands and profiles for optical and mechanical testing as well as outdoor exposure tests
  • Measuring rheological behavior (viscosity, elasticity)
  • Testing individual and combined influences of additives (stabilizer, lubricant) and functional additives (anti-oxidation, UV-stabilizers, pigments and fillers)
  • Foam extrusion


Key Benefits

A new concept simplifies handling in the laboratory and enables secure operation. This is characterized by:

  • mobile measuring sensors avoid the necessity of handling of heavy and hot parts
  • integrated heating and cooling circuits reduce the number of plug connections and thus the danger of making incorrect connections
  • several peripheral units such as feeding and post-extrusion units are computer controllable thus meaning better reproducibility and documentation

Thermo Scientific HAAKE™ Rheomex OS Single Screw Extruder for the HAAKE™ PolyLab™ OS system


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications

Catalog number Unit Size Description Price (CAD)
567-2000 Each Rheomex 19/10 OS
Request A Quote

Max. Temperature 450°C
Max. Screw Speed 250
Measuring Sensor Connection CANopen
Width (Metric) 50 cm
Measuring Sensors Melt temperature sensor
Description Rheomex 19/10 OS
Extruder Design Rheomex 19/10 OS
Feeder Information 567 – 2000
Screw Diameter (Metric) 19.05 mm
Height (Metric) 124 cm
Torque Rheometer Yes
Control and Evaluation Software Windows based Software: PolySoft
Torque Range 160 nm max.
Weight (Metric) 110 kg
Length (English) 30.11 in.
Length (Metric) 76.5 cm
Screw Type Single Screw
Unit Size Each
567-2001 Each Rheomex 19/10 OS Rubber
Request A Quote

Max. Temperature 450
Max. Screw Speed 250
Measuring Sensor Connection CANopen
Width (Metric) 50 cm
Measuring Sensors Melt temperature sensor
Description Rheomex 19/10 OS Rubber
Extruder Design Rheomex 19/10 OS Rubber
Feeder Information Speed range of roll feeder: 0-50 1/min1/min
Screw Diameter (Metric) 19.05 mm
Height (Metric) 124 cm
Torque Rheometer Yes
Control and Evaluation Software Windows based Software: PolySoft
Torque Range 160 nm max.
Weight (Metric) 110 kg
Length (English) 30.11 in.
Length (Metric) 76.5
Screw Type Single Screw
Unit Size Each
567-2004 Each Rheomex 19/33 OS
Request A Quote

Max. Temperature 450°C
Max. Screw Speed 250 rpm
Measuring Sensor Connection CANopen
Width (Metric) 50 cm
Measuring Sensors Melt temperature
Description Rheomex 19/33 OS
Extruder Design Rheomex 19/33 OS
Feeder Information 567-2004
Screw Diameter (Metric) 19.05 mm
Speed Range max 250 rpm
Height (Metric) 124 cm
Torque Rheometer Yes
Control and Evaluation Software Windows based Software: PolySoft
Torque Range 160 nm max.
Weight (Metric) 50 cm
Length (English) 36.1 in.
Length (Metric) 91.7 cm
Heating Zones 4
Screw Type Single Screw
Unit Size Each
567-2020 Each Rheomex 19/25 OS
Request A Quote

Max. Temperature 450°C
Max. Screw Speed 250 rpm
Measuring Sensor Connection CANopen
Width (Metric) 50 cm
Measuring Sensors Melt temperature
Description Rheomex 19/25 OS
Extruder Design Rheomex 19/25 OS
Feeder Information 567-2020
Screw Diameter (Metric) 19.05 mm
Speed Range up to 250 rpm
Height (Metric) 124 cm
Torque Rheometer Yes
Control and Evaluation Software Windows based Software: PolySoft
Weight (Metric) 50 cm
Length (English) 30.11 in.
Length (Metric) 76.5 cm
Temperature Control Zones 3
Heating Zones 3
Screw Type Single Screw
Unit Size Each
