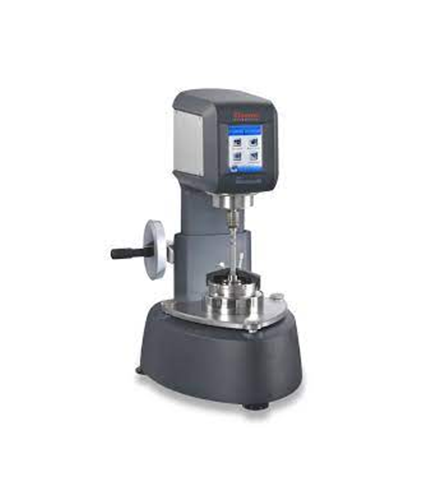

HAAKE™ Viscotester™ iQ Rheometers

  • Easy exchange between different measuring configurations for fast setup and operation
  • Comprehensive portfolio of measuring geometries and accessories to tailor your instrument
  • Smart lift function for convenient, accurate and reproducible gap setting
  • Correct and precise sample filling for parallel plates for ultimate measuring accuracy
  • Breakthrough concept self-explaining in setup and handling for error-proof operation
  • Convenient touch screen display for visualization of numerical and graphical measurement results
  • “Temperature Assist” rapid real sample temperature control based on a dynamic heat transfer model
  • “Connect Assist” quick coupling of measuring geometries and temperature modules with perfect alignment, automatic recognition and feedback for measuring optimization
  • Highly dynamic, powerful EC motor for flexibility across a range of materials and measurements



SKU: 262-0001TS / 262-0100 Categories: , ,
Request a Quote

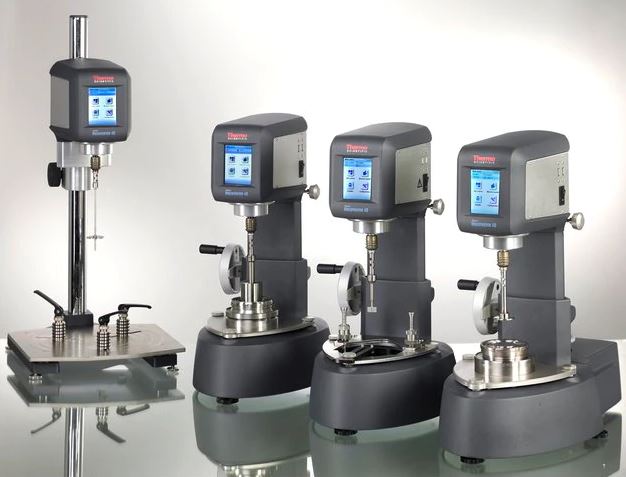

Introducing the HAAKE™ Viscotester™ iQ Rheometers

Measure and analyze the rheological properties of a wide range of liquid, paste and semi-solid samples with the Thermo Scientific™ HAAKE™ Viscotester™ iQ  and Viscotester iQ Air rheometers. The Viscotester iQ rheometer is an intuitive solution designed to meet the daily rheological requirements of QC labs. The Viscotester iQ Air rheometer is the smallest commercially available oscillation air bearing rheometer in the world. Both set new standards in modularity, ease of use, increased efficiency, and intelligent user guidance, from simple viscosity determinations to complex rheological investigations.

HAAKE Viscotester iQ Rheometers are the replacement for the discontinued Thermo Scientific™ Viscotester™ 550 Rotational Viscometer.

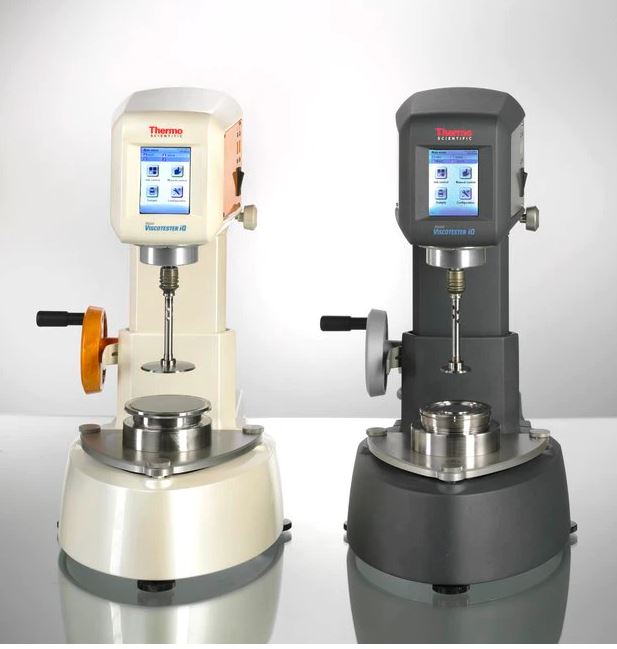

HAAKE™ Viscotester™ iQ Rheometers



HAAKE™ Viscotester™ iQ Rheometers

Key Features

Individual

  • Meeting your demands in QC
  • Easy exchange between different measuring configurations for fast setup and operation
  • Comprehensive portfolio of measuring geometries and accessories to tailor your instrument
  • Highly dynamic, powerful EC motor for flexibility across a range of materials and measurements
  • Exchangeable self-sufficient Peltier or liquid controlled temperature modules for maximum flexibility
  • Optional oscillation mode
  • Multiple means of operation: Standalone, with new HAAKE Viscotester iQ RheoApp, or fully software controlled to match your level of usability

Intuitive

  • Making QC more convenient for your laboratory
  • Breakthrough concept self-explaining in setup and handling for error-proof operation
  • Smart lift function for convenient, accurate and reproducible gap setting
  • Measuring geometries designed for optimized handling and easy exchange
  • Correct and precise sample filling for parallel plates for ultimate measuring accuracy

Intelligent

  • Guiding your operators through every measurement challenge
  • Convenient touch screen display for visualization of numerical and graphical measurement results
  • Intelligent user guidance for measuring and evaluation procedures, selection of suitable jobs with indication of available measuring range
  • “Connect Assist” quick coupling of measuring geometries and temperature modules with perfect alignment, automatic recognition and feedback for measuring optimization
  • “Temperature Assist” rapid real sample temperature control based on a dynamic heat transfer model





Key Benefits

The development of the next generation Viscotester was driven by the demands of new rheological tasks in quality control. With the HAAKE Viscotester iQ rheometer, we combine decades of experience in rheology with solutions designed for highly dynamic working environments. Our goal is to enable fast, reliable and precise rheological measurements with maximum ease of operation. Now with the HAAKE Viscotester iQ Air rheometer, we bring you the smallest available oscillation air bearing rheometer. Either rheometer can be used as a standalone portable unit or as a fully software-controlled part of your QC lab.

Ideal for Industrial QC in:

  • Food
  • Cosmetics & Pharmaceuticals
  • Mining & Construction
  • Petrochemicals
  • Polymers




HAAKE™ Viscotester™ iQ Rheometers


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications

Catalog number Unit Size Description Temperature Range (Metric) Viscosity Range Price (CAD)
262-0001TS Each HAAKE Viscotester iQ rheometer (ball bearing) Universal Peltier controlled Module (TM-PE-C)
Coaxial cylinders: -5 °C up to 160 °C
Plates and cones: 0 °C up to 140 °C
Depending on ambient temperature
 0.001 Pa s – 600000 Pa s Request A Quote
Frequency Range  0.1 to 20 Hz
Minimum deflection angle: 10 µrad (option)
Torque Range 0.2 mNm – 100 mNm
Torque resolution: 0.01 mNm
Angular Resolution 1.25 µrad
Angular velocity range: 0.001 rad/s – 157 rad/s
0.01 rpm – 1500 rpm
Weight (Metric) 18 kg (HAAKE Viscotester iQ rheometer incl. Peltier temperature module, heat exchanger and measuring geometry)
Description HAAKE Viscotester iQ rheometer (ball bearing)
Operating Temperature Range Universal Peltier controlled Module (TM-PE-C)
Coaxial cylinders: -5 °C up to 160 °C
Plates and cones: 0 °C up to 140 °C
Depending on ambient temperatureUniversal Liquid controlled Module (TM-LI-C32 / – C48)
Coaxial cylinders: -20 °C up to 180 °C
Plates and cones: -10 °C up to 160 °C
Depending on the circulator model and the bath liquidPeltier controlled Plate (TM-PE-P) 0 °C up to 160 °C

Liquid controlled Plate (TM-LI-P) -20 °C up to 180 °C
Depending on the circulator model and the bath liquid

Electrically controlled Cylinder (TM-EL-C) up to 300 °C
Available for pressure cell configuration

Measuring Method In rotation: Controlled Rate (CR), Controlled Stress (CS)
In oscillation: Controlled Deformation (CD), Controlled Stress (CS)
Shear Rate Shear stress range: 0.004 s -1 – 11415 s -1
(Depending on the measuring geometry used. Calculated theoretical values.)
Shear stress range: 0.7 Pa – 63660 Pa
(Depending on the measuring geometry used. Calculated theoretical values.)
Viscosity Range In rotation: 0.001 Pa s – 600000 Pa s (Depending on the measuring geometry used. Calculated theoretical values.)
In oscillation: 5 Pa s and higher (option)
Measuring Geometries Coaxial cylinders, double-gap cylinders, parallel plates, cones, vane rotors
Interface TCP/IP for communication with PC
USB: 1 port for USB flash drive for HAAKE Viscotester iQ RheoApp, 1 port for keyboard or barcode reader
Dimensions (L x W x H) 270mm x 500mm x 500mm
(HAAKE Viscotester iQ rheometer incl. Peltier temperature module, heat exchanger and measuring geometry)
Power Supply Autoswitch: 100-240 VAC, 50/60 Hz
Patents Quick coupling: DE102012018592
Design: Europe 001320964, Japan 1471355, China ZL201230476257.6, US 07066585
Unit Size Each
Catalog number Unit Size Temperature Range (Metric) Frequency Range Viscosity Range Price (CAD)
262-0100 Each HAAKE Viscotester iQ Air rheometer (air bearing) 0.1 to 50 Hz 0.001 Pa s – 600000 Pa s Request A Quote
Description HAAKE Viscotester iQ Air rheometer (air bearing)
Frequency Range 0.1 to 50 Hz
Minimum deflection angle: 10 µrad
Torque Range 0.01 mNm – 100 mNm
Torque resolution: 0.001 mNm
Angular Resolution 1.25 µrad
Angular velocity range: 0.001 rad/s – 157 rad/s
0.01 rpm – 1500 rpm
Weight (Metric) 18 kg (HAAKE Viscotester iQ rheometer incl. Peltier temperature module, heat exchanger and measuring geometry)
Description HAAKE Viscotester iQ Air rheometer (air bearing)
Operating Temperature Range Universal Peltier controlled Module (TM-PE-C)
Coaxial cylinders: -5 °C up to 160 °C
Plates and cones: 0 °C up to 140 °C
Depending on ambient temperatureUniversal Liquid controlled Module (TM-LI-C32 / – C48)
Coaxial cylinders: -20 °C up to 180 °C
Plates and cones: -10 °C up to 160 °C
Depending on the circulator model and the bath liquid

Peltier controlled Plate (TM-PE-P) 0 °C up to 160 °C

Liquid controlled Plate (TM-LI-P) -20 °C up to 180 °C
Depending on the circulator model and the bath liquid

Electrically controlled Cylinder (TM-EL-C) up to 300 °C
Available for pressure cell configuration

Measuring Method
In rotation: Controlled Rate (CR), Controlled Stress (CS)
In oscillation: Controlled Deformation (CD), Controlled Stress (CS)
Shear Rate Shear rate range: 0.004 s -1 – 11415 s -1
(Depending on the measuring geometry used. Calculated theoretical values.)
Shear stress range: 0.04 Pa – 63660 Pa
(Depending on the measuring geometry used. Calculated theoretical values.)
Viscosity Range In rotation: 0.001 Pa s – 600000 Pa s (Depending on the measuring geometry used. Calculated theoretical values.)
In oscillation: 0.03 Pa s and higher
Measuring Geometries Coaxial cylinders, double-gap cylinders, parallel plates, cones, vane rotors
Interface TCP/IP for communication with PC
USB: 1 port for USB flash drive for HAAKE Viscotester iQ RheoApp, 1 port for keyboard or barcode reader
Dimensions (L x W x H) 270mm x 500mm x 500mm
(HAAKE Viscotester iQ rheometer incl. Peltier temperature module, heat exchanger and measuring geometry)
Power Supply Autoswitch: 100-240 VAC, 50/60 Hz
Patents Quick coupling: DE102012018592
Design: Europe 001320964, Japan 1471355, China ZL201230476257.6, US 07066585
Unit Size Each
