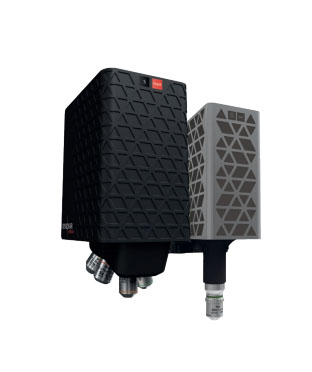

Sensofar S mart & S onix In-line 3D Surface Sensors

  • Integrable metrology solutions
  • Robust, rugged and reliable
  • Versatile or fast
  • Maximum measurement versatility
  • Unprecedented high speed
  • Compact, light and orientation agnostic



Request a Quote



Introducing the Sensofar S mart & S onix In-line 3D Surface Sensors

In-line metrology solutions

Sensofar’s in-line metrology sensor systems represent the culmination of more than 14 years of experience in the development of surface metrology systems.

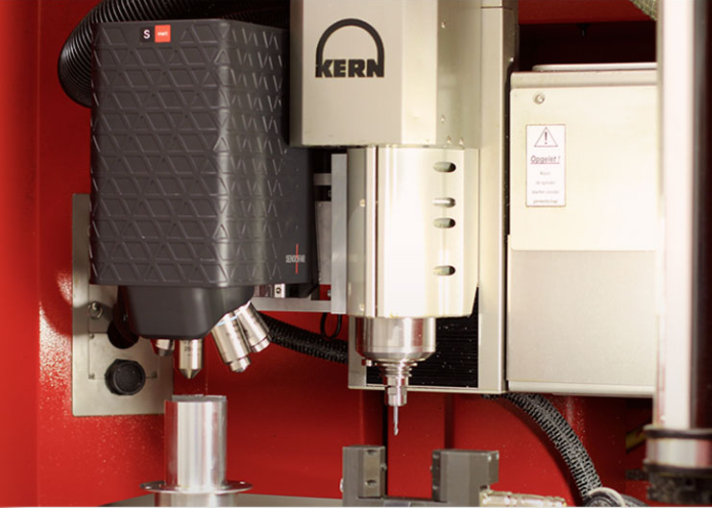

They have been designed right from the outset to be integrated into the harshest manufacturing environments. Compact, lightweight, and with flexible mounting options, the S mart and S onix sensors put high-performance surface metrology right where you need it – in the application.



Sensofar S mart & S onix In-line 3D Surface Sensors



Sensofar S mart & S onix In-line 3D Surface Sensors

Key Features

Robust, rugged and reliable

Production environments are not always the most friendly – varying conditions, vibrations, aggresive materials, etc., all make measurement tasks considerably more difficult. But our integrable sensors have been designed with exactly this in mind. The sealed sensor head keeps out debris and particles while our optical assembly contains no moving parts – the sensors stay clean and aligned.

Versatile or fast?

Our two in-line sensors have primarily been designed to be compact, robust and easily integrated. The next priority was to align their specific strengths to those performance characteristics that are actually required in a production environment.

The S mart addresses the need for ultimate measurement flexibility in an in-line capable package, and is positioned as the most versatile industrial system on the market.

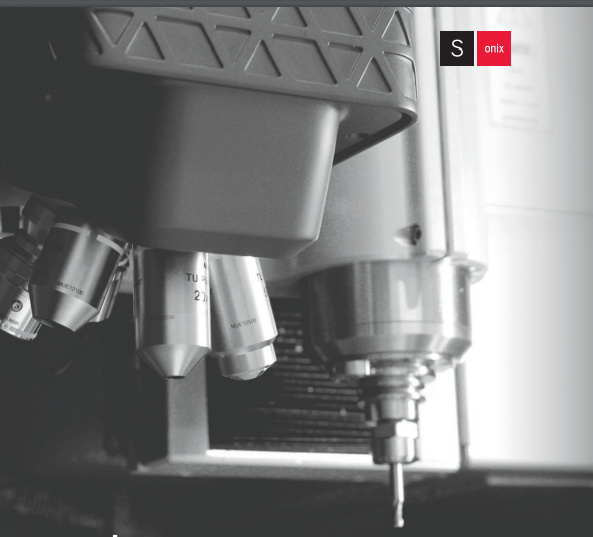

The S onix addresses the need for outright high speed – and thus high throughput – surface metrology in in-line production and process control, and is positioned as the fastest industrial system available today.





Key Benefits

  • Additive manufacturing
  • Aerospace
  • Automotive
  • Consumer electronics
  • Laser marking
  • LCD
  • Microelectronics
  • Micromanufacturing
  • Paper
  • Semiconductors
  • Tooling




Sensofar S mart & S onix In-line 3D Surface Sensors


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications

S mart  3D Optical Sensor

System
Measurement array 1232 x 1028 pixels
LED light source white (default, lifetime 40.000 h – other options available)
Z travel range 40 mm (1.6”)
Z stage linearity <0.5 μm/mm
Z stage resolution 2 nm
Max. vertical scanning range Focus Variation 25 mm; Confocal 36 mm; VSI 7 mm
Step height repeatability < 3 nm
Sample reflectivity 0.05 to 100 %
Display resolution 0.01 nm
Computer Latest INTEL processor; 2560 x 1440 pixel resolution (27”)
Operating system Microsoft Windows 10, 64bit
System Line Voltage 100-240 V AC; frequency 50/60 Hz single phase
Environment Temperature 10-35ºC; Humidity <80 % RH; Altitude <2000 m



S onix  high speed sensor

System
Measurement array 640 x 480 pixels
LED light source wwhite (lifetime 40.000 h)
Z travel range 40 mm (1.6”)
Z stage linearity <0.5 μm/mm
Z stage resolution 2 nm
Max. vertical scanning range 7 mm
Step height repeatability < 3 nm
Sample reflectivity 0.05 to 100 %
Display resolution 0.01 nm
Computer Latest INTEL processor; 2560 x 1440 pixel resolution (27”)
Operating system Microsoft Windows 10, 64bit
System Line Voltage 100-240 V AC; frequency 50/60 Hz single phase
Environment Temperature 10-35ºC; Humidity <80 % RH; Altitude <2000 m
