Sensofar Metrology S Wide Large Area 3D Optical Metrology System

  • Form deviation from 3D CAD models
  • Calibration of surface texture measuring instruments
  • Sub-micron height repeatability over entire extended area
  • One shot height measurement up to 40 mm without Z scanning
  • Bi-telecentric lenses with very low field distortion providing accurate metrology



Request a Quote



Introducing the Sensofar Metrology S Wide Large Area 3D Optical Metrology System

The next metrology tool for wide areas

The S wide is a dedicated system designed to rapidly measure large sample areas up to 300 x 300 mm. It provides all the benefits of a digital microscope integrated into a high resolution measuring instrument. Extremely easy-to-use with one single button acquisition.

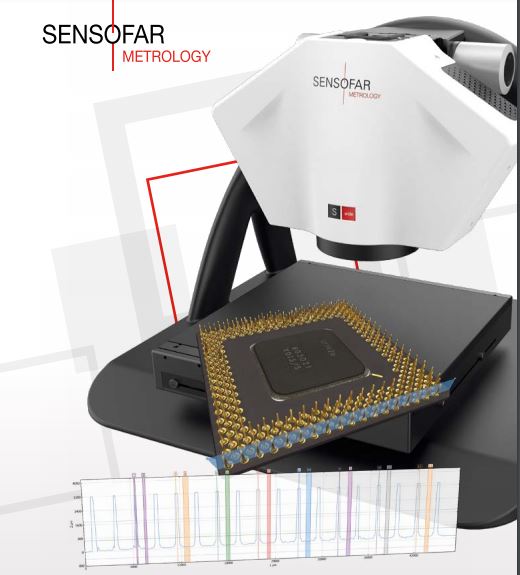

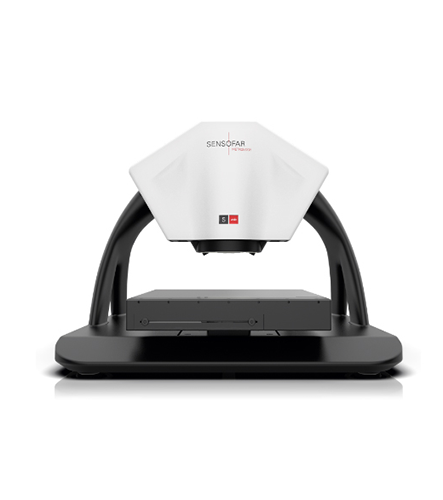

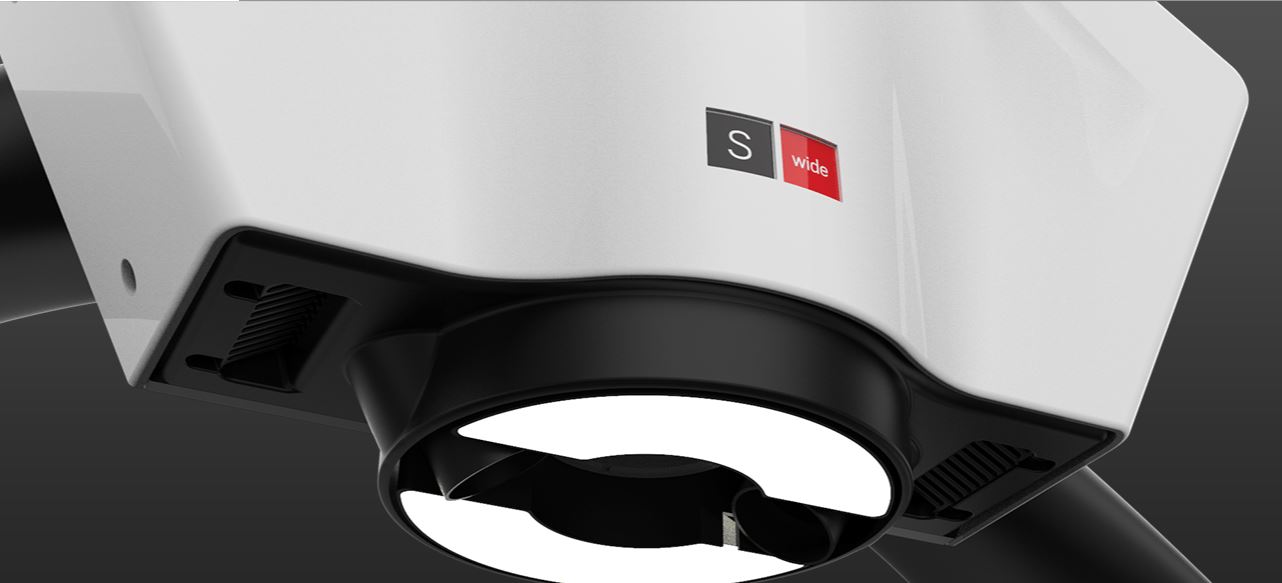

Sensofar Metrology S Wide Large Area 3D Optical Metrology System



Sensofar Metrology S Wide Large Area 3D Optical Metrology System

Key Features

  • Form deviation from 3D CAD models
  • Calibration of surface texture measuring instruments
  • Sub-micron height repeatability over entire extended area
  • One shot height measurement up to 40 mm without Z scanning
  • Bi-telecentric lenses with very low field distortion providing accurate metrology





Key Benefits

Large Area 3D Optical Metrology System

  • Advanced manufacturing
  • Archaeology & Paleontology
  • Consumer electronics
  • Medical devices
  • Molding
  • Optics
  • Watch industry

Sensofar Metrology S Wide Large Area 3D Optical Metrology System


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

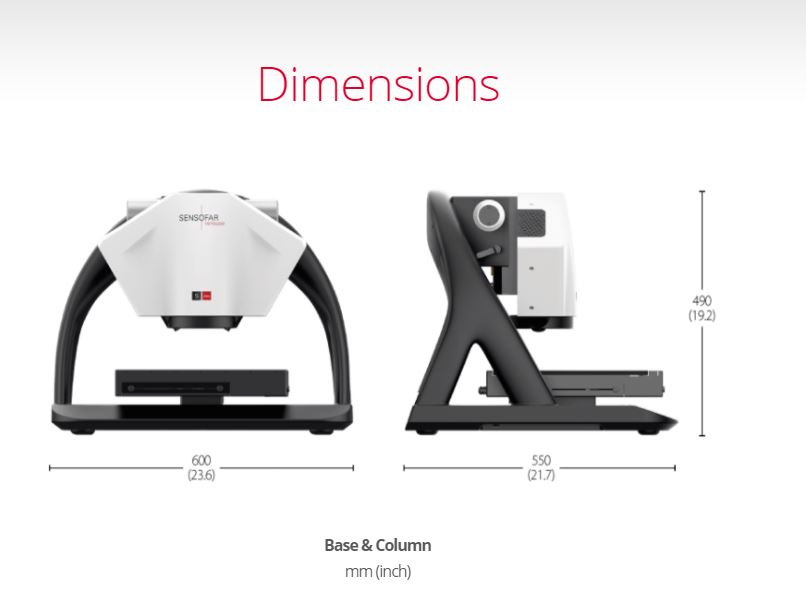

Specifications

System
Measuring principle Fringe Projection (Gray code & Slit, Gray code & Phase Shift)
Observation types Bi-telecentric lens with 0.243X magnification and 0.015 NA
Color camera 5Mpx: 2448×2048 pixels (60 fps)
Total magnification (27″ screen) 11X
Display resolution 0.001 µm
Max. Extended measuring area 300×300 mm with 10×12 stitched fields (Max. resolution 450 Mpx)
Vertical measuring range 10 mm (up to 40 mm)
XY stage range Manual: 150×100 mm; Motorized: 154×154 mm, 302×302 mm
LED light sources Green (530 nm) and blue (460 nm)
Ring light illumination White
Sample weight up to 25 Kg
Sample height 105 mm (standard); 280 mm (optional)
User management rights Administrator, advanced operator, operator
Advanced software analysis Included: SensoVIEW; Optional: SensoPRO, SensoMAP, Geomagic®
Power Line Voltage 100-240 V AC; frequency 50/60 Hz single phase
Computer Latest INTEL processor; 3840×2160 pixels resolution (4K) (27”)
Operating system Microsoft Windows 10, 64 bit
Weight4 55 Kg (121 lbs) table-top system; 8 Kg (18 Ibs) integrable head
Environment Temperature 10 ºC to 35 ºC; Humidity <80 % RH; Altitude <2000 m
