Sensofar S neox Five Axis Complete 3D Measurement Solution

  • Complete accessibility
  • Cover a wide range of scales
  • Maximum versatility
  • A complete 3D measurement
  • Measure angles greater than 90º
  • Measurements without limitation
  • Accurate and reliable



Request a Quote

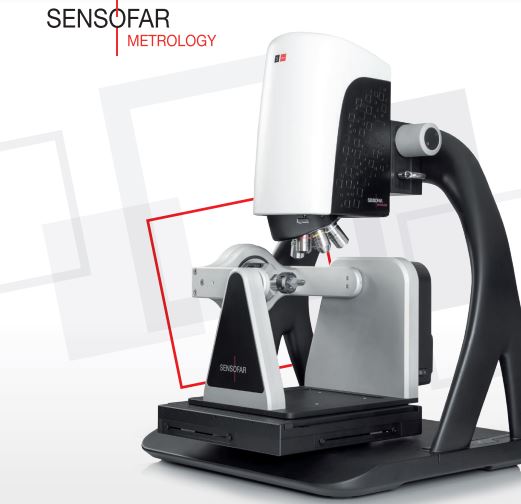

Introducing the Sensofar S neox Five Axis Complete 3D Measurement Solution

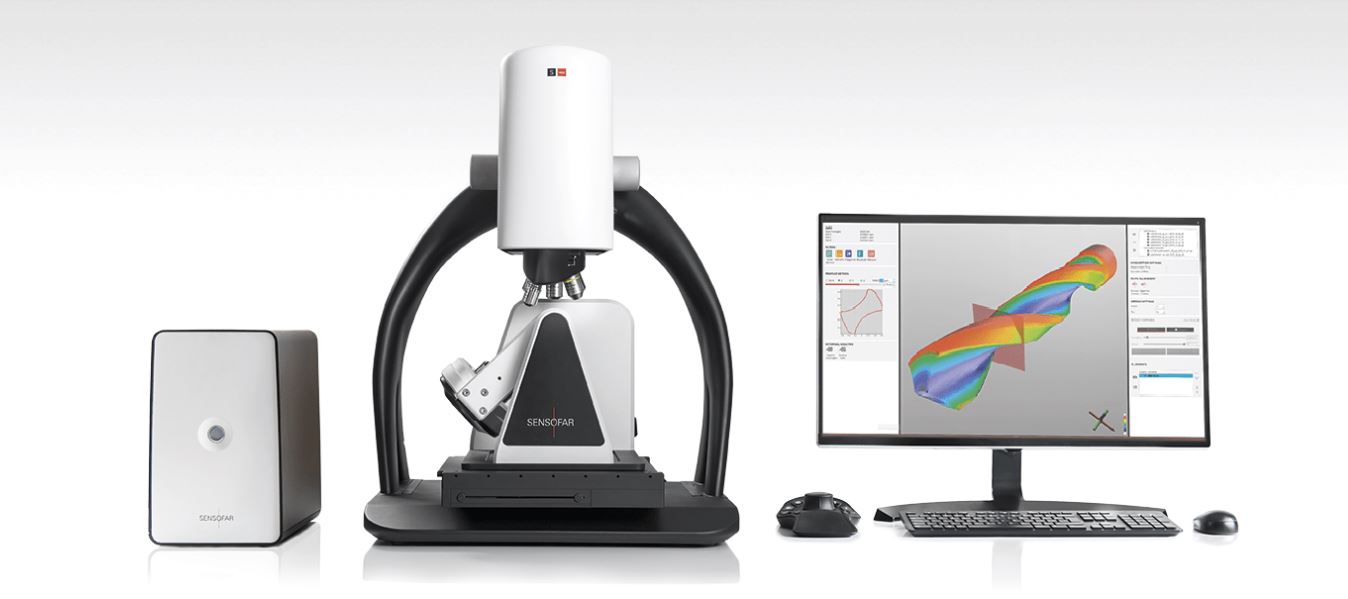

The S neox Five Axis 3D Optical profiler combines a high-accuracy rotational module with the advanced inspection and analysis capabilities of the S neox 3D optical profiler. This enables automatic 3D surface measurements at defined positions which can be combined to create a complete 3D volumetric measurement.

This enables automatic 3D surface measurements at defined positions which can be combined to create a complete 3D volumetric measurement. S neox 3D measurement technologies cover a wide range of scales, including
form (Ai Focus Variation), sub nanometric roughness (Interferometry) or critical dimensions that require high lateral resolution as well as vertical resolution (Confocal).



Sensofar S neox Five Axis Complete 3D Measurement Solution



Sensofar S neox Five Axis Complete 3D Measurement Solution

Key Features

The S neox Five Axis makes it possible to take automatic 3D surface measurements at defined positions, and combine them to create a complete 3D volumetric measurement.

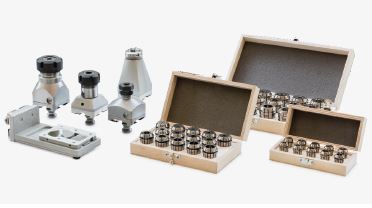

S neox Five Axis is able to measure the sample at different positions of rotation and elevation (perspectives) generating a group of individual measurements. The SensoFIVE software merges all of the surfaces providing a sample surface with high accuracy by using the stacked image information of each single surface measurement. Merging different elevations, the system can provide shape and form information on sharp edges and/or critical surfaces.

  • Complete accessibility
  • Cover a wide range of scales
  • Maximum versatility
  • A complete 3D measurement
  • Measure angles greater than 90º
  • Measurements without limitation
  • Accurate and reliable





Key Benefits

Large Area 3D Optical Metrology System

  • Aerospace & Automotive
  • Forensics
  • Gears
  • Medical Devices
  • Micromanufacturing
  • Sharp Objects
  • Surface Finish
  • Tooling Industry
  • Watch Manufacturing

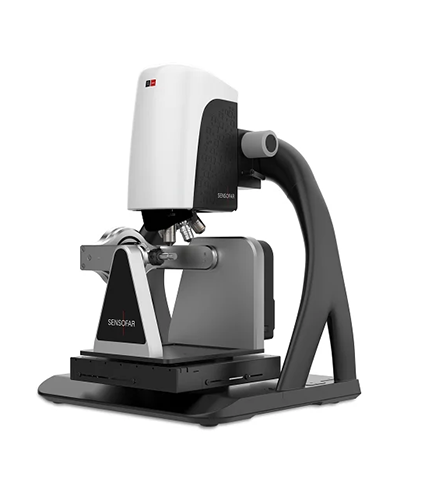

Sensofar S neox Five Axis Complete 3D Measurement Solution


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications

System
Measuring principle Confocal, PSI, ePSI, CSI, Ai Focus Variation and Thin Film
Observation types Brightfield, Sequential Color RGB, Confocal, Interferential Phase Contrast
Camera 5Mpx: 2448×2048 pixels (60 fps)
Total magnification (27″ screen) 60X – 21600X
Display resolution 0.001 nm
Max. Extended measuring area 10×12 (Max. Resolution); 175×175 (Low resolution) (500 Mpx)
Measurement types Image, 3D, 3D thickness, profile and coordinates
XY stage range Motorized: 154×154 mm
LED light sources Red (630 nm); green (530 nm); blue (460 nm) and white (575 nm; center)
Ring light illumination Green ring light compatible with 6 position nosepiece
Sample reflectivity 0.05 % to 100%
Sample weight up to 3 Kg
User management rights Administrator, supervisor, advanced operator, operator
Optional Advanced Software Analysis SensoMAP, SensoPRO, SensoMATCH, SensoCOMP, Geomagic®
Power Line Voltage 100-240 V AC; frequency 50/60 Hz single phase
Computer Latest INTEL processor; 3840×2160 pixels resolution (4K) (27”)
Operating system Microsoft Windows 10, 64 bit
Dimensions HxWxD 945 x 635 x 610 mm (37.2 x 25.0 x 24.0 in)
Environment Temperature 10 ºC to 35 ºC; Humidity <80 % RH; Altitude <2000 m
Weight13 77 kg (170 lbs)
Field of view from 0.018 to 6.7 mm (single shot)
Confocal frame rate 60 fps (5Mpx); 180 fps (1.2 Mpx)
Vertical scan range coarse Linear stage: 40 mm range; 5 nm resolution
Vertical scan range fine Piezoelectric scanner with capacitive sensor: 200 μm range; 1.25 nm resolution
Max. Z measuring range PSI 20 µm; CSI 10 mm; Confocal & Ai Focus Variation 34 mm
