Sensofar S lynx Compact 3D surface profiler

  • Flexible. Powerful.
  • 3D auto function
  • Live image options
  • Designed to be
  • simple and easy to use
  • It is time to play. . .
  • uses premium CF60-2 Nikon objectives
  • Obtain a clear and well-structured report
  • Adaptable column – Flexible options are designed to avoid restrictions between samples with differing heights.



Request a Quote



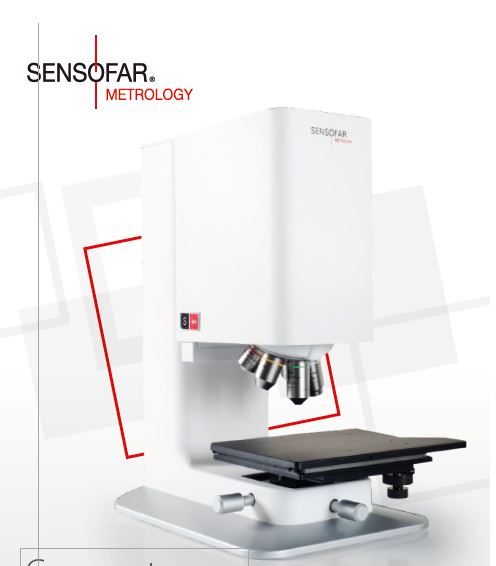

Introducing the Sensofar S lynx Compact 3D surface profiler

Sensofar S lynx is a non-contact compact 3D surface profiler designed for use in industry and research. It has been designed as a versatile system. S lynx is able to measure differing textures, structures, roughness and waviness, all across varying surface scales. The S lynx’s versatility makes it appropriate for a broad range of high-end surface measurement applications. Ideal performance is guaranteed by Sensofar’s proprietary 3-in-1 measurement technology, and complemented by the incredibly intuitive operation of the system with the associated SensoSCAN software.

The S lynx design is incredibly compact, with integrated sensor head and controller that results in a small footprint. This makes for a robust, reliable and versatile system that is easy to install. Vibration isolation pads give the system high stability – in most cases no vibration isolation table is needed.

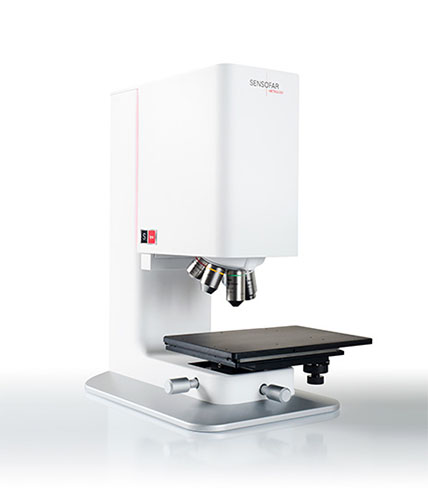

Sensofar S lynx Compact 3D surface profiler

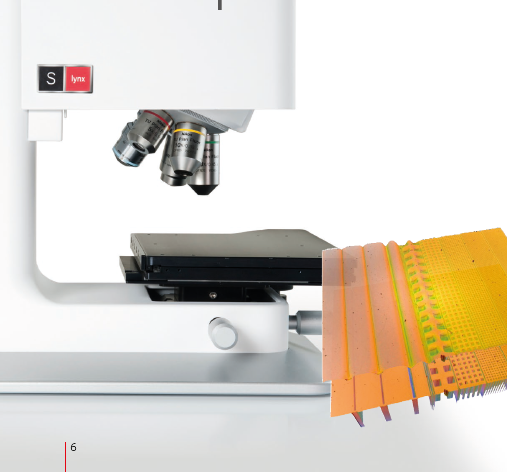

Sensofar S lynx Compact 3D surface profiler

Key Features

Hardware

The S lynx design is incredibly compact, with integrated sensor head and controller that results in a small footprint. This makes for a robust, reliable and versatile system that is easy to install. Vibration isolation pads give the system high stability – in most cases no vibration isolation table is needed.

Large range of objectives

The S lynx uses premium CF60-2 Nikon objectives that exhibit the largest working distance for each NA. Over 30 objectives are available. Combined with an encoded nosepiece that recognizes a change of objective and switches software automatically.

Adaptable column

Sensofar has developed a 4-position column that allows up to 150 mm of height adjustment. Flexible options are designed to avoid restriction between samples with differing heights.

Movement system

The S lynx positioning is composed of a motorized Z stage with 40 mm of travel range and high position accuracy, and a manual XY stage with 40 mm x 40 mm of travel range. A tip-tilt goniometer, resulting in a point of rotation that remains in focus, completes the movement system.

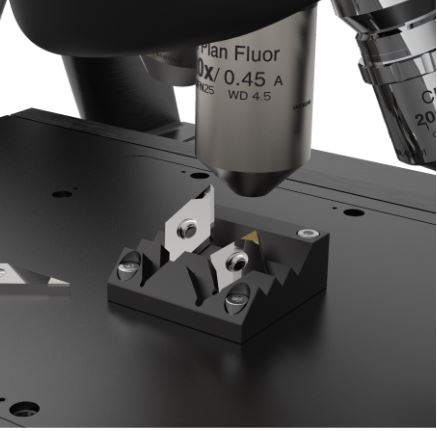

Insert holder

The insert holder is an optional accessory for S lynx, designed to position cutting tools in the precise location needed for measurement. It is compatible with all insert models currently on the market.





Key Benefits

Some of the applications you can solve by measuring with our S lynx compact 3D surface profiler, are in the following fields:

  • Automotive
  • Consumer electronics
  • Energy
  • LCD
  • Materials science
  • Microelectronics
  • Micromanufacturing
  • Micropaleontology
  • Optics
  • Tooling
  • Semiconductors
  • Watch manufacturing




Sensofar S lynx Compact 3D surface profiler


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications

System
Measurement array 1232 x 1028 pixels
LED light source white (lifetime 40000 h)
XY travel range 40 mm x 40 mm (1.5” x 1.5”)
XY stage 240 mm x 155 mm (9.4” x 6.1”)
Manual goniometer +/– 3º
Maximum sample weight 10 kg (22 lbs)
Sample height Image, 3D, 3D thickness, profile and coordinates
XY stage range Motorized: 154×154 mm
LED light sources Red (630 nm); green (530 nm); blue (460 nm) and white (575 nm; center)
Ring light illumination Green ring light compatible with 6 position nosepiece
Sample reflectivity 0.05 % to 100%
Sample weight up to 150 mm (6”) (adaptable)
Z travel range 40 mm (1,6”)
Z stage linearity <0.5 μm/mm
Z stage resolution 2 nm
Max. vertical scanning range Focus Variation 25 mm; Confocal 36 mm; VSI 7 mm
Step height repeatability < 3 nm
Sample reflectivity 0.05 to 100 %
Display resolution 0.01 nm
Computer Latest INTEL processor; 2560 x 1440 pixel resolution (27”)
Operating system Microsoft Windows 10, 64bit
System Line Voltage 100-240 V AC; frequency 50/60 Hz single phase
Environment Temperature 10-35ºC; Humidity <80 % RH; Altitude <2000 m
