Description

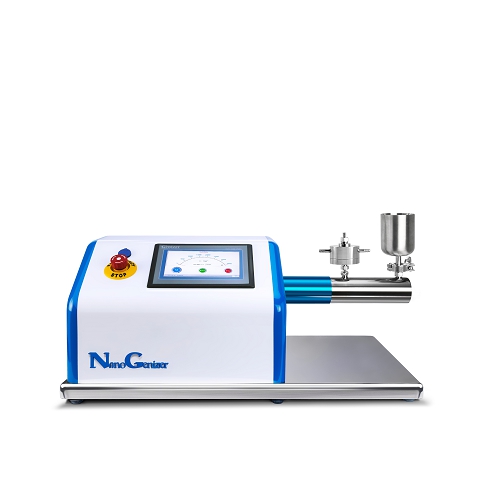

High-pressure Homogenizer for lipid nanoparticle preparation (max. pressure 45,000 psi).
Application of NanoGenizer High-Pressure Homogenizer:
- Cell disruption and particle size reduction
- Nanoemulsions
- Nano dispersions
- Liposomes
- Deagglomeration
Performance of NanoGenizer High-Pressure Homogenizer:
- Energy efficient, 1/2 energy loss of the most homogenizers
- Small (integrated design delivers the light weight and small dimensions)
- Smart (programming control systems confer diligent functions: controlled inlet volume ± 0.1mL; auto stop with time/volume)
- Silent (noiseless performance)
- Strong (more than 150 mL/min at 30,000 psi)
- CE compliant and RoHS compliant
Pressure:
15,000psi
|
20,000psi |
25,000psi |
30,000psi |
40,000psi |
45,000psi |
Flow Rate:
| 60mL/min |
100mL/min |
120mL/min |
150mL/min |
180mL/min |
200mL/min |
230mL/min |
Syringe Inlet&Outlet:
| 20mL*2 |
30mL*2 |
50mL*2 |
100mL*2 |
300mL*2 |
Option: Inlet Stainless Cylinder:
| None |
500mL |
1000mL |
2000mL |

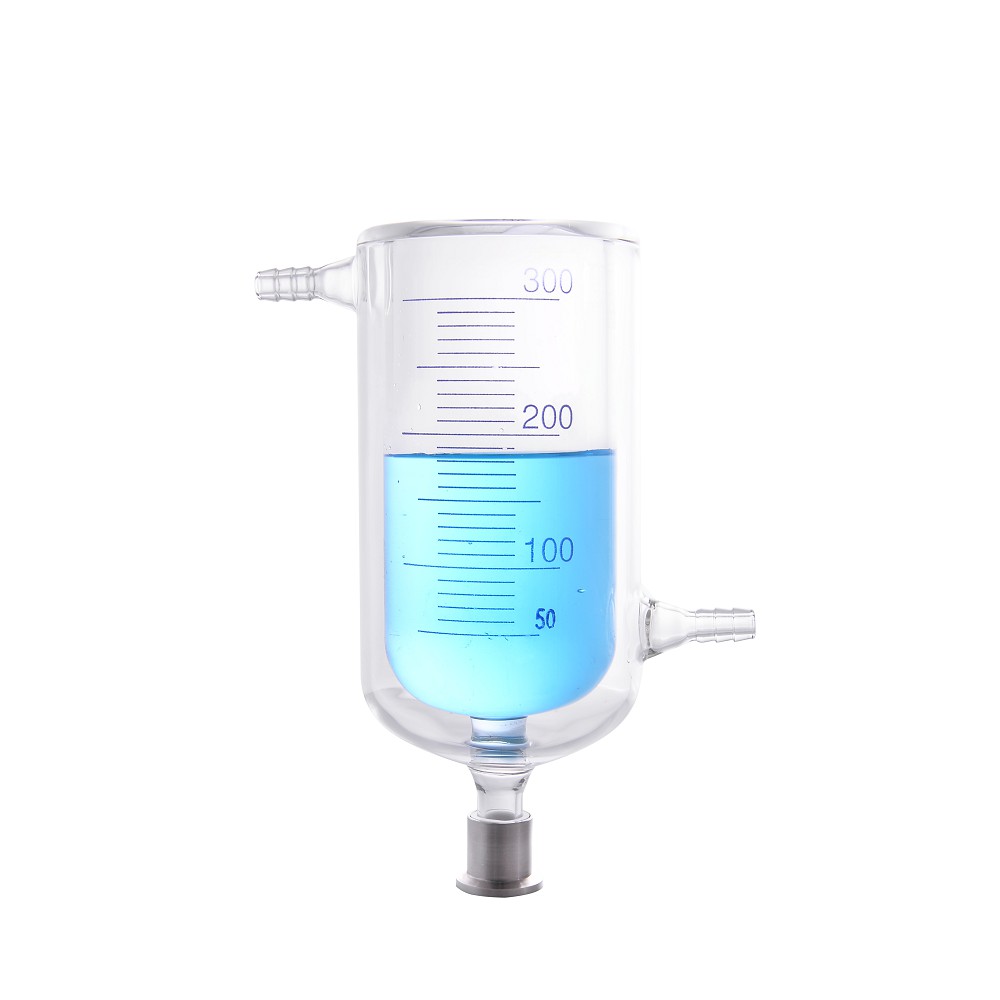

300mL-Glass-Jacketed |
Option: Heat Exchanger:
| None |
HPE-100 |
HPE-150 |
HPE-150-3D |
Voltage:
Warranty:
| Standard 1 year |
2 year |
3 year |
4 year |
5 year |
