Description

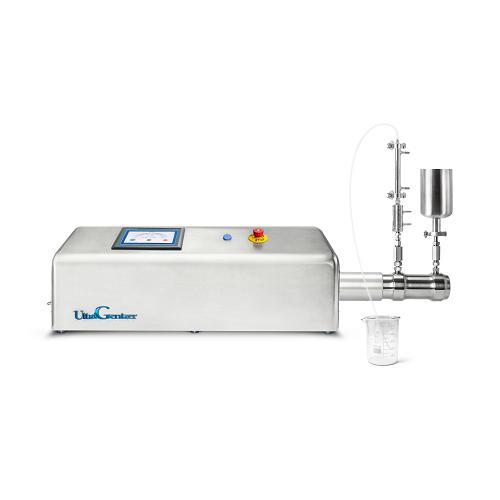

The UltraGenizer series high-pressure microfluidics homogenizers are a new generation equipped with diamond interaction chambers. These highly flexible pilot-scale devices feature a simple and elegant design. With a single pump system, the pressure can be adjusted flexibly from 0 to 60,000 psi.
Using ultra-high pressure microfluidics technology, materials can be homogenized to a stable and uniform nanometer level, achieving particle size reduction, transparency, increased stability, active substance delivery, and improved texture and taste. They meet the high-end nano-homogenization needs of the pharmaceutical, biotechnology, cosmetics, food, and special nano-material industries.
Application of UltraGenizer High Shear Homogenizer:
- Nanoemulsions
- Nano dispersions
- Liposomes
- Nanoparticles
- Graphene
- Deagglomeration
Performance of UltraGenizer High Shear Homogenizer:
- Energy efficient, 1/2 energy loss of the most homogenizers
- Small (integrated design delivers the light weight and small dimensions)
- Smart (programming control systems confer diligent functions: controlled inlet volume ± 0.1mL; auto stop with time/volume)
- Silent (noiseless performance)
- Strong (more than 150 mL/min at 60,000 psi)
- CE-compliant and RoHS-compliant

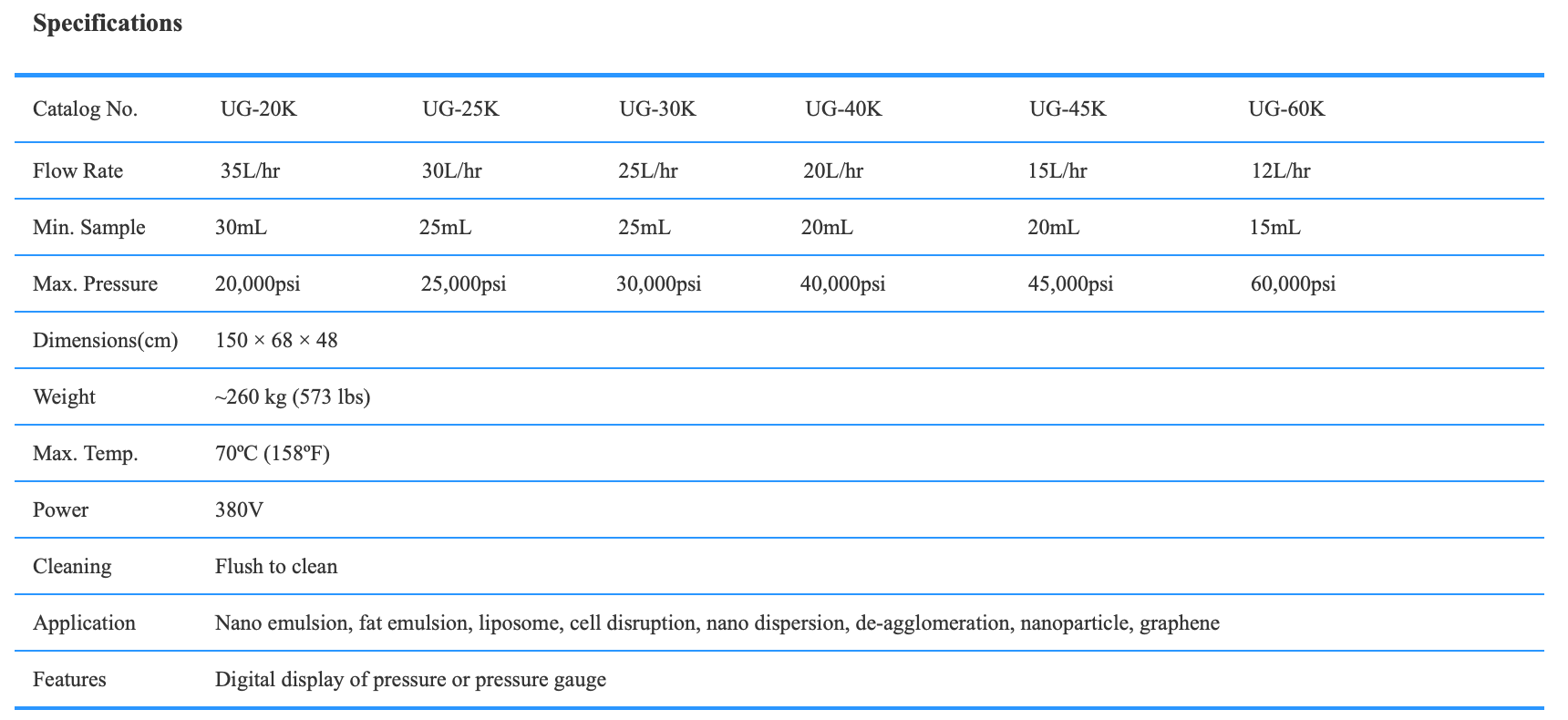

Pressure:
| 20,000psi | 25,000psi | 30,000psi | 40,000psi | 45,000psi | 60,000psi |
Flow Rate:
| 15L/hr | 20L/hr | 25L/hr | 30L/hr | 35L/hr | 12L/hr |
Syringe Inlet&Outlet:
| 10mL*2 | 20mL*2 | 50mL*2 | 100mL*2 | 200mL*2 | 500mL*2 |

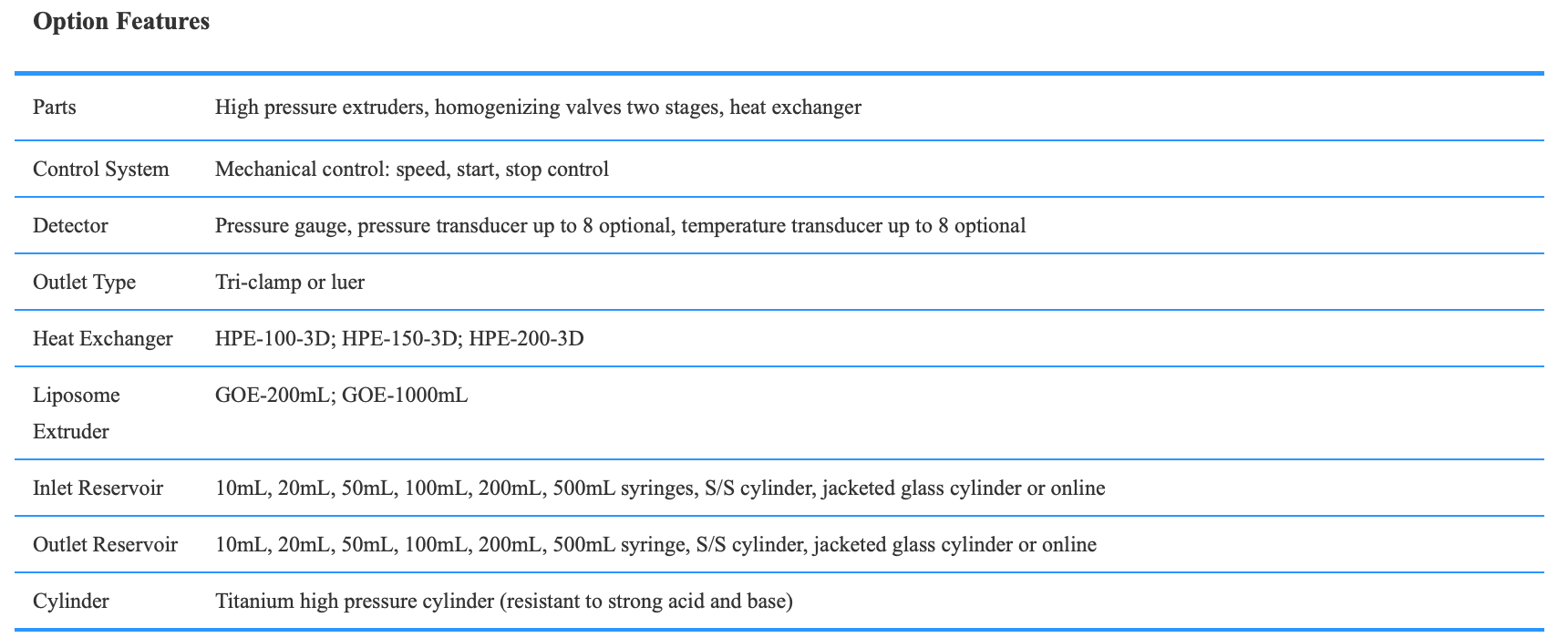

Option: Inlet Stainless Cylinder:
| None | 500mL | 1000mL | 2000mL | 300mL-Glass-Jacketed |
Option: Heat Exchanger:
| None | HPE-100 | HPE-150 | HPE-150-3D |
Voltage:
| 380V | 415-440V |
Warranty:
| Standard 1 year | 2 year | 3 year | 4 year | 5 year | |
