CERAMAKER C3600 ULTIMATE

the solution for mass production

  • Industrial printer
  • Stereolithography (laser)
  • Supportless technology
  • Reduced production cost per piece
  • Reduced cleaning time
  • Perfectly suited for printing in large series



SKU: C900 FLEX-1. Categories: , , , .
Request a Quote

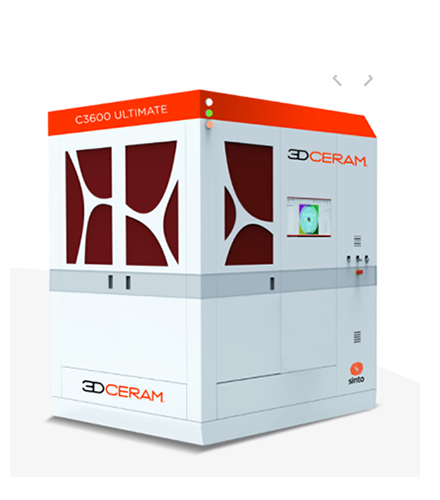

Introducing the CERAMAKER C3600 ULTIMATE

<iframe width=”900″ height=”506″ src=”https://www.youtube.com/embed/yWanrzUyi4Y” frameborder=”0″ allow=”accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture” allowfullscreen></iframe>

CERAMAKER C3600 ULTIMATE



CERAMAKER C3600 ULTIMATE

Key Features

First printer developed by 3DCeram, the C900 FLEX gets the benefits of 15 years of know-how and optimization.

To print functional parts or small series
Ceramic printed parts have the same properties as those produced in conventional ways (moulding, machining and injection)
Open parameters
3 sizes of building platform : 100 x 300 mm, 200 x 300 mm and 300 x 300 mm
Free link technology



Key Benefits

SAM (Small Amount of Material) option : to launch a fast printing run with only 100 mL of slurry


CERAMAKER C3600 ULTIMATE


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

Specifications

Approx. ……………………………… 2100 x 1800 x 2500 mm (WxDxH)
Dimensions of the printing plate …………… 600 x 600 x 300 mm
Approx. ……………………………………… .. 4000 kg
Power supply …………………………. 220-240 VAC / 50Hz
Electric power ………………………………. 4 kW
Number of light source …………… .. 4 UV Lasers
Laser beam diameter ……………………… .. ~ 60 μm
UV wavelength ……………………… ……… .. 405 nm
Layer thickness ………………………………… 0.025 – 0.125 mm
Required ambient temperature …………………. 20-25 ° C
Temperature variation …………………………. 1 ° C / hour
Humidity level ……………………………………… 50%
Compressed air ………………………………………… .. 6 bars dry
Hybrid Option ……………………………………… .. At a later stage
