3DCERAM C100 EASY LAB

The freedom to develop your own process

  • Dedicated to R&D development, the C100 LAB opens opportunities to​
  • Develop materials with a low quantity of material
  • Qualify design
  • Print parts to show case
  • User friendly
  • Open parameters
  • Stereolithography laser
  • Free link support technology
  • Controlled quantity of printed ceramic slurry
  • Accessible for persons with reduced mobility
  • Start a printing run with only 60 mL of ceramic formulation
  • Cartridge of 180 mL, 360 mL, 600 mL or 920 mL available)
  • Option : Pressure tank (1,5 L)





Request a Quote



Introducing the 3DCERAM C100 EASY LAB

Printing Without Supports

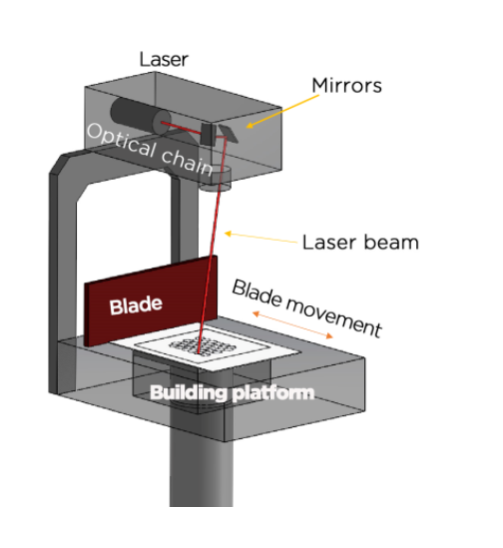

Top-down stereolithography enables technology that can print without supports. The tray moves down as the part itself is built from the bottom-up. 3DCeram is able produce consistent parts with high precision and fine details.

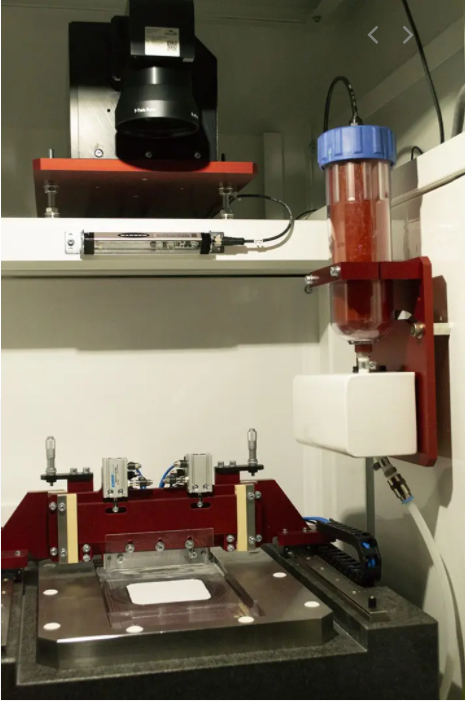

The feeding of the printing material is done by a printing material is fed into a cartridge which is simply filled at the beginning of the printing cycle. It is possible to re-fill the cartridge during the printing cycle.

3DCERAM C100 EASY LAB



3DCERAM C100 EASY LAB

Key Features

• Dedicated to R&D development, the C100 LAB opens opportunities to​
• Develop materials with a low quantity of material
• Qualify design
• Print parts to show case
• User friendly
• Open parameters
• Stereolithography laser
• Free link support technology
• Controlled quantity of printed ceramic slurry
• Accessible for persons with reduced mobility
• Start a printing run with only 60 mL of ceramic formulation
• Cartridge of 180 mL, 360 mL, 600 mL or 920 mL available)
• Option : Pressure tank (1,5 L)



Key Benefits

3DCeram has a wide selection of ceramics developed for use with the C100 EASY printer.

The materials are able to obtain homogenous layers for maximum quality in final products. They guarantee a level of quality recognized by the most demanding industries.

3Dceram offers a catalogue of ceramics developed for specific needs


3DCERAM C100 EASY LAB


Trust the Experts at Spectra Research Corporation

3DCERAM C100 EASY LAB

Specifications

Approx. Dimensions 940 x 1060 x 1826 mm (LxPxH
Build platform size 100 x 100 x 150 mm
Approx. Weight 750 kg
Electrical requirements 220-240 VAC / 50Hz
Electric power 2 kW
Light source UV Laser
Laser spot diameter ~ 60 μm
UV Wavelength 405 nm
Layer thickness  0.010 – 0.125 mm
Optimal room temperature 20-25°C
Maximum room temperature variation 1°C/hour
Relative humidity 50%
Compressed air 6 bars dry
6 bars dry Hybrid option Available
