Description
The GP20 Plastic Shredder is a smart, powerful machine built to help you recycle plastic waste efficiently. It combines both shredding and granulation in one unit, making it ideal for labs, manufacturers, and anyone wanting to turn scrap into reusable material.
How it works:
- Input your plastic items or scraps into the hopper, which is designed to feed material safely and smoothly.
- The shredder section, equipped with 14 blades (you can use combinations of 2, 3, or 7-tooth blades), cuts the plastic into smaller pieces.
- After that, the granulator rotor with a 3-blade design and 3.5 mm filter screen further breaks down the pieces into uniform granulates.

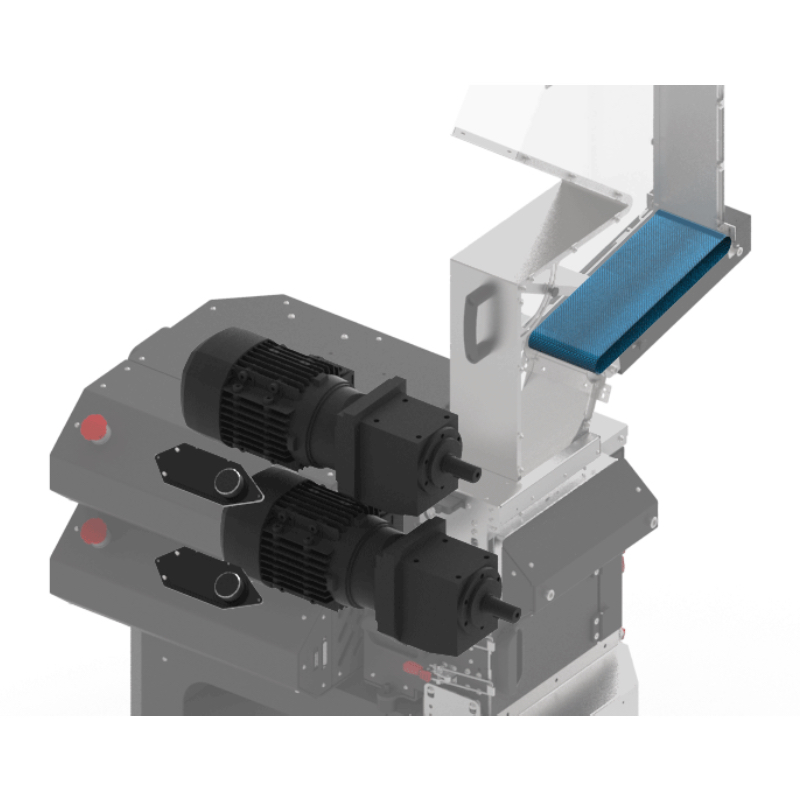

- The system is powered by two motors (750 W each, total ~1,500 W), one for the shredder and one for the granulator, so both stages run smoothly.
Key Features & Automation:

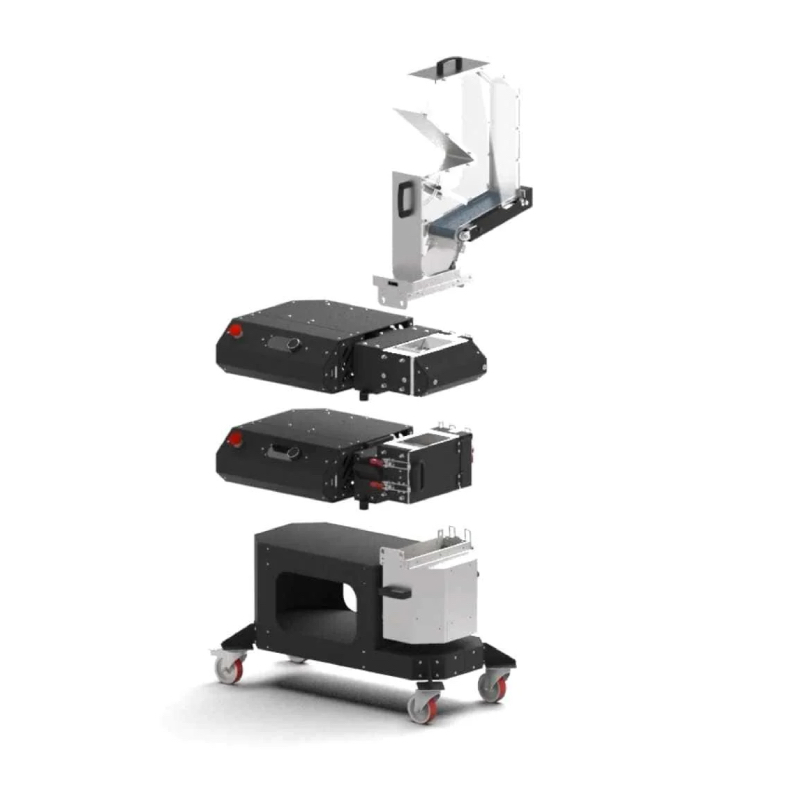

- Modular design: you can use the shredder and granulator together or separately depending on your workflow.
- Smart control systems: automatic feed rate, reversal of blades to clear jams, and temperature monitoring to prevent melting.

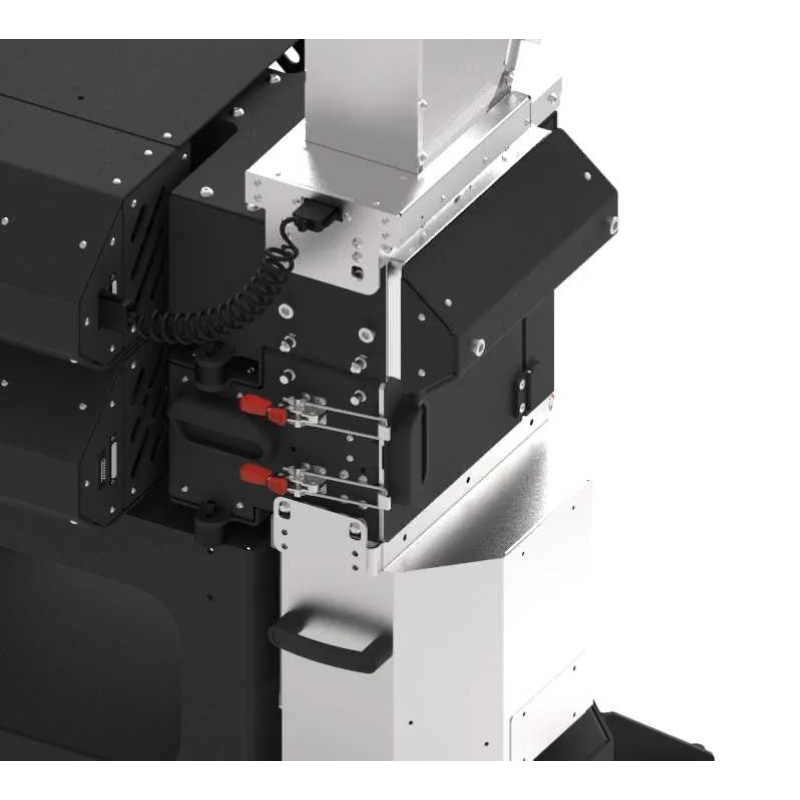

- Safety built in: The hopper and interlocks ensure the machine won’t run if covers or containers aren’t in place.

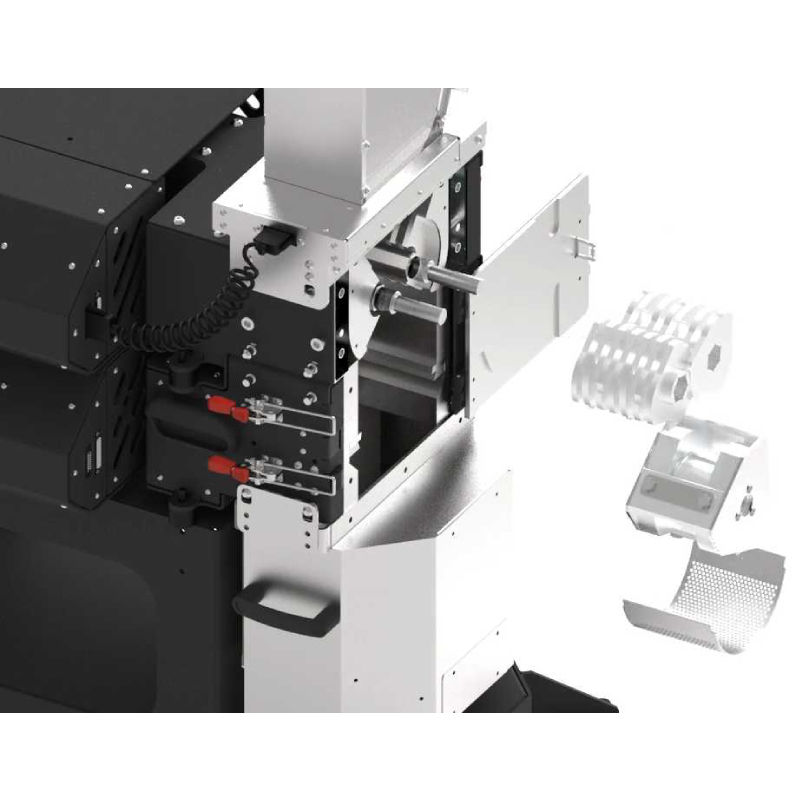

- Easy to maintain: Many internal parts are accessible and removable for cleaning.

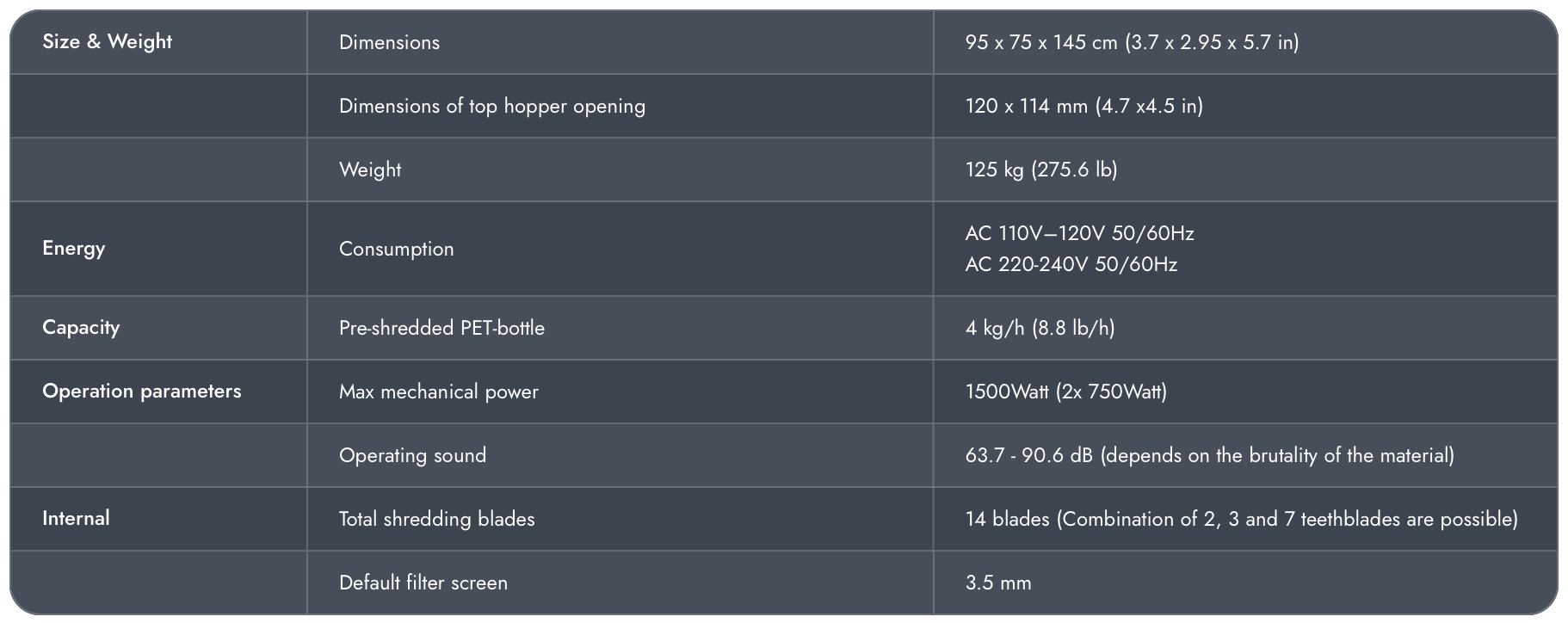

Specifications & Dimensions:
- Footprint: 95 cm (W) × 75 cm (D) × 145 cm (H)
- Top hopper opening: ~120 × 114 mm
- Weight (hybrid model): ~125 kg; shredder-only ~85 kg
- Power & Voltage: 1,200 W per module (depending on region voltage)
Materials & Use Cases:
The GP20 is compatible with a wide range of thermoplastics: PLA, ABS, PETG, HDPE, PP, PC, PEEK, etc.
That versatility makes it ideal for recycling failed print jobs, injection molding scraps, lab waste, or prototype cleanup.
Why It’s a Smart Choice:
- One unit, dual capability: shred & granulate in one pass
- Consistent output under 4 mm for easy reuse
- Smart system reduces user oversight
- Modular & maintainable for long-term use
- Safe design keeps operators protected
- Material flexibility supports many workflows
