Assembly Diamond Interaction Chamber

Assembly Diamond Interaction Chamber

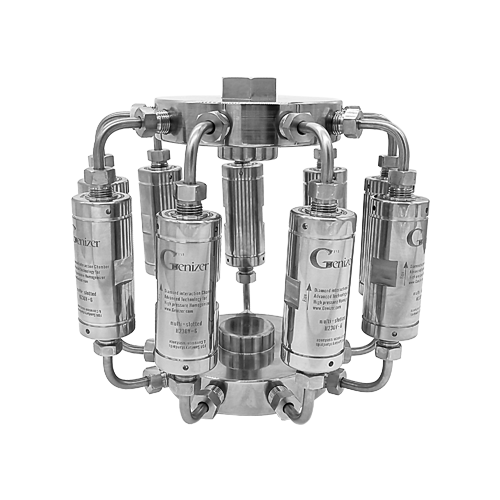

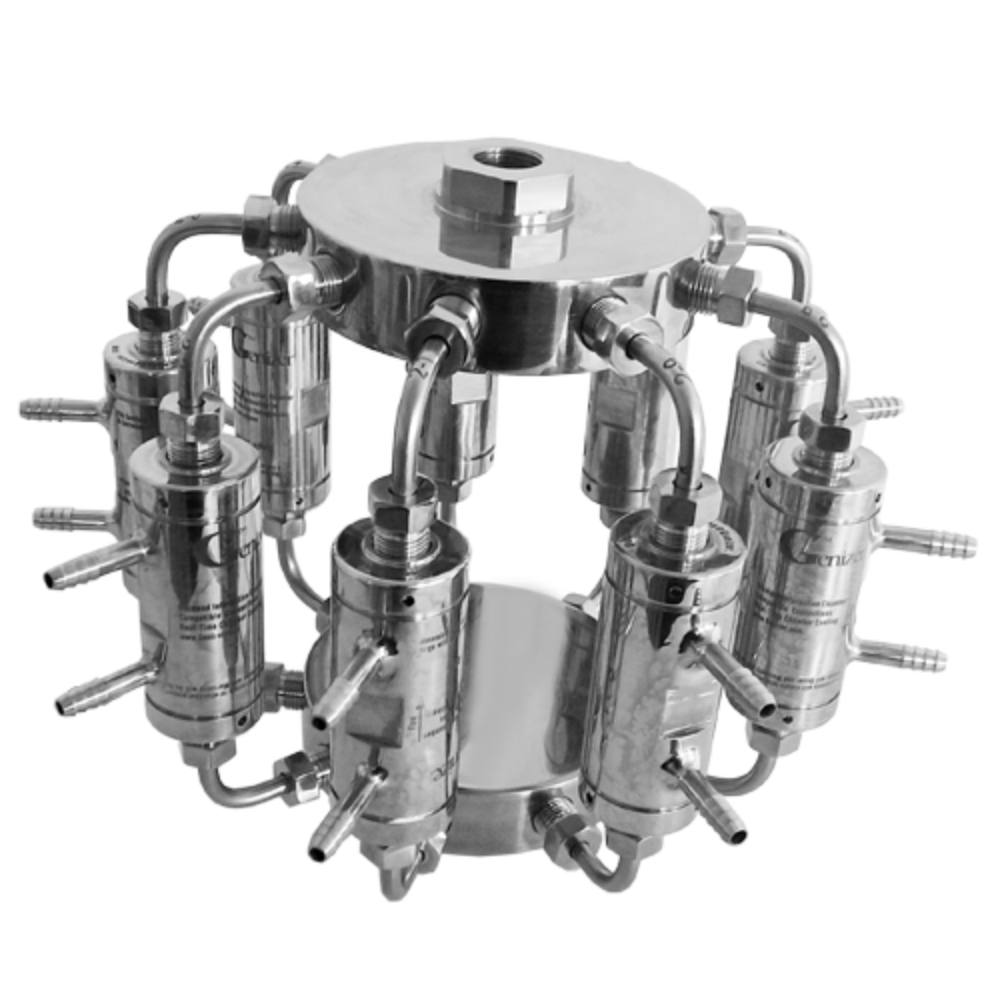

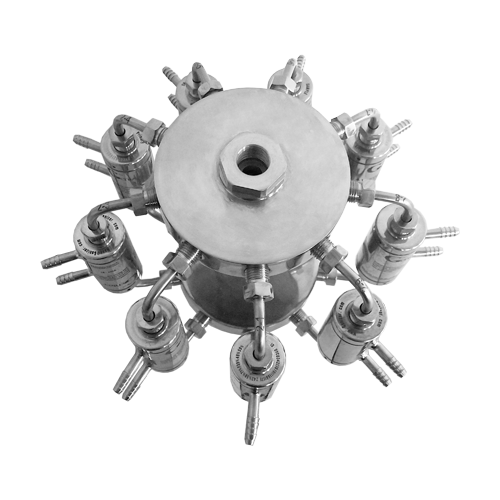

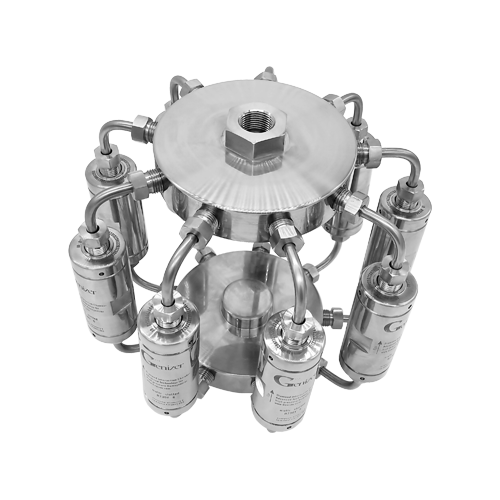

Diamond Interaction Chamber (DIXC) is used to produce uniform nanoparticles in a high-pressure homogenizer. The fixed geometry within the DIXC is intended to create a uniform processing profile so that all materials will be processed with equal disruptive forces. Single-slotted interaction chambers have a single microchannel and are ideal choices for small batch research, while the multi-slotted interaction chamber comprises multiple microchannels in parallel, which can be used at industrial scales, by increasing the flow rate through the DIXC but with equal processing forces.






Description

Diamond Compatible Interaction Chamber up to 45,000 psi. Warranty: 1 year.

Application:

Nanoemulsion, cell disruption, nanodispersion, deagglomeration, liposome

Performance:

  • Full replacement for the chamber of Microfluidizer processors
  • Electro-polishing and inner passivation for pharmaceutical applications
  • Real-time cooling option to reduce oversized particles
  • Lower cost and higher quality

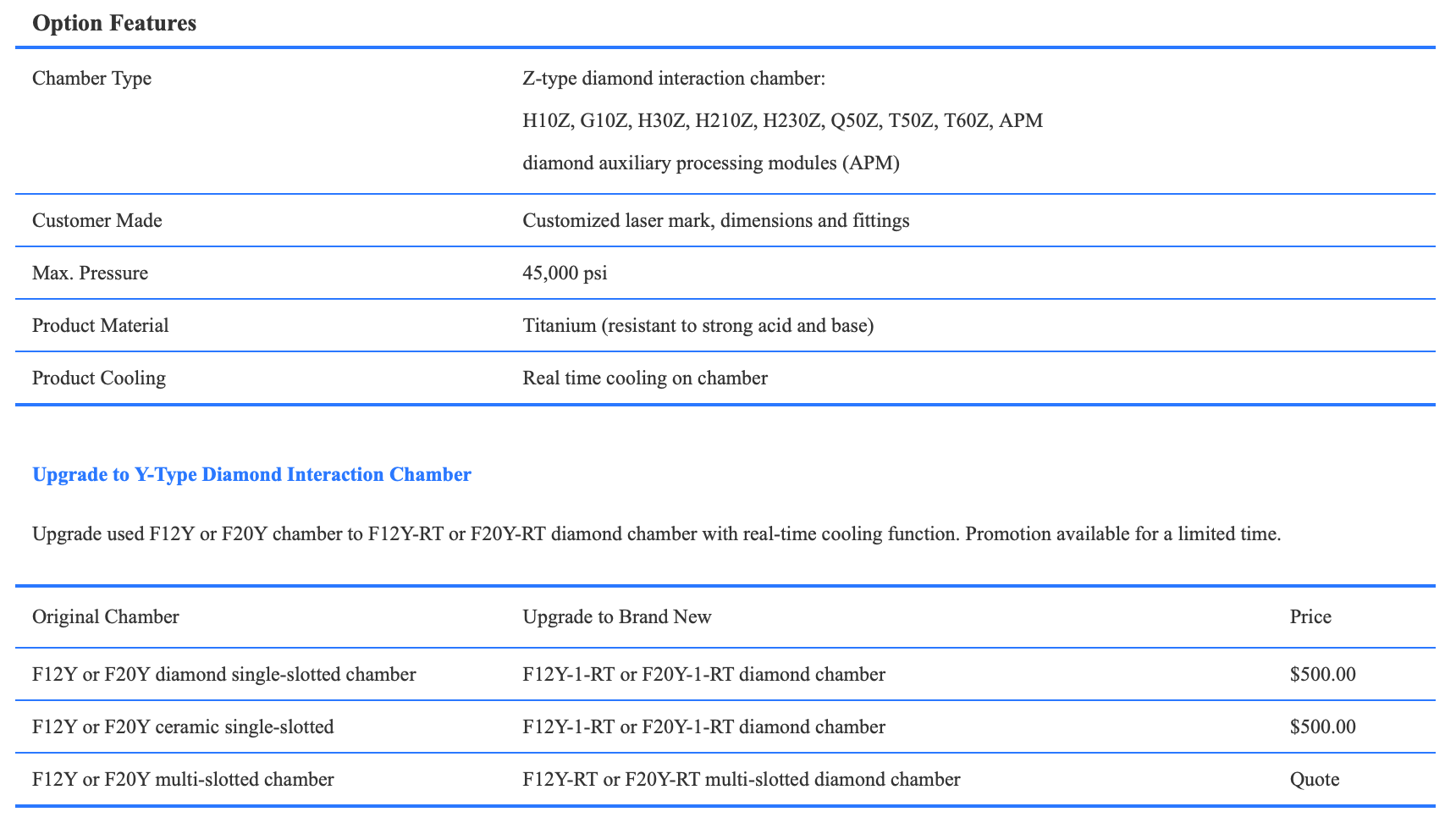

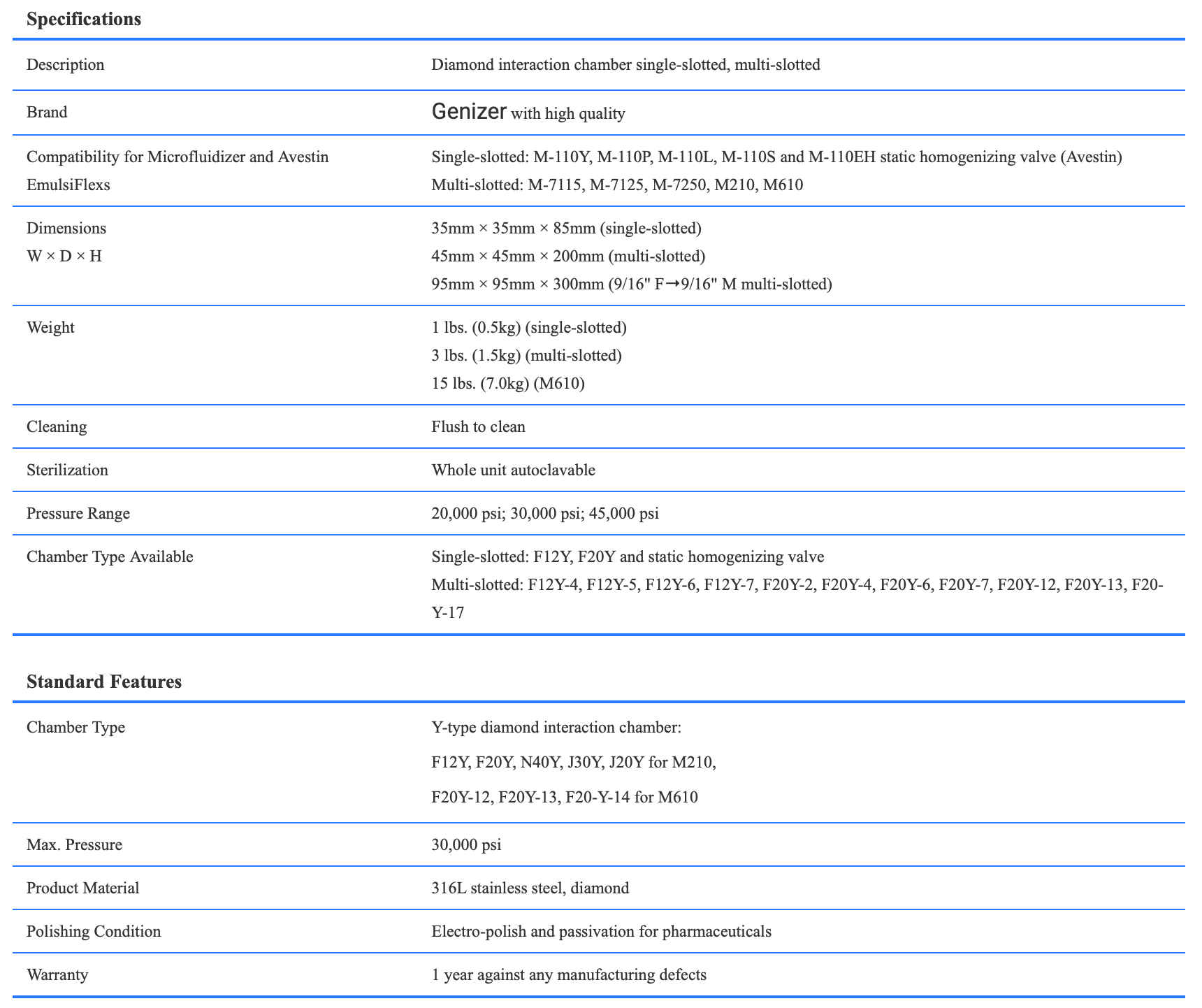

Assembly Diamond Interaction Chamber product specifications



Download Data Sheet
