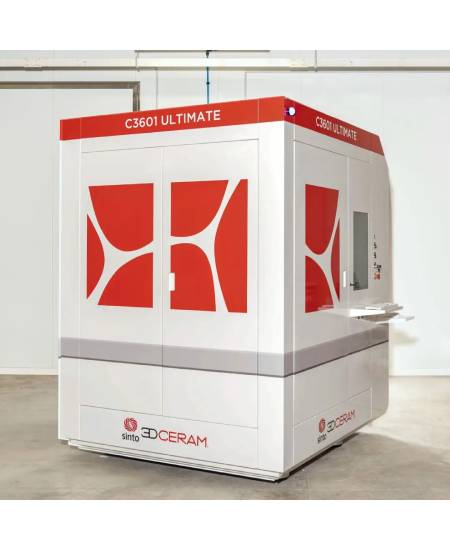

C3601 ULTIMATE 3D Printer for Industrial Mass Production
The C3601 ULTIMATE 3D Printer represents the next level of industrial ceramic additive manufacturing. Engineered by 3DCeram Sinto, this high performance system is specifically developed for companies seeking large scale production capabilities and reliable high volume output.
Printer with Large Build Capacity
One of the most powerful advantages of the C3601 ULTIMATE 3D Printer is its impressive build platform of 600 x 600 x 300 mm. This extra large volume allows manufacturers to produce very large ceramic parts or run extensive batches of smaller components in a single production cycle.
The stereolithography process builds parts from the bottom up while the platform moves downward. This controlled movement ensures uniform shrinkage after firing, leading to enhanced dimensional precision and exceptional surface quality. The result is consistent repeatability across production runs, which is essential for industrial applications.
Printer with Four UV Lasers
Equipped with four UV lasers operating at 405 nm, the C3601 ULTIMATE 3D Printer enhances productivity while maintaining accuracy. The approximately 60 µm laser beam diameter enables fine detail reproduction even on large parts. This multi laser configuration supports faster build times and greater throughput, reducing production cost per part.
The support free technology simplifies part removal and significantly reduces cleaning time. Manufacturers benefit from streamlined workflows and lower labor requirements, making this printer an efficient production investment.
3D Printer Compatible Materials
The system supports advanced ceramic materials including Zirconia, Alumina, and Silicon Nitride. These photosensitive ceramic formulations are optimized for homogeneous layer formation and consistent printer feeding. They deliver excellent mechanical strength, wear resistance, thermal stability, and corrosion resistance.
Designed for mass customization and scalable production, the C3601 ULTIMATE 3D Printer allows companies to move confidently from prototyping on smaller systems to full scale manufacturing without changing core technology.
Technical Specifications
| Specification | Details |
| Product Name | C3601 ULTIMATE 3D Printer |
| Technology | UV Laser Stereolithography |
| Print Bed Dimensions | 600 x 600 x 300 mm |
| Approximate Dimensions | 2050 x 1800 x 2500 mm |
| Approximate Weight | 4000 kg |
| Laser Configuration | 4 UV Lasers |
| Laser Power | 300 mW |
| UV Wavelength | 405 nm |
| Laser Beam Diameter | Approximately 60 µm |
| Z Axis Movement | 0.025 to 0.125 mm |
| Power Supply | 220 to 240 VAC 50 Hz |
| Required Ambient Temperature | 20 to 25°C |
| Maximum Temperature Variation | 1°C per hour |
| Relative Humidity | 50% |
| Compressed Air | 6 bars dry |
| Hybrid Option | Available at later stage |
| Printing Without Supports | Yes |
| Production Type | High volume and large part manufacturing |
