Biolin Theta Flex Demo Unit

Theta Flex Auto 2 package with automatic double dispensing, droplet placement and horizontal sample movement. Automatic surface tension, contact angle and surface free energy. Includes Theta Flex frame with a high resolution / high speed camera, optics with zoom and focus, automatic x-direction sample stage, automatic dispenser holder for single/double dispenser, 2 automatic pipette tip dispensers and all-inclusive OneAttension software (TF300 + T320 + T302 + 2 x C311-300).

SKU: Biolin Theta Flex Demo Unit Category:
Request a Quote

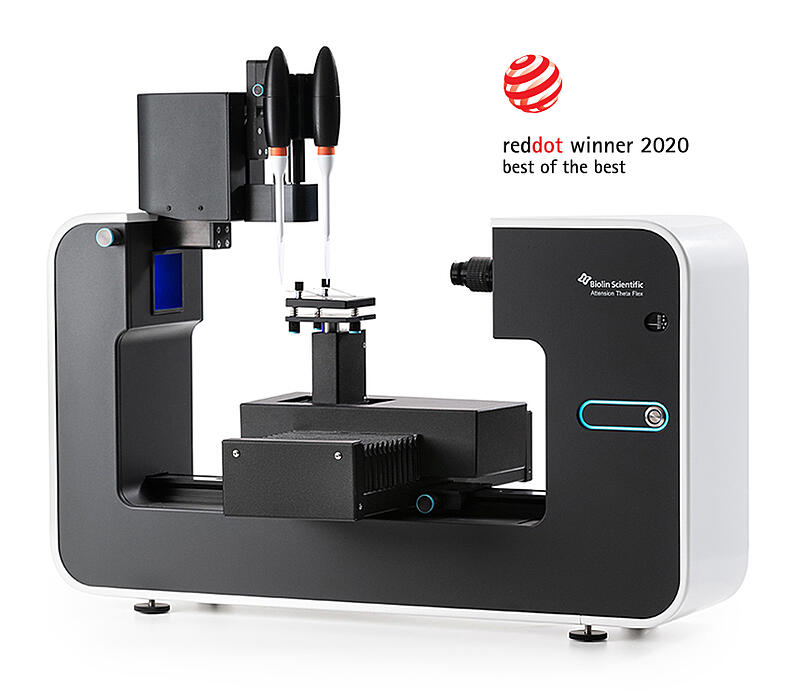

Introducing the Biolin Theta Flex Demo Unit

Attension Theta Flex is the contact angle meter that enables all measurements in one instrument. It is designed for reliable and repeatable measurements of wettability and adhesion, even in the most demanding industrial and research applications.



Theta Flex Auto 2 package with automatic double dispensing, droplet placement and horizontal sample movement. Automatic surface tension, contact angle and surface free energy. Includes Theta Flex frame with a high resolution / high speed camera, optics with zoom and focus, automatic x-direction sample stage, automatic dispenser holder for single/double dispenser, 2 automatic pipette tip dispensers and all-inclusive OneAttension software (TF300 + T320 + T302 + 2 x C311-300).



Note: The manual syringe and needle (C205M) are recommended in addition to occasional manual tests.

Biolin Theta Flex Demo Unit



Biolin Theta Flex Demo Unit

Key Features

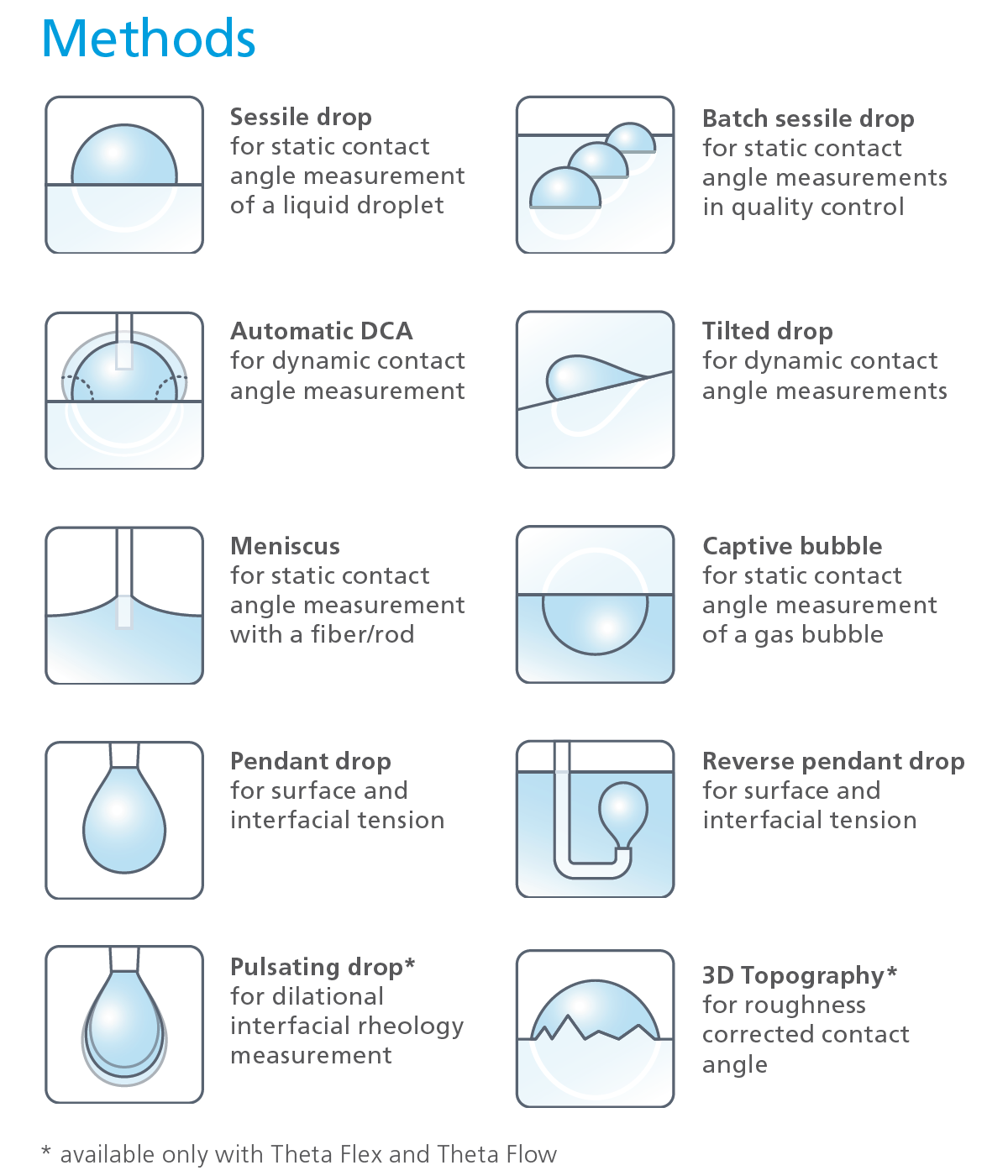

  • Static contact angle: Sessile drop, captive bubble and meniscus methods
  • Dynamic contact angle: Dynamic contact angle, advancing and receding contact angle, contact angle hysteresis and roll-off angle
  • Surface free energy: Sessile drop, captive bubble and meniscus methods
  • Surface- and interfacial tension: Pendant drop and reverse pendant drop methods
  • Roughness-corrected contact angle and 3D surface roughness*: Fringe projection phase shifting method
  • Interfacial dilatational rheology*: Pulsating drop method

*Optional features



Key Benefits

  • One instrument for all your needs:All the measurements are readily included in the software. The modular design enables all applications to be fulfilled with one instrument and the instrument can be tailored for your needs.
  • Results you can rely on:High-end imaging together with sophisticated analysis algorithms detects and analyzes the contact angle and surface free energy precisely. The effect of roughness to wettability can be measured with the unique 3D Topography module.
  • Speed and repeatability:All steps from loading the measurement to performing it and analyzing the data can be automated. The need for time-consuming preparations and cleaning are removed with the disposable liquid tips.

Biolin Theta Flex Demo Unit


Trust the Experts at Spectra Research Corporation

Spectra Research Corporation (SRC) offers a range of innovative high-quality scientific products and laboratory services to industrial and scientific markets throughout Canada.

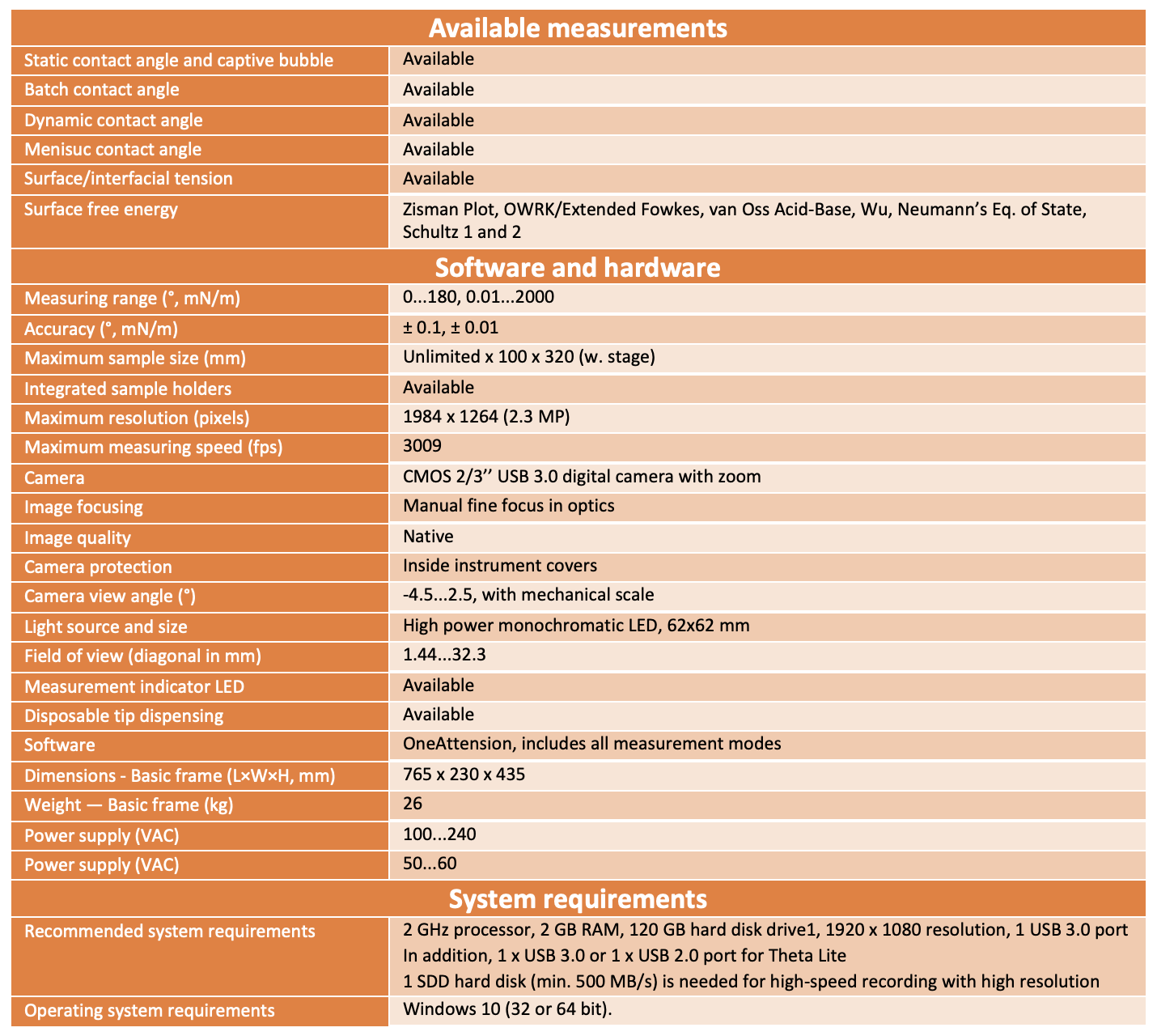

Specifications

Flex Specifications
