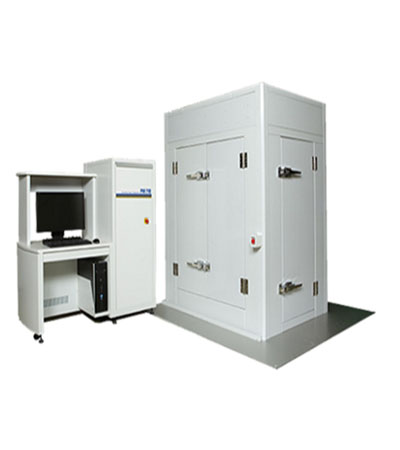

PHI 710 Scanning Auger Nanoprobe

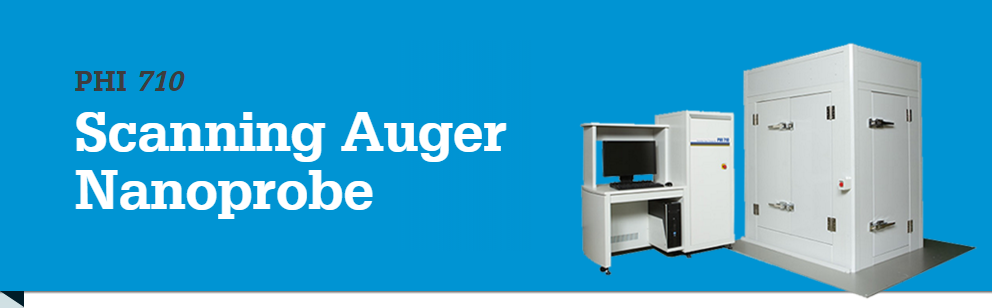

PHI 710 Scanning Auger Nanoprobe

  • Cylindrical mirror analyzer (CMA)
  • Coaxial 25 kV field emission electron gun
  • Scintillation secondary electron detector
  • High energy resolution module
  • 5 axis automated sample stage
  • 5 kV floating column Ar+ ion gun
  • SmartSoft-Auger instrument control software
  • MultiPak data reduction software
  • Acoustic Enclosure
  • Ion pumped main chamber






Description



The PHI 710 Scanning Auger Nanoprobe is a unique, high performance Auger Electron Spectroscopy (AES) instrument that provides elemental and chemical state information from sample surfaces and nano-scale features, thin films, and interfaces. Designed as a high performance Auger, the PHI 710 provides the superior Auger imaging performance, spatial resolution, sensitivity, and the spectral energy resolution needed to address your most demanding AES applications.
  • Unique Technology
  • Superior Auger Imaging
  • Nanoscale Thin Film Analysis
  • SmartSoft-AES
  • MultiPak Data Reduction Software
  • Features & Accessories

Unique Technology

Coaxial Analyzer / Electron Gun Geometry

Coaxial Analyzer SE Image

SE image

NI Map

Ni map

 In Map

In map

PHI’s coaxial electron gun and analyzer geometry provides the sensitivity and unobstructed vision needed to fully characterize the microstructures that exist on most real world samples with Auger Electron Spectroscopy. In this example, Auger data is obtained from all sides of particulates and between particles with equally high sensitivity.

 Cylindrical Mirror Analyzer With Coaxial Field Emission Electron Gun





  • Cylindrical Mirror Analyzer (CMA) with coaxial field emission electron gun
  • Imaging of textured or curved samples without analyzer induced shadowing
  • High sensitivity at all sample tilt angles

Superior Auger Imaging

Secondary Electron Image

Figure A: SE image

SN Has Segregated to the Nodule/Iron/Interface

Figure B: Fe (green), C (blue), and Sn (yellow)

Complex Composition of a Small Precipitate

Figure C: SE image of small precipitate

 Complex Composition of a Small Precipitate

Figure D: Mg (green), Ca (blue), and Ti (red)

The secondary electron image in figure A shows the microstructure of a ductile iron fracture surface including graphite nodules and craters where graphite nodules have fallen out as a result of the fracture. The AES maps in figure B show the ability to map across the graphite nodule and the crater where Sn has segregated to the nodule/iron interface. The SE image and AES maps in figures C and D show the complex composition of a small precipitate observed in figure B. Only PHI Auger instruments with coaxial electron gun and analyzer geometry provide such a complete compositional picture of a micro-structured sample surface.

  • CMA with coaxial electron gun
  • High stability analysis platform
  • Robust image registration software











Nanoscale Thin Film Analysis

The sample shown in the SEM image contains a defect that appeared in a thin nickel film deposited on a silicon substrate after it was annealed to form a nickel silicide at the interface. Multi-point depth profiles obtained with a 20 nm diameter electron beam for analysis and a 500 V Ar ion beam for sputtering were acquired using high energy resolution (0.1%) on and off of the defect. Linear least squared fitting software was used to isolate the Ni metal and Ni silicide spectra as well as the Si metal and silicide spectra. It can be noted that Ni silicide is found only at the interface and not in the Ni film or in the Si substrate at point 1, which is off of the defect. However, in the defect area at point 2 a complex multi-phase Ni silicide is observed throughout the defect in the Ni coating.

A Graph Showcasing Off Defect

Nanoscale Thin Film Analysis

A graph Showcasing On Defect

SmartSoft-AES

SmartSoft Platform
  • Intuitive, fully integrated, Windows™ software platform controls all instrument functions.
  • Session tabs guide you through the analysis process
  • Seamless interface to PHI MultiPak data reduction software

















MultiPak Data Reduction Software

Multiple Silicon Chemical State Image

Color overlay of elemental silicon (green), silicide (red) and silicon oxynitride (blue) images created using the Linear Least Squares fitting algorithm in MultiPak to extract multiple silicon chemical state images from the elemental silicon image.

 PHI MultiPak is the most comprehensive data reduction and interpretation software package available for electron spectroscopy. The tasks of spectral peak identification, quantification, extracting chemical state information, detection limit and image enhancement are addressed with an array of powerful and easy-to-use software tools for spectra, line scans, images and depth profiles.













PHI 710 Scanning Auger Nanoprobe

Features & Accessories

Standard Features

  • Cylindrical mirror analyzer (CMA)
  • Coaxial 25 kV field emission electron gun
  • Scintillation secondary electron detector
  • High energy resolution module
  • 5 axis automated sample stage
  • 5 kV floating column Ar+ ion gun
  • SmartSoft-Auger instrument control software
  • MultiPak data reduction software
  • Acoustic Enclosure
  • Ion pumped main chamber

Optional Accessories

  • In situ sample parking
  • In situ sample fracture apparatus
  • Sample transfer vessel
  • Intro camera
  • EDS Detector
  • EBSD Detector
  • BSE Detector
  • FIB gun



Download Data Sheet
