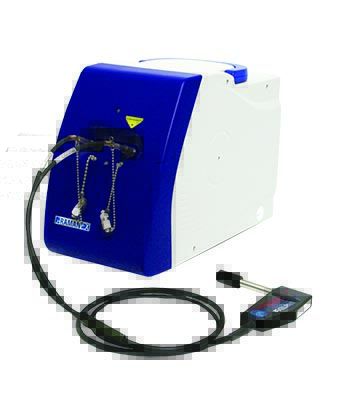

B&W Teki-Raman® EX 1064nm Fiber Optic Raman System

B&W Teki-Raman® EX 1064nm Fiber Optic Raman System

  • Comprehensive package of sampling accessories
  • State of the art BWIQ® multivariate analysis software package
  • Intuitive interface for analysis
  • Spectral data including exploratory
  • Qualitative, and quantitative analysis
  • It’s written in a step-by-step workflow for easy model development.






Description

BW Tek Raman EX 1064nm Fiber Optic Raman System
The i-Raman EX is an extension of our award winning i-Raman portable Raman spectrometer featuring a 1064nm version of our patented CleanLaze® excitation laser which minimizes the effect of fluorescence. Using a high sensitivity InGaAs array detector with deep TE cooling and high dynamic range, this portable Raman spectrometer delivers a high signal to noise ratio without inducing auto-fluorescence, making it possible to measure a wide range of biological samples. The i-Raman EX provides spectral resolution as fine as 9.5 cm-1 and a spectral coverage range from 100-2500 cm-1, enabling you to measure the entire fingerprint region. The system’s small footprint, lightweight design, and low power consumption provide research grade Raman capabilities anywhere. The i-Raman EX comes standard with a fiber optic probe, and can be used with an XYZ positioning stage probe holder, a cuvette holder, and our proprietary BWIQ multivariate analysis software. With the i-Raman EX, a high precision qualitative and quantitative Raman solution is at your fingertips.

Applications:

  • Forensic Analysis, Including Narcotics
  • Bioscience & Biomedical Diagnostics
  • Chemical Warfare Agent Detection
  • Pharmaceutical Material Analysis
  • Polymer & Chemical Analysis
  • Environmental Science
  • Explosives Detection
  • Petroleum Analysis
  • Natural Product Testing

Specifications

Lasers
1064nm Excitation >430mW at laser port (499 mW max)
Laser Power Control 0 to 100%
Spectrometer Range Resolution*
i-Raman-1064S-05 100 cm-1 – 2500cm-1 ~ 9.5cm-1 @ 1296nm
Detector
Detector Type TE Cooled InGaAs
Dynamic Range > 100,000:1
Digitization Resolution 16-bit or 65,535:1
Integration Time 200 μs to > 30 minutes
Pixel Number 512
Effective Pixel Size 25μm x 250μm
CCD Cooling Temperature -20°C
Electronics
Computer Interface USB 2.0 / 1.1
Trigger Yes (Compatible with B&W Tek Probes)
Power Options
DC Power Adaptor 12V DC @ 6.6 Amps
Battery Optional
Physical
Dimensions 6.7 x 13.4 x 11in (17 x 34 x 28 cm)
Weight 7.6 lbs (3.4kg)
*Typical Resolution Measured Using Pen Lamp Emission

COMPREHENSIVE:

Our comprehensive package of sampling accessories for measuring solid and liquid samples provide you the utmost utility right out of the box. QUANTITATIVE:

Our state of the art BWIQ® multivariate analysis software package provides an intuitive interface for analysis of spectral data including exploratory, qualitative, and quantitative analysis. It’s written in a step-by-step workflow for easy model development.
