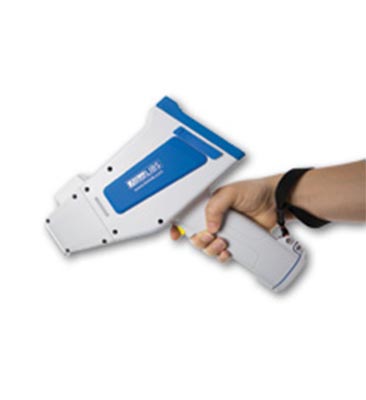

B&W Tek i-LIBS® Portable LIBS Analyzer

  • Battery Operation
  • High Accuracy and Precision
  • Quick Results (1-2 Seconds)
  • Touch Screen with Glove Operation
  • Detects All Elements



Request a Quote

Description

Portable Integration System Integration with In-house Capabilities. BW Tek Portable LIBS Analyzer Mobile Applications

Integrate into a portable system with battery operation under Linux, Android or Window OS. Custom-built solutions for identification or quantitative analysis of pure materials & mixtures with our patent-pending chemometric/calibration engine.

At the present time, this product is available only to certain selective or OEM customers for developing custom analyzers for mobile applications. As a total solution provider, B&W Tek is actively seeking strategic, channel and OEM partners to enable them to address their custom applications and vertical markets.

Intuitive Software – a user-friendly interface for both technical & non-technical users to make their job easier
Versatility – measure a variety of samples in a variety of environments with just one unit
Data Reproducibility – superior hardware ensures that results are consistent and reliable
Performance – robust multivariate algorithms guarantee accuracy when testing and identifying materials



Applications: Laboratory

  • Mineral Analysis & Identification
  • Nuclear – Radioactive Element Analysis
  • Petroleum & Lubricants Pharmaceutical – API ID & Tablet Analysis
  • Polymer Analysis – Plastic Recycling,
  • Flame Retardant ID
  • RoHS Compliance Safety & Security – Hazardous Materials ID

CPhI Pharma Awards Winner 2016R&D 100 Awards Winner 2016

State-of-the-Art Identification Software

The NanoLIBS comes standard with B&W Tek’s proprietary NanoLIBS OS software installed within the unit, which allows for identification and investigation, library and method development, and data storage/ transfer. The NanoLIBS ID software with a secure database, is designed for use on PCs for data and methods management, allowing customers to review data, generate reports, export data, and integrate to their LIMS system. The NanoLIBS ID and NanoLIBS OS software packages are 21CFR part 11 compliant with IQ/OQ documentation and services available for pharmaceutical customers.

Additionally, the NanoLIBS provides secure Wi-Fi and Ethernet synchronization capabilities with network terminals in order to optimize time and resources. NanoLIBS OS is capable of data and report transfers in order to centralize information (such as libraries, methods and final reports) in general servers.

Specifications

NanoLIBS
LOD (Element Dependent) 1ppm – 10,000ppm
Accuracy 5 – 15%
GUI Customize on Screen
Display Embedded Touch Pad or
External PC
Operation Point & Shoot or Mapping
Time to Result 1-2 Seconds (Typical)
PC Connection Wi-Fi/USB
Battery Life 4 – 8 Hours
Operating Temperature 0 – 40°C
Weight 7 – 12lbs
Dimensions (Approx) 8 x 11 x 12 inches
*Subject to Change



















B&W Tek NanoLIBS

BW Tek Portable LIBS Analyzer Mobile Applications



Download Data Sheet
