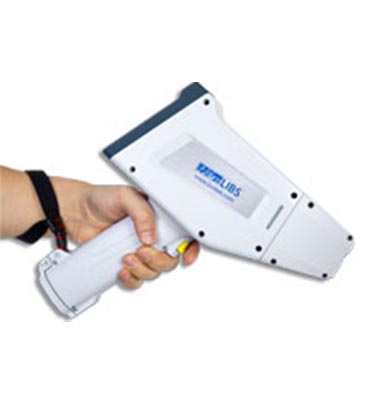

B&W Tek NanoLIBS®-Q Handheld LIBS Analyzer for Quantitative Measurements

B&W Tek NanoLIBS®-Q Handheld LIBS Analyzer for Quantitative Measurements

  • Lightweight, Handheld
  • Light Element Detection
  • Safe (No X-Ray Exposure)
  • Rastering Beam
  • Point and Shoot
  • Battery Life > 4 hours
  • Quick Results (1-2 Seconds)
  • High Brightness Touch Screen
  • Custom Calibrations to Meet SpecificAnalysis Needs






Description

The NanoLIBS-Q is a handheld LIBS analyzer which is customized to give quantitative measurements of elements for your samples. Chemical composition based on elemental analysis is measured on material where you need, without the need to take samples to a lab for lengthy preparation and analysis. The system delivers accurate results with calibrations developed for your application such as the Li content in batteries, the metal in alloys, the composition of catalysts, minerals or ceramics. With the NanoLIBS-Q you can quickly check the quality of your incoming materials or your products at the production line, ensuring product quality from start to finish. The rugged, IP54- rated system is designed to work in many environments. It gives you the capability to rapidly measure the composition of samples in the field. With its broad spectral range, you can detect the most elements, including the light elements Li, Be, C. The lightweight NanoLIBS-Q features a high brightness touch screen with an intuitive workflow. The point and shoot operation is used to measure samples directly with results displayed within seconds. The system features a rastering beam to sample an area of ~ 300 μm.

Intuitive Software – a user-friendly interface for both technical & non-technical users to make their job easier
Versatility – measure a variety of samples in a variety of environments with little to no sample preparation
Data Reproducibility – superior hardware ensures that results are consistent and reliable
Performance – robust multivariate algorithms guarantee accuracy when testing and identifying materials

Applications:

  • Catalyst and Battery Testing
  • Chemistry
  • Conservation
  • Electronics
  • Environment
  • Food Safety & Quality
  • Geology
  • Glass
  • Medical Diagnostics
  • Nuclear
  • Petroleum & Lubricants
  • Polymer Analysis
  • RoHS Compliance
  • Safety & Security.

Specifications

Excitation Wavelength 1064 nm
Laser Safety Class 3B
Spectral Range UV – VIS – NIR
Display 3.7” color touchscreen; glove operable
Software NanoLIBS QOS (embedded)
Data Formats .txt, .csv, USB data storage and transfer
Battery Rechargeable Li-ion, >4 hrs operation
AC Adapter Output: DC 12 V, 2A minimum
Weight (including battery) 3.9 lbs (1.8 kg)
Size 10.4 in x 3.9 in x 12 in
(265 mm x 10 mm x 304 mm)
Operating Temperature 0 – 40°C
Storage Temperature -30°C to +60°C
System Protection IP54



















Advanced MicroLIBS Laser

Superior Performance

Match box size with powerful and fast multi-GW/cm2 plasma generation at an extremely high repetition rate.

Handheld Integration

Handheld system with battery operation under Linux OS

Compact Spectrometer

Miniature CCD Array Spectrometer with on-board data processing

Capable of multiplexing and real time spectroscopy

Chemometrics/Methods/Calibration/Applications

In-house Applications Team

Custom-built solutions for identification or quantitative analysis of pure materials & mixtures with our patent-pending chemometric/calibration engine.
